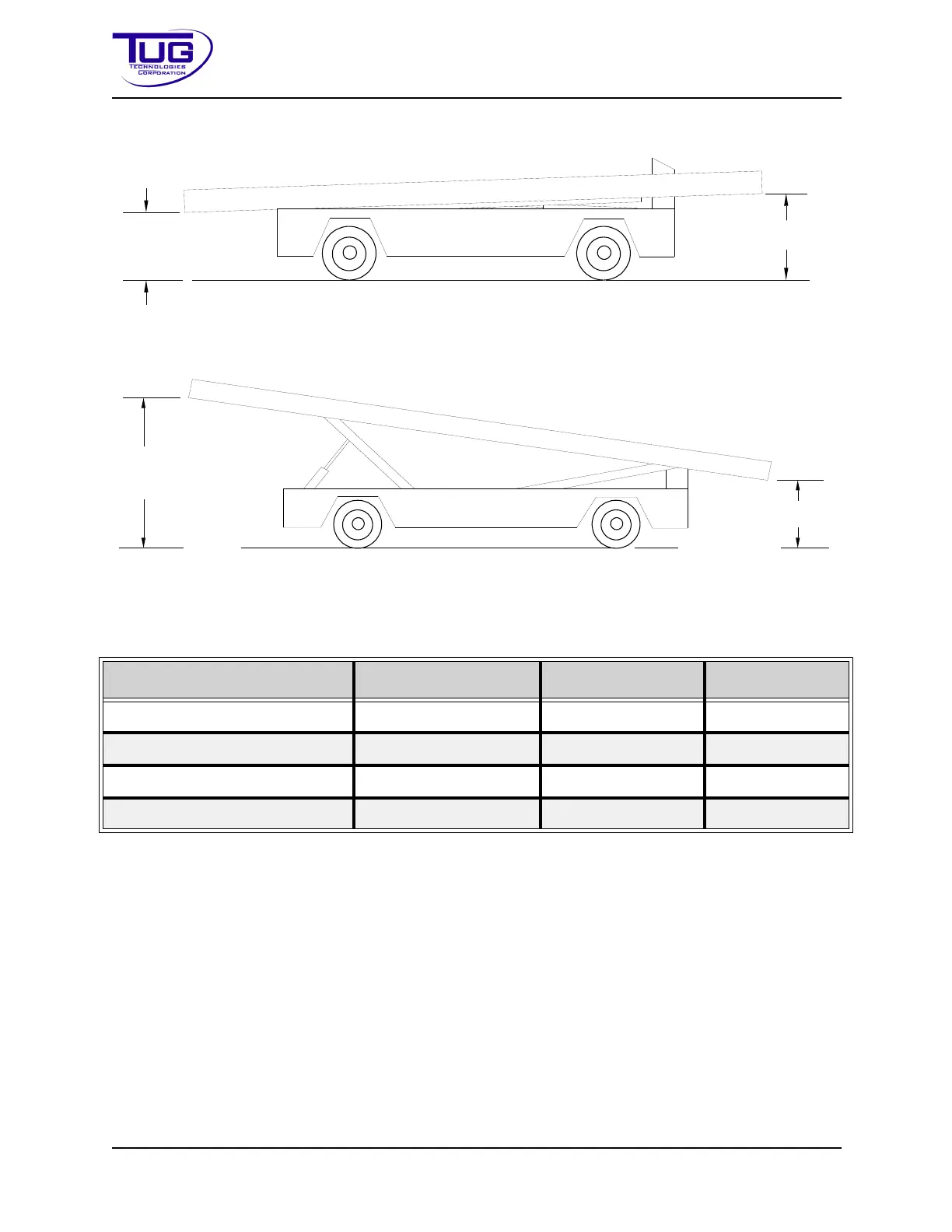

TUG Technologies 660 - Compatible Aircraft; Figure Operation - 3 - 8: Conveyor - Full Down Rear, Full Down Front; Figure Operation - 3 - 9: Conveyor - Full Up Rear, Full Down Front; Table Operation-3-10: Conveyor Positions

Mobile Belt Loader Model 660 Operation
Operation Manual
Operation - 3 - 38 CD397-Oper
FigureOperation-3-8:Conveyor-FullDownRear,FullDownFront
FigureOperation-3-9:Conveyor-FullUpRear ,FullDownFront
3.7CompatibleAircraft
Table Operation-3-11, “Aircraft Compatibility,” provides a list by aircraft manufacturers and mod-
els showing the front and rear cargo door heights with an additional 30 in. (76.2 cm) conveyor
height above the door sill to allow for ease of loading and unloading of cargo. The rear of the con-
veyor is set at 30 in. (76.2 cm) above ground level.
The listed aircraft are compatible with the Mobile Belt Loader Model 660. The height measure-
ments are from the IATA Airport Handling Manual (AHM) 904 “Aircraft Doors, Servicing Points
and System Requirements for the Use of Ground Support Equipment.”
TableOperation-3-10:ConveyorPositions
ConveyorAttitude Front Rear Angle
Front Up, Rear Down 170 in. (431.8 cm) 13 in. (33.02 cm) 35°
Front Up, Rear Up 168 in. (426.72 cm) 37 in. (93.98 cm) 27°
Front Down, Rear Down 40 in. (101.6 cm) 36 in. (91.44 cm) 1°
Front Down, Rear Up 31 in. (78.74 cm) 61 in. (154.94 cm) -6°
36"
(91.4 cm)
40"
(101.6 cm)
61"
(154.9 cm)
31"
(78.7 cm)
