Electrical belt drive controls may be located at any combination of the conveyor's four corners.
On the Ford 2.5L, the conveyor hand throttle controls engine speed while in neutral. Turn the
knob counterclockwise and the engine will speed up. Depress the hand throttle knob and the
engine will return to idle.
On the Duetz, the conveyor speed control is located on the instrument panel. Push buttons con-
trol the conveyor speed (see callout #2 on Figure Operation - 2 - 2), while in neutral. Push the
button with the arrow pointing up to increase engine speed or push the button with the arrow
pointing down to return to idle.

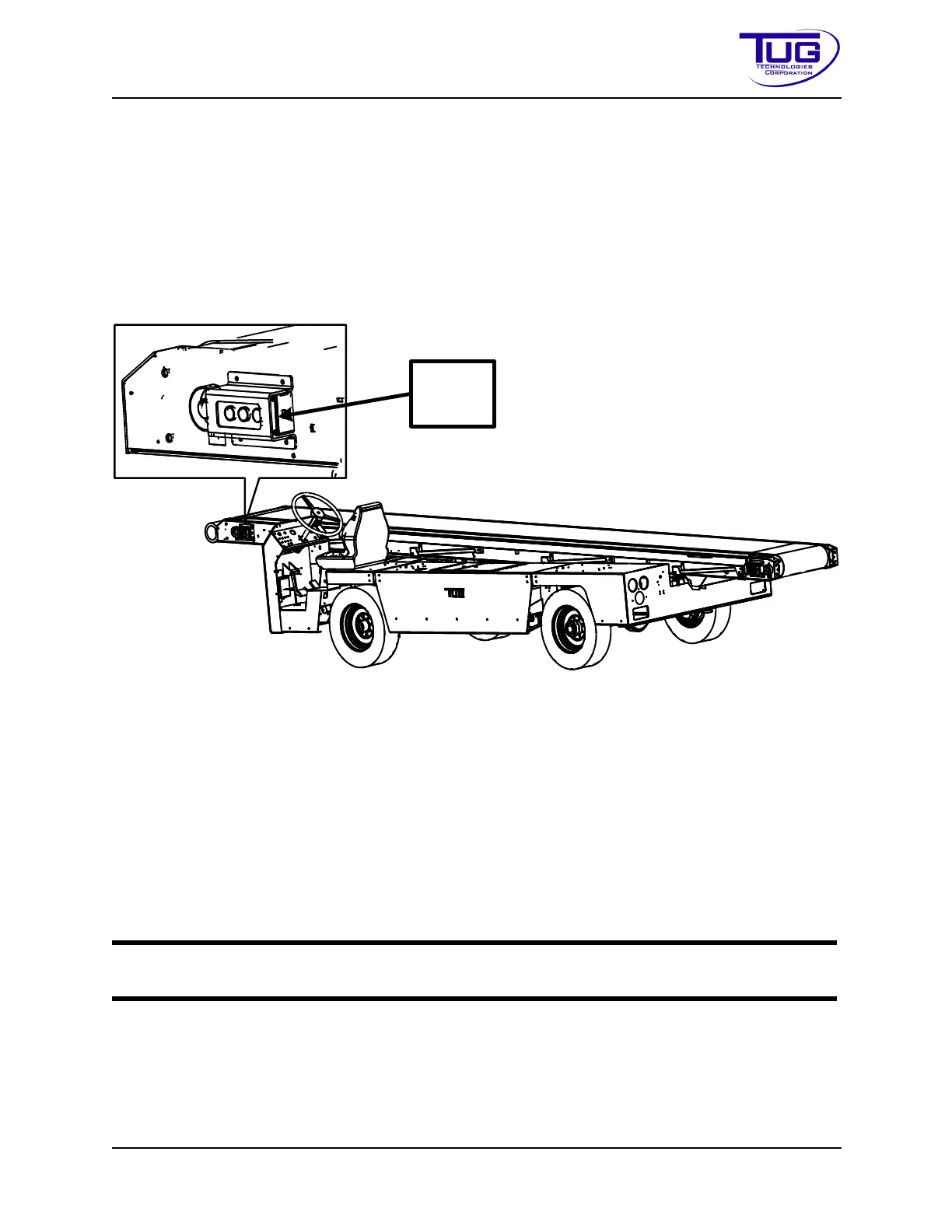

FigureOperation-2-4ConveyorControls
Control relays for the electrical conveyor belt drive solenoid control valves are located on the
conveyor frame.
2.1.5ElectricalSupply
The main electrical supply panel is located
• Ford: below the instrument panel
• Deutz: in the battery compartment.
2.1.6PreliminaryChecks
Procedures for preliminary checks before maneuvering the vehicle to an aircraft shall include (but
may not be limited to) the following items:
NOTE:
See the electrical schematics in the Maintenance Manual for description of electri-
cal components.
Conveyor
Belt Drive
Controls
