Mobile Belt Loader Model 660 Operation
Operation Manual
Operation - 2 - 14 CD397-Oper

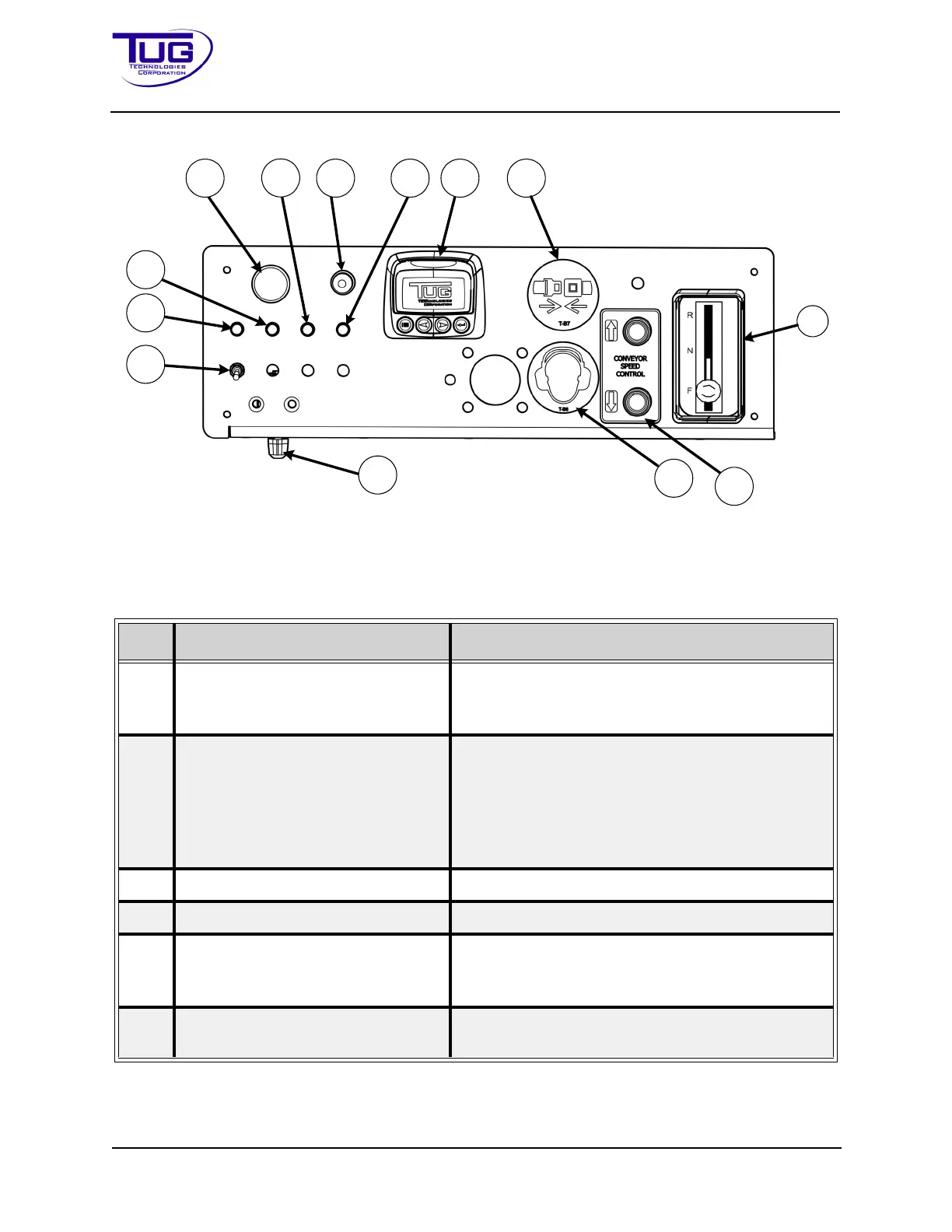

FigureOperation-2-2InstrumentPanel-Deutz2.9L
TableOperation-2-2InstrumentPanelDescription-Deutz2.9L
No. Name Description
1 Shifter This is the main drive control for forward or
reverse direction. The shifter is labeled:
F=Foward, R=Reverse, and N=Neutral.
2 Converter Speed Control These buttons control the engine speed only
while the belt loader is in neutral and the parking
brake is applied. Press the button closest to the
UP arrow: engine RPMs and belt speed
increases. Press the DOWN arrow: engine
RPMs and belt speed decreases.
3 Hearing Protection Decal Always wear hearing protection.
4 Ignition Switch Turn this switch to start or turn off the engine.
5 Headlight Switch This switch turns the headlights on or off. Flip
switch up to turn lights ON and down to turn
lights OFF.
6 Warning Light This warning light illuminates when headlights
are on.
