7.3.14 Commissioning TBEN-L...-PLC-... parallel as EtherNet/IP™ Scanner and Slave (Device)
If the device is used simultaneously as both a EtherNet/IP™ Scanner and a EtherNet/IP™ Slave
(Device), a second Ethernet interface must be added to the device. The assignment of the Eth-
ernet ports in CODESYS is as follows:
Ethernet interface in CODESYS Function
eth0 Ethernet/IP™ Slave (Device)
eth1 EtherNet/IP™ Scanner
Adding and configuring the second Ethernet interface
Configuring the Ethernet/IP™ Scanner
ü The Ethernet interface eth1 is configured as described under "Configuring the Ethernet in-
terfaces" [}35].
ü The EtherNet/IP Scanner from 3S - Smart Software Solutions GmbH is used.
 Add the EtherNet/IP™ Scanner to Ethernet using the Add Device function and configure
it.

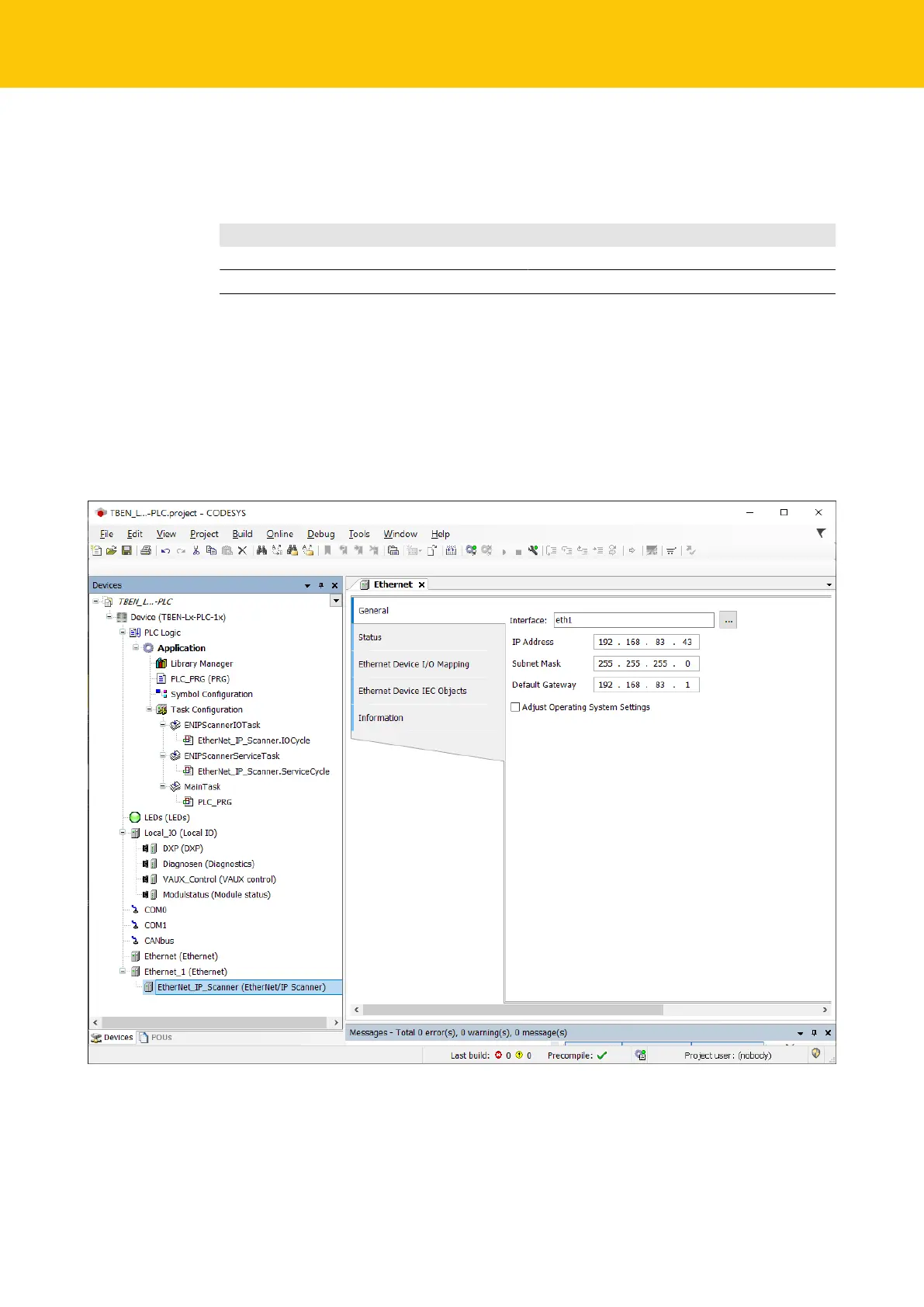

Fig.68: Ethernet/IP™ Scanner at eth1
