Commissioning
Commissioning TBEN-L…PLC-… as Cloud gateway
84
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com

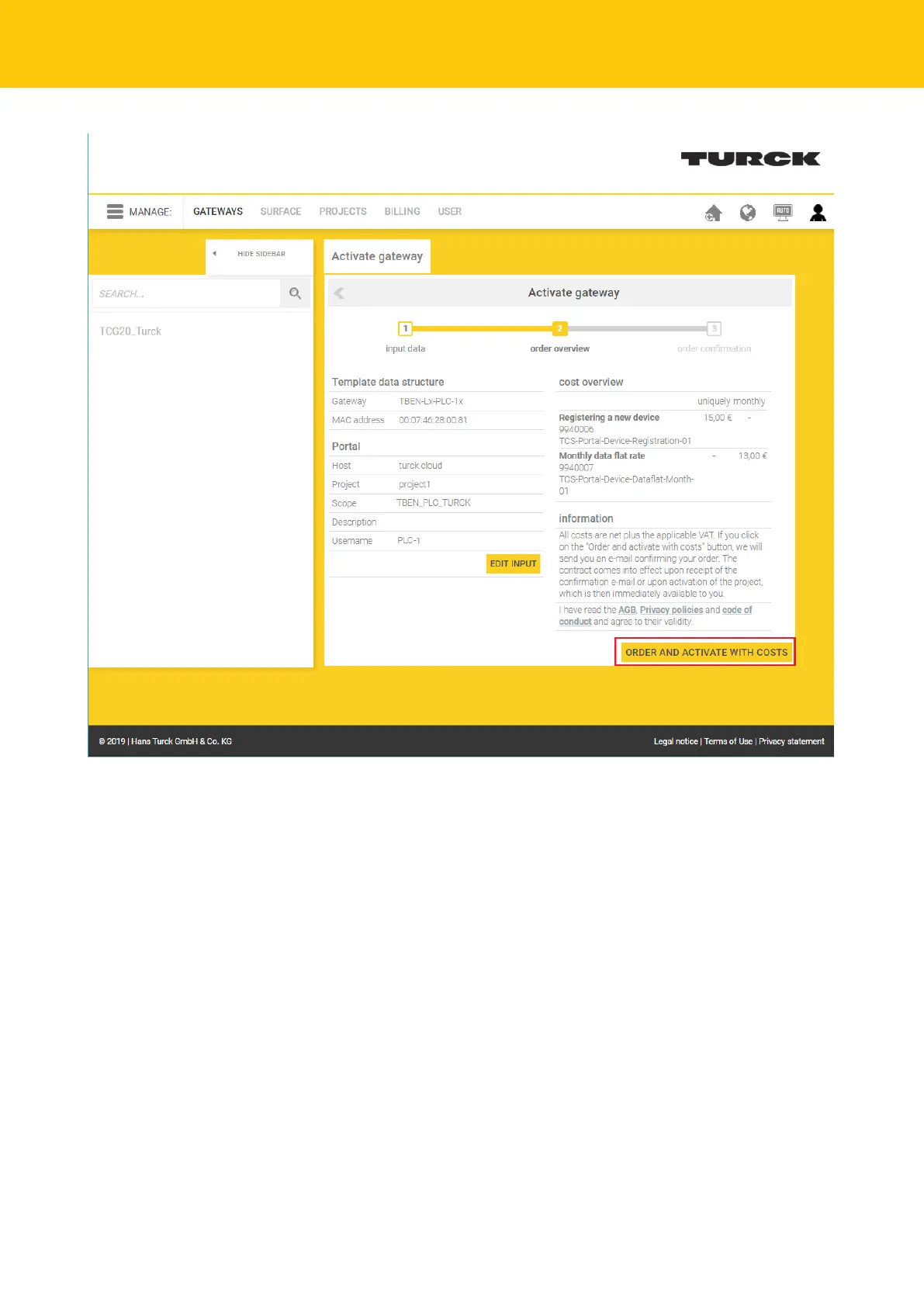

Fig.88: Turck Cloud Portal – order and activate Gateway with costs
a
After the project has been created, the specified project responsible receives an e-mail as
order and order confirmation. The e-mail also contains a link to the project URL.
