Compression damping force adjustment
The compression damping force adjustment is
provided only in the right leg.
• To increase the compression damping force, turn
the adjuster screw in clockwise and to reduce
the compression damping force, turn the adjuster
screw in anti-clockwise as shown in the figure
(ref. Fig. 43).
- During the adjustment count the numbers of
clicks from fully closed (clockwise) position.
Rebound damping force adjustment
The rebound damping force adjustment is provided
only in the left leg.
• To increase the rebound damping force, turn
the adjuster screw in clockwise and to reduce
the rebound damping force, turn the adjuster
screw in anti-clockwise as shown in the figure
(ref. Fig. 44).
- During adjustment count the numbers of
clicks from fully closed (clockwise) position.

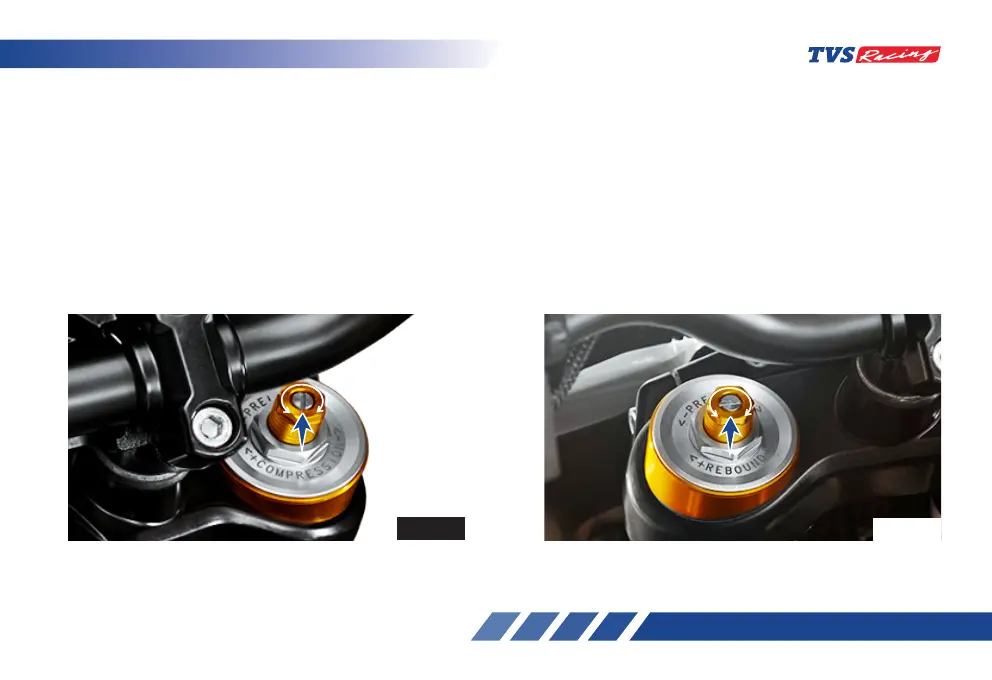

Fig. 43
Fig. 44
