3-1. DISASSEMBLY
Separate the spacer transmission and the rear transmission from each other and then remove the
hydraulic cylinder case. referring to paragraph 5 of SECTION 4. SEPARATION OF MAJOR
COMPONENTS in Chapter 2.

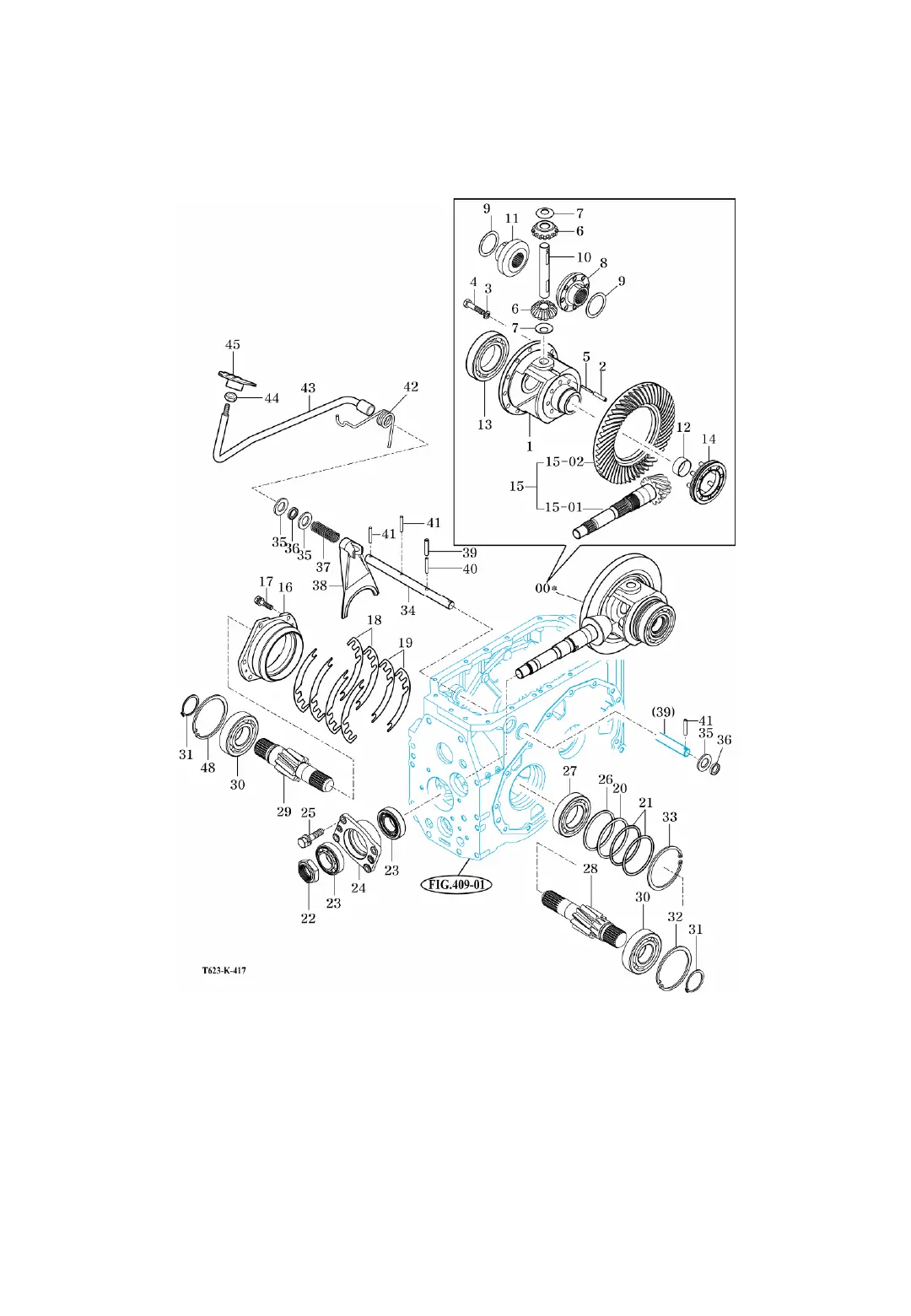

(1) Ring gear, Drive pinion, and related parts.
5-30
1.Diff case 2. Spring pin 4.Bolt 5.Spring pin 6.Diff pinion
7.liner 8.Bevel gear 9. Thrust collar 10.Shaft, diff pinion 11. Bevel gear
13. Ball bearing 14. Diff lock clutch 15. Bevel (11-48) 16. Metal Diff case (R)
17. Bolt 18.19. Shim 20.21.Shim 22.Nut 23.TRB
24.Metal pinion 25.Bolts 28.Wheel pinion (LH) 29.Wheel pinion (RH)
30.Ball bearing(HL1) 32.Snap ring 35.Collar 36.Oil seal 37.Spring
38.Diff-lock metal 39. Shaft 40.41. Spring pin 42. Spring 43. Diff-lock pedal
44. Nut
*
Fig.5-54
