1.PTO shifter stay 4.PTO shifter
8.Arm 19.Change arm
a. Remove the rear hitch to the top link
b. Remove the change arm(19)
c. Remove the PTO shifter stay(1) rearwards and take out the PTO shifter(4)
d. Be alert to the steel ball which mat spring out of the shifter.
e. Pull out the snap ring(24) and related parts rearwards’
f. Remove the PTO shaft(2, 17), the gears and related parts.
5-32

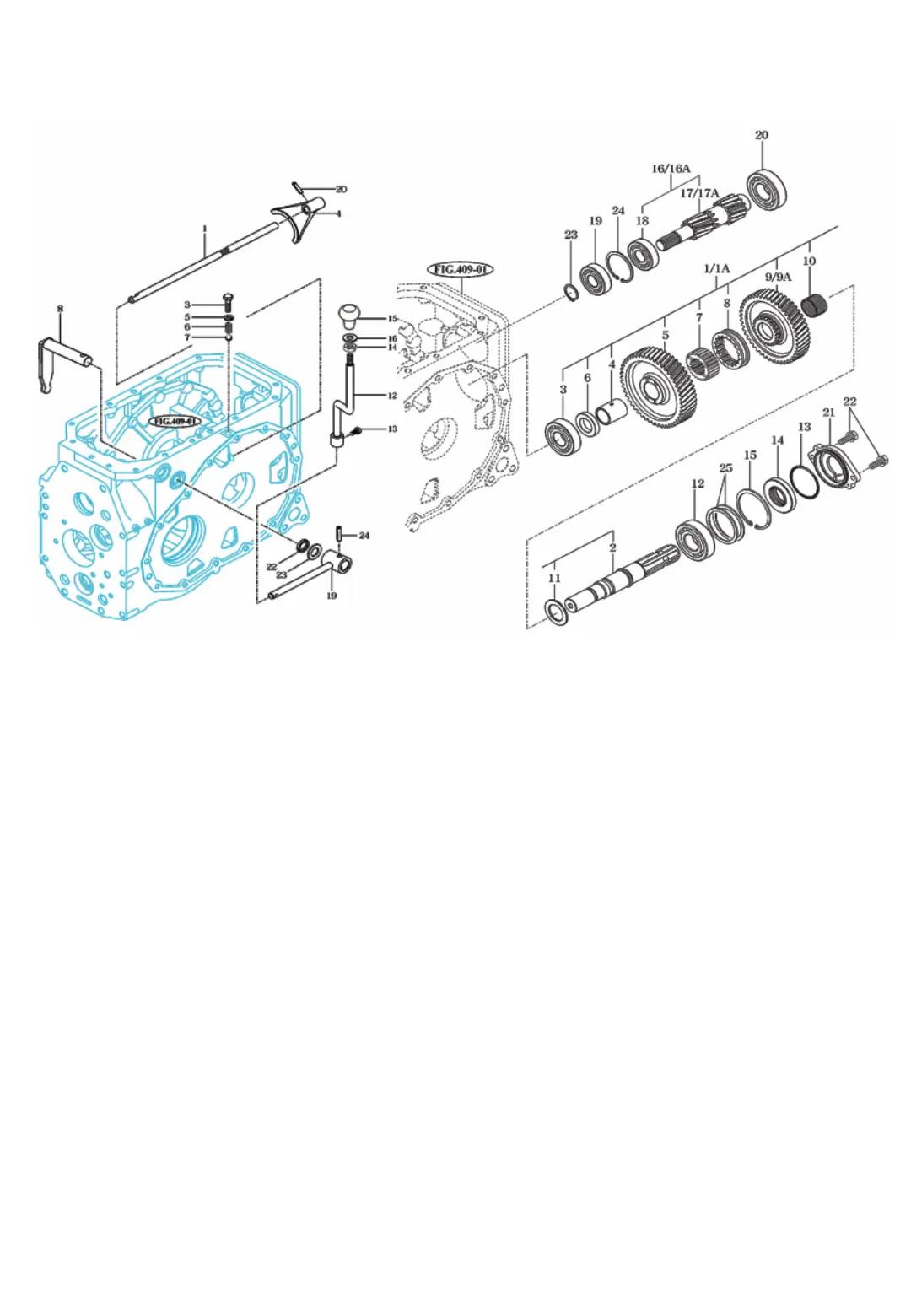

Fig.5-59
(2) PTO shaft and related parts.
PTO Shift
PTO gears
2.PTO shaft 17.Drive shaft(H/15-12)
5.Gear (helical/48) 9. Gear(helical/45)
To Next Page
