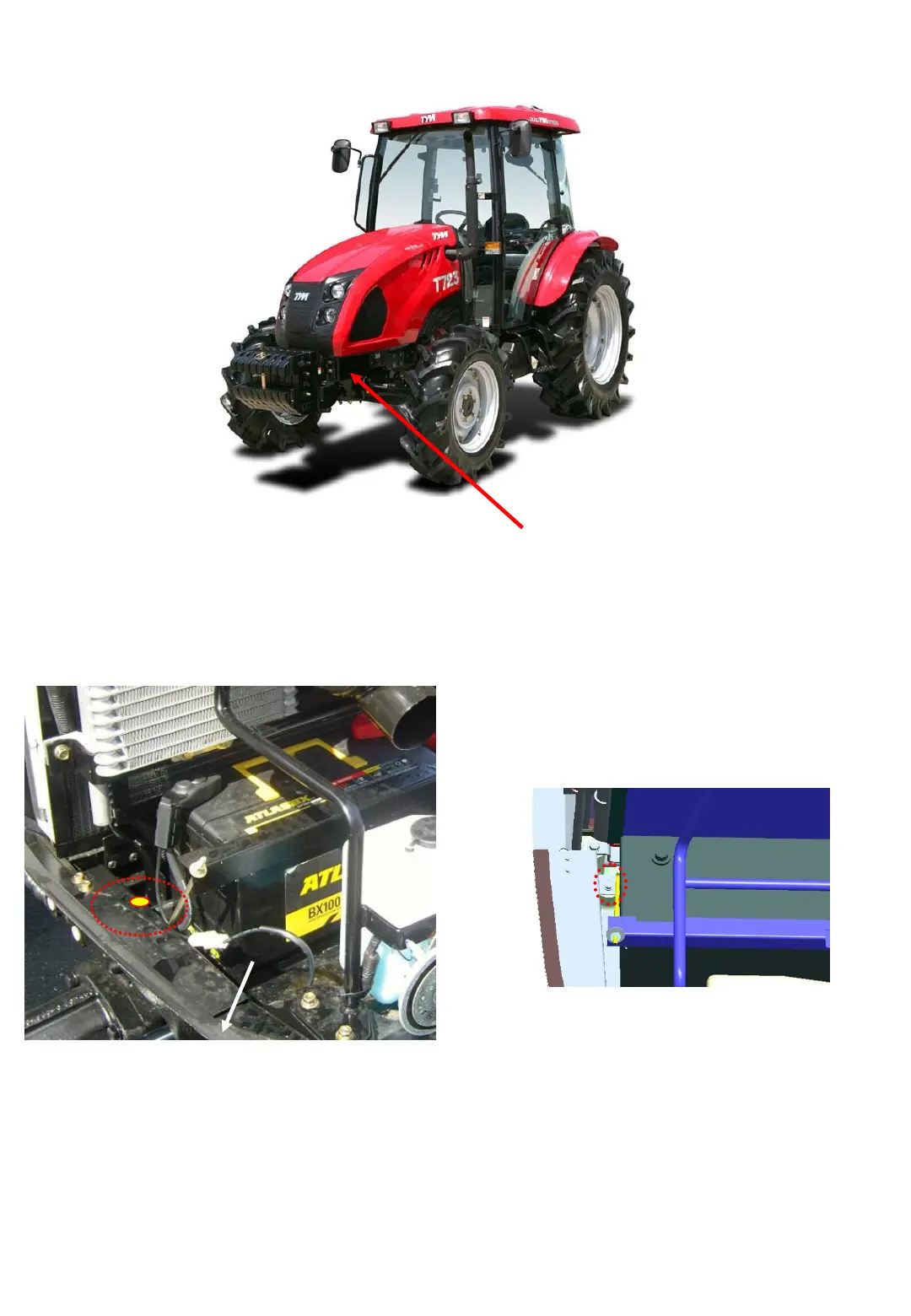

SECTION 5. EARTHING (GROUNDING) POINT
10-11
1) Front axle bracket (RH)
Earthed at upper tapped
hole in the axle bracket.
2) Contact surfaces of the axle bra
cket and engine
where they tightened together
Fig.10-25
Fig.10-24
1.Front axle bracket (RH)
211
213
Table of Contents
Chapter 2 Disassembly and Reassembly of Major Components
29
Table of Contents
29
Before Operation
30
Precautions to be Followed When Installing Standardized Parts
30
Section 2. Operation Chart for Disassembly
33
And Reassembly by Major Blocks
33
Section 3. Separation of Major Components
34
Separation of the Engine and Front Axle Bracket
35
Separation of the Engine and Front Transmission
36
Separation of the Front Transmission and Spacer Transmission
41
Separation of the Spacer Transmission and Rear Transmission
46
Separation of the Rear Transmission and Rear Axle Housing
47
Separation of the Rear Transmission and Cylinder Case
48
Chapter 3 Engine Accessories
49
Inspection of each Part
52
Radiator
52
Removal of the Radiator
52
Specifications
52
Daily Inspection
54
Radiator Reassembly
54
Trouble Shooting
55
Section 2. Air Cleaner System
56
General Description
56
Element Air-Cleaner
57
Inspection of each Part
58
Cleaning the Air Cleaner
58
Element Installation
59
Chapter 4 Clutch System
60
Section 1. General Description
61
Section 2. Specifications
62
Section 3. Disassembly,Inspection,And Reassembly
63
Main Clutch
63
Clutch Shaft and Related Parts
65
Final Adjustment of the Clutch Pedal
66
Chapter 5 Transmission
70
Section 4. Troubleshooting
70
Section 1.General Description
71
Power Train Diagrams
71
PTO Drive System
71
Wheel Driving System
71
Speed Shift Patterns and Gear Train Diagrams
72
Construction and Function of Synchromesh Mechanism
76
Section 2. Specifications
78
Wheel Drive System
78
PTO Drive System
78
Section 3.Disassembly,Inspection,And Reassembly
79
Input Shaft and Reverse Change Gear(Front Transmission)
79
PTO Clutch
86
Main Change,Sub-Change,And 4WD Change Gears
89
Rear Transmission
99
Shifters and Related Parts
108
Section 4. Troubleshooting
118
Wheel Drive System
118
PTO Drive System
119
Power Train Diagrams
120
Section 5
121
Chapter 6 Front Axle(4WD)
122
Section 1.General Description
122
Section 2. Specifications
123
Section 3.Disassembly,Inspection,And Reassembly
124
Center Pivot
124
Disassembly
125
Inspection
125
Reassembly
125
Front Differential
127
Disassembly
128
Inspection
128
Reassembly
129
Final Case
131
Inspection
133
Reassembly
134
Section 4.Trouble Shooting
136
Section 6
137
Chapter 7
138
Section 1.General Description
138
Section 2. Specifications
139
Section 3.Disassembly,Inspection,And Reassembly
140
Rear Axle Housing and Brake System
140
Disassembly
141
Inspection
141
Reassembly
142
Section 4.Trouble Shooting
144
Chapter 8 Power Assisted Steering System
145
Section 1.General Description
146
Section 2. Specifications
147
Gear Pump
147
Oil Tank
147
Section 3. Function
148
Open Center Non Load Reaction
148
Section 4.Disassembly,Inspection,And Reassembly
152
Special Tools
153
Disassembly
153
Section 5. Troubleshooting
158
Chapter 9 Hydraulic System
161
Section 1. General Description
162
Section 2.Specifications
164
Section 3. Disassembly and Adjustment
165
Hydraulic System
165
Disassembly
166
Reassembly
167
General Precautions
167
Reassembly Steps
169
Adjustment of the Link Mechanism
171
System
172
Main Control Valve
172
Flow-Divider
179
Pressure Control Valve
182
Flow Control Valve
185
Safety Valve
187
Relief Valve
187
Gear Pump
189
Filter
194
SECTION 5.Remote Hydraulic Control (Optional)
195
General Description
195
Functions
195
Specifications
196
Section 6. Troubleshooting
197
Chapter 10 Electrical Accessory and Instruments
201
Section 1. General Description
202
Section 2. Specifications
202
Section 3. Battery
203
Inspection
203
Inspection of Electrolyte Level
203
Inspection of Electrolyte Specific Gravity
203
Battery Testing Chart
204
SECTION 4. Meters and Switches
206
Meters
206
Removal
206
Tacho/Hour Meter
206
Fuel Gauge and Fuel Gauge Sensor
206
Thermometer
207
Starter Switch
207
Combination Switch
208
Stop Light Switch
209
Relay Unit
209
Fuse
209
Section 7. Troubleshooting
214
Chapter 11. Service Standards and Other Information
219
Engine Accessories
220
Section 1. Service Standards
220
Main Clutch
221
Transmission
222
Hydraulic System
225
Power Steering System
225
Rear Axle
225
Electrical Equipment
228
Chapter 12. Cabin
231
Section 1.General Description
232
Section 2.Precautions for Cabin Operation
233
Section 3. Controls
235
Section 4.Heating System
237
Section 5. Air Conditioning System
246
Section 6. Cabin Wiring Instruction Diagram
248
Section 7. Cabin Wiring Diagram
249
