10-10
8.Trailer socket
A hella’s 7-pin trailer socket is equipped as a standard equipment.Lamp on a trailer can be operated
through the socket.
Note:
Lamp on the trailer should be of the same size or smaller than those on the trailer.

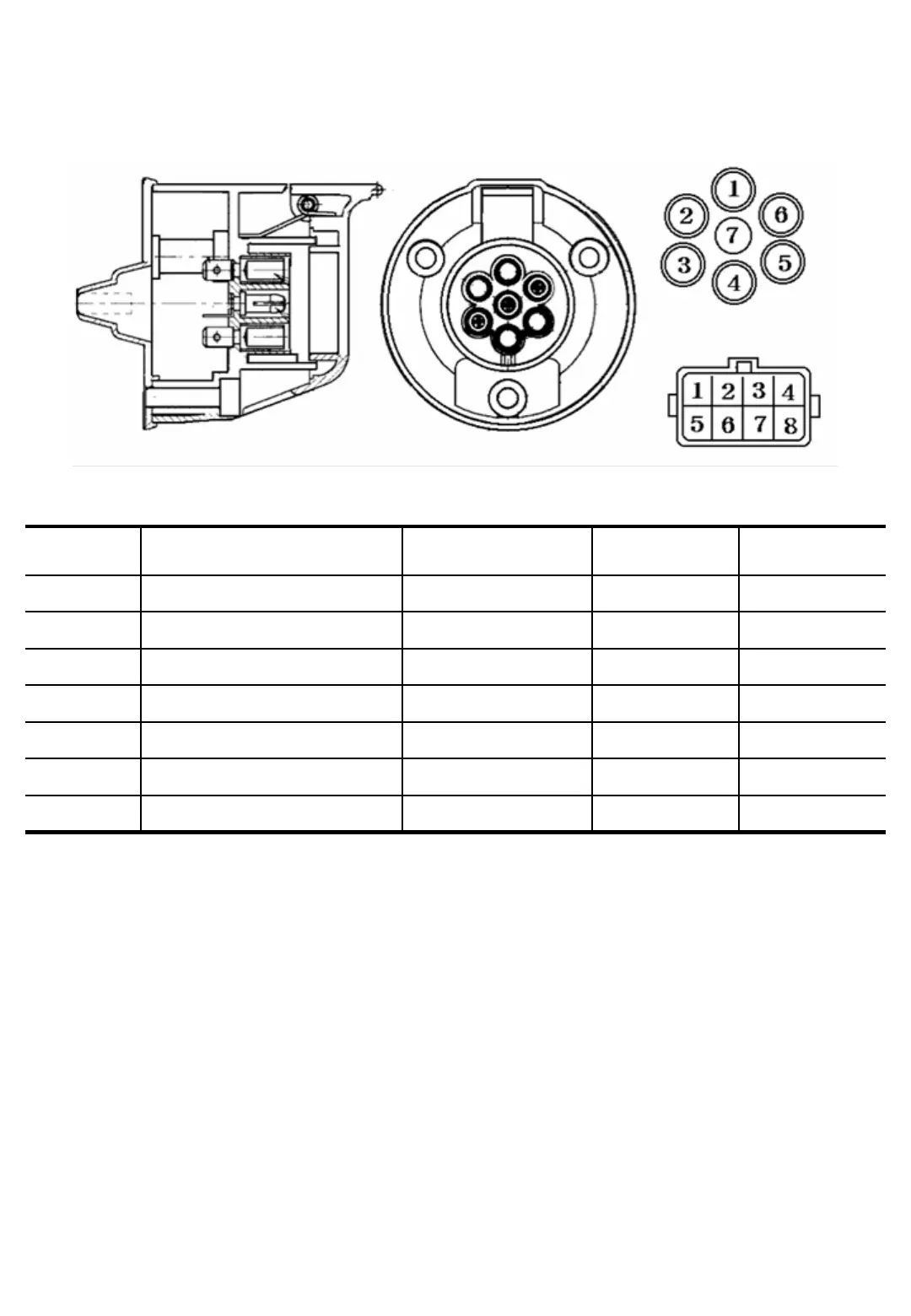

Fig.10-23
Socket No. Description Color Specification Wire Housing
1 Turn signal (LH) GB AVSS 0.85 5
2 Reserve light (Fog light) WG AVSS 0.85 7
3 Earth B AVSS 0.85 1
4 Turn signal (RH) GY AVSS 0.85 3
5 Parking light (RH) YW AVSS 0.85 2
6 Stop Light WL AVSS 0.85 4
7 Parking light (LH) Y AVSS 0.85 6
