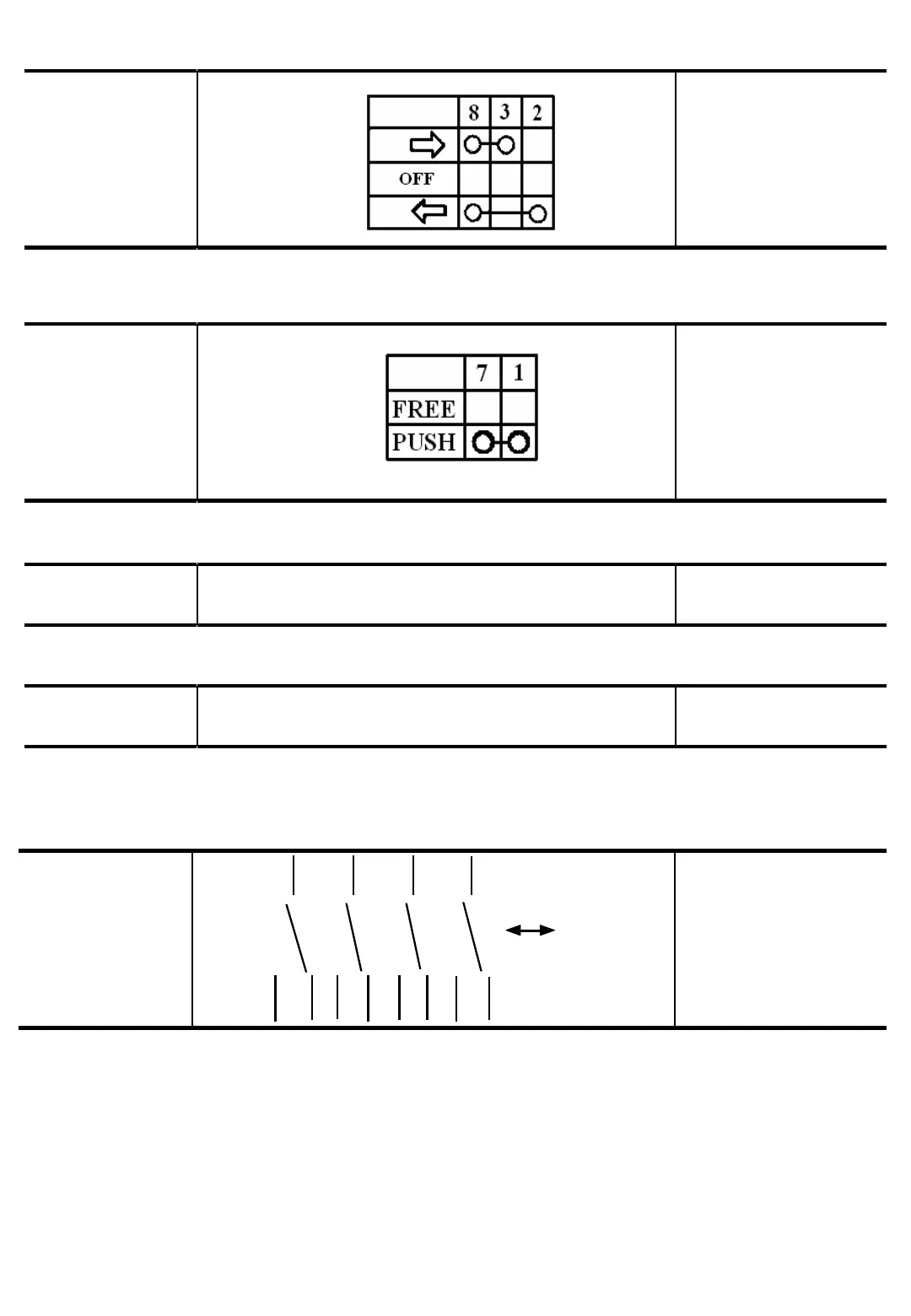

11-10
(3) Turn signal switch
Turn signal
switch
Replace a defective
switch assembly.
(4) Horn switch
Horn switch
Replace a defective
switch assembly.
(5) PTO SWITCH
Continuity across
each terminal
Switched on when lever is moved by about 3 mm
(0.12 in) across R and LR
Replace a defective
switch assembly.
(6) STOP LIGHT SWITCH
Continuity across
each terminal
Switched on when actuator is pushed in by
about 3 mm(0.12 in)assembly
Replace a defective
switch assembly.
(9) HAZARD WARNING SWITCH
Continuity across
each terminal
Replace a defective
switch assembly.
○○
○○○○
○○
ON
11
10 9 7 6 4 3 1
2
5
811
OFF
