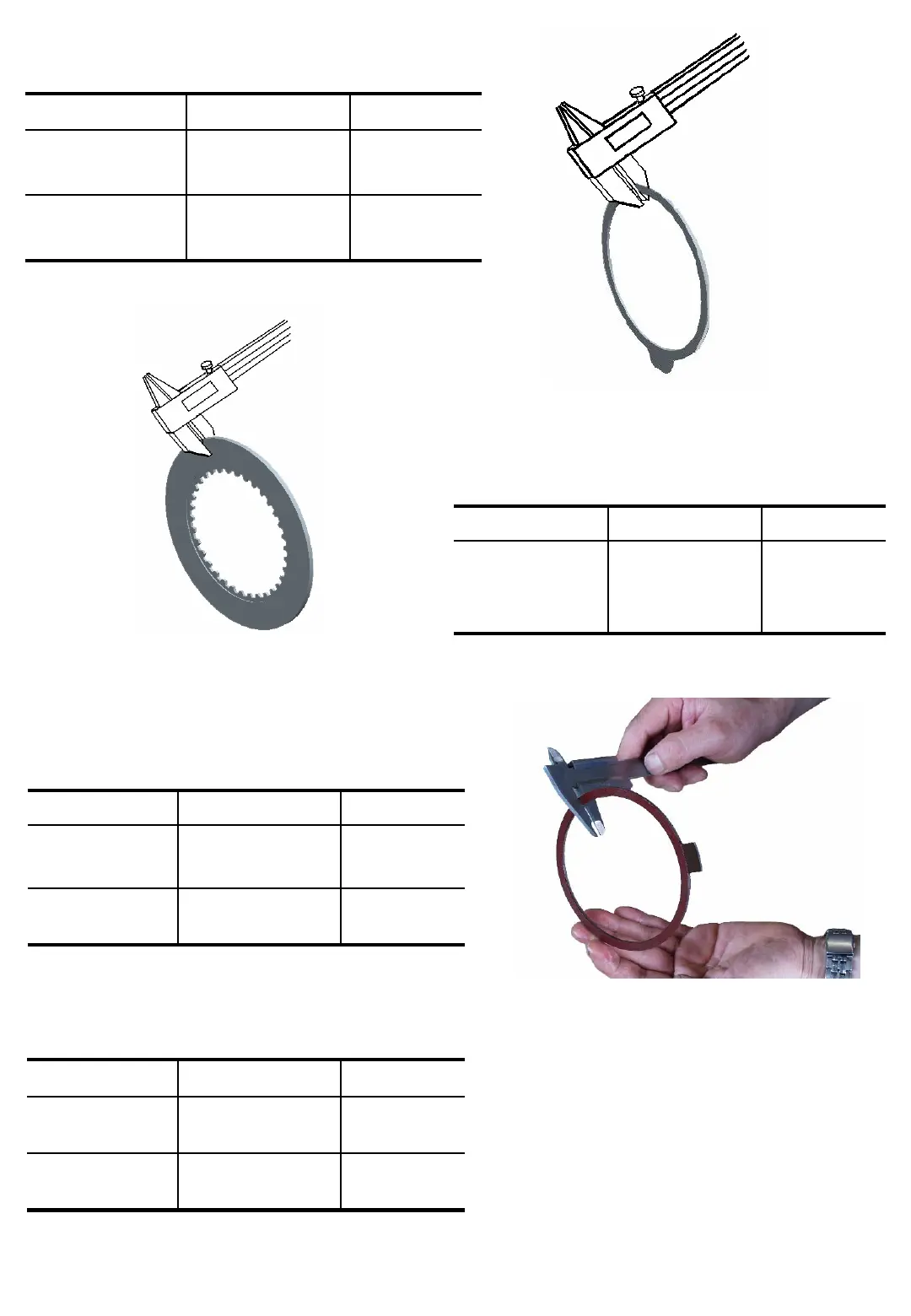

-Inspection for disc thickness and serration wear.
Inspection Items Specified values Usable limit
Disc thickness 2.6±0.1mm
(0.102 in)(7pcs)
2.4mm
(0.094 in)
Surface flatness - 0.2mm
(0.008 in)
c. Driven plate
-Inspection for deformation and burning.
-A seriously damaged or worn disc should be
replaced.
Inspection Items Specified Values Usable limit
Plate thickness 1.6 ±0.05 mm
(6pcs)
1.5mm
(0.059 in)
Surface flatness 0.15mm
(0.006 in)
d. Brake disc
-Inspection for deformation and burning.
-A seriously damaged or worn disc should be replaced.
Inspection Items Specified values Usable limit
Disc thickness 3±0.1mm(0.118 in) 2.7 mm
(0.11 in)
Surface flatness - 0.2mm
(0.007 in)
e. If the combined thickness of the return
plate and brake disc deviates from the
specified value, replace both parts.
Inspection Items Specified values Usable limit
Combined
thickness of return
plate and brake
disc
5.5 ±0.16mm
(0.217 in)
5.1mm
(0.2 in)
f. Also inspect other parts for wear and
deformation and replace them if necessary
Note : Seal ring and the two seal rings should be
replaced as a pair
5-17
Fig.5-35
Fig.5-36
Fig.5-34
