Reassemble the parts in reverse order of
disassembly,following these instructions.
Note:
-Each parts should be washed clean before
reassembly.
-Apply multi-purpose, quality grease to needle
bearings in advance.
-Each bolt and nut should be tightened to the
respective specified torque table.
-Every time a gear is installed, its smooth rotation
should be checked.
-Every snap ring should be seated securely in its
groove.
a. When installing seal rings, apply fresh oil
ahead of time and install them carefully so as
not to damage them.
b. Install the return plate with the press-processed
side turn towards the brake disc.
① Return plate ②Brake Disc
c. When installing the return spring, use a special
tool; the snap ring should be securely seated
in the groove.
d.When pushing the BRG’s (6205 and 6005) into
the gear,be careful only to push their outer races.
e. Install the snap ring in correct direction.
f. After reassembly, check to see that gear
turns smoothly by locking the PTO clutch
2.3 REASSEMBLY
5-18

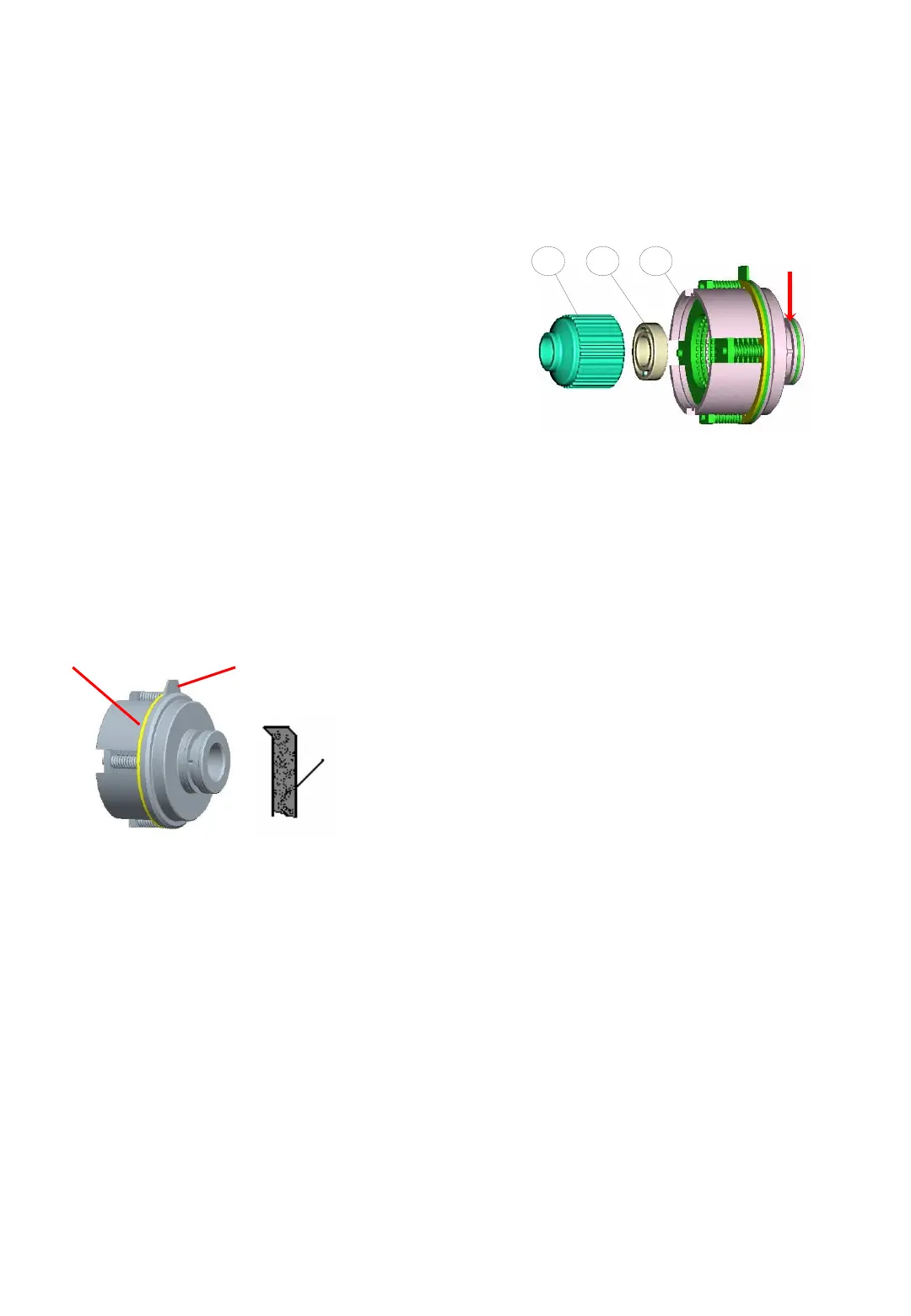

Fig.5-37
123
① PTO clutch assembly
② Ball bearing(6005)
③ PTO hub
Fig.5-38
①
②
Press broken side
