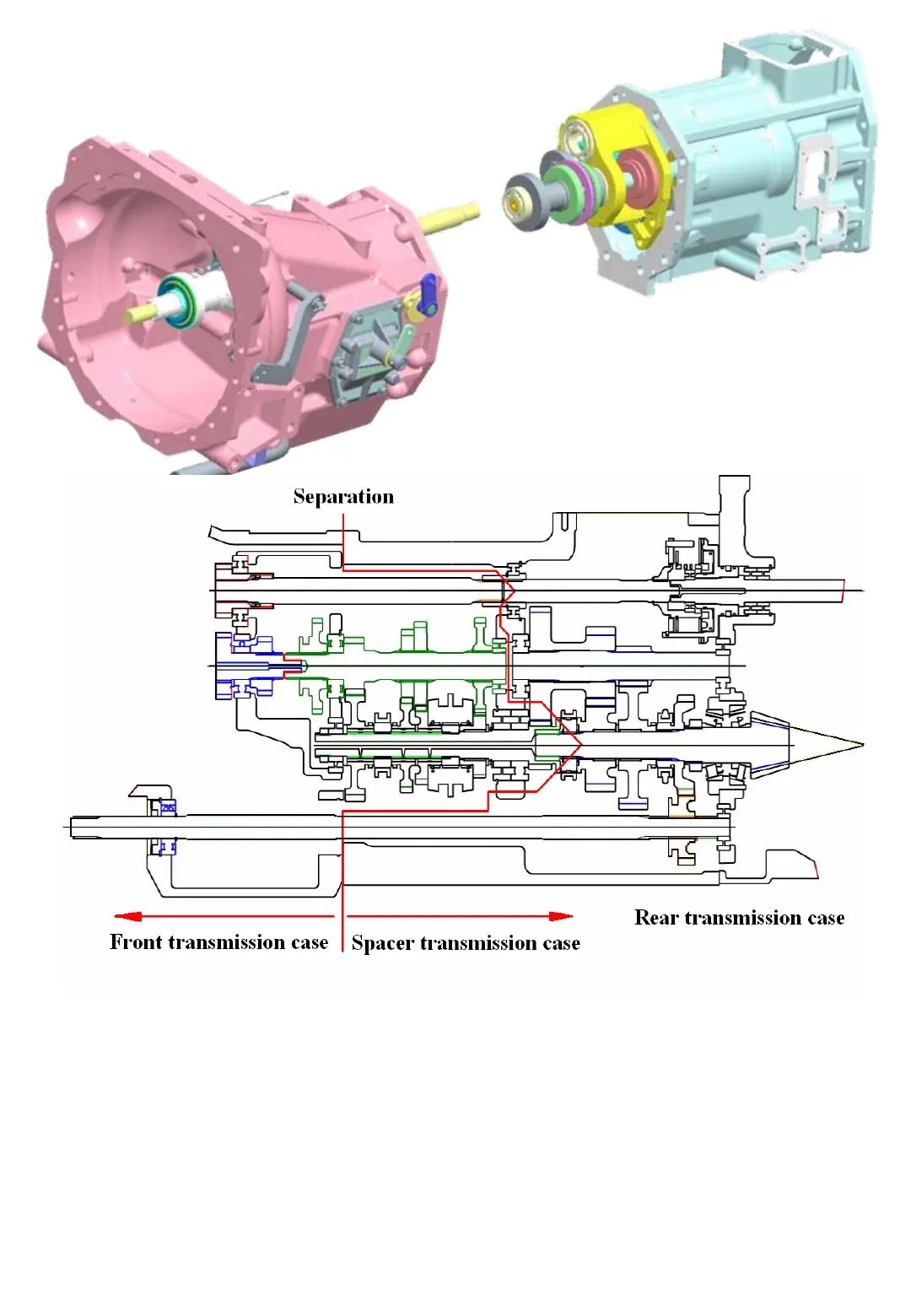

Fig.5-40
Separation the spacer transmission case and rear transmission case from each other referring paragraph
3 in SECTION 4.SEPARATION OF MAJOR COMPONENTS in chapter 2.
With this operation, the transmission is divided into the front transmission and the spacer transmission.
The front transmission includes the main speed shift, the creep shift mechanisms, and the spacer
transmission includes sub-speed shifting and 4WD shifting mechanisms.
Note : The separation of the gears mentioned in the figure is possible without dividing the spacer
transmission and the rear transmission from each other
3.1 DISASSEMBLY
