5-22

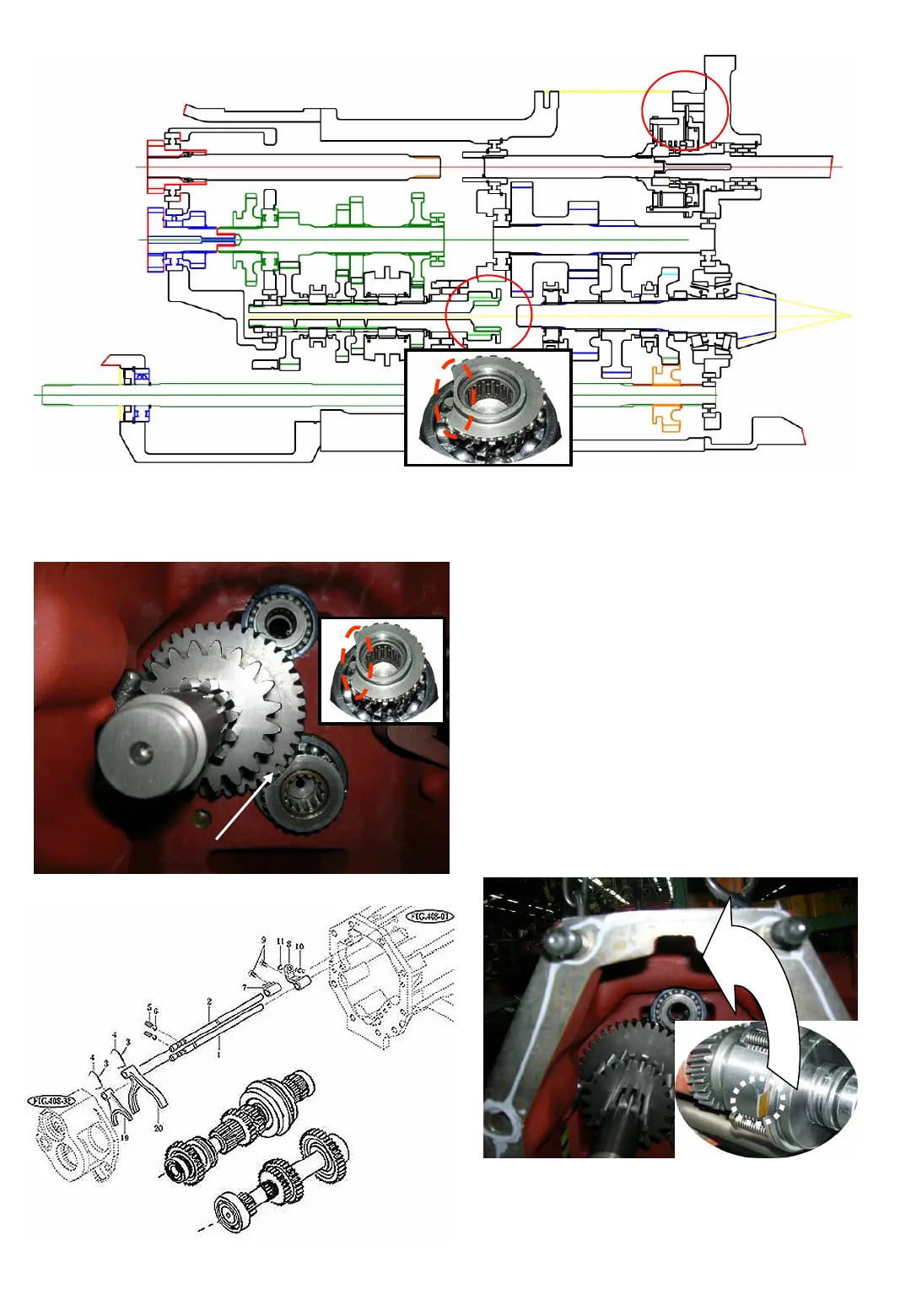

a. Set the cut away part of the gear so that it
clears the gear as shown in Fig.5-42
b. Remove the tightening bolts of the reverse
metal (Three straight pins are installed)
c. Pull out the assembly of the reverse shifter
metal, main speed shift gears, creep shift metal
and shifters rearwards by tapping it with a
plastic hammer.
Note : Take care not allow the gear to drop as it
is free when the above assemble is
removed.
d. Remove the shift stays from the shift metal
and remove the gears assemblies as shown
Fig.5-43.
d. Remove bearings and gears from each shaft.
Crescent cut away
Fig.5-43.
Fig.5-41
Crescent cut away
Fig.5-42
Note : Make sure that the turning lock of the
PTO clutch is securely seated in the
groove in the Front transmission case.
(1) Disassembly of main change gears(main speed shift), part of sub-change gears(speed range shift)
and shifters.
To Next Page
