(2) Disassembly of the sub-change gears
(Speed range shift)
a. Remove the sub-shifter and shifter stay.
b. Pull out the PTO shaft , 4WD shaft and gear

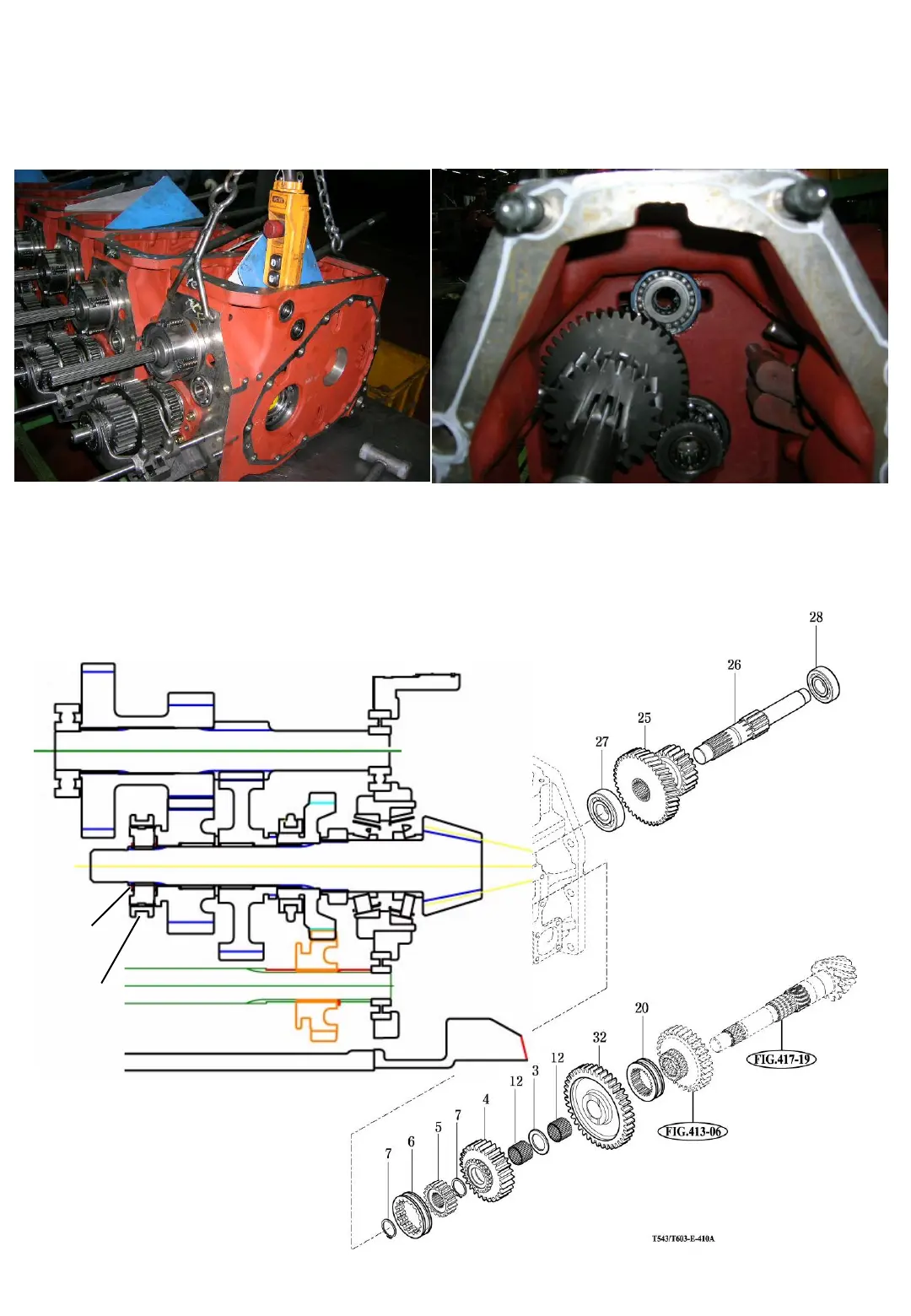

Fig.5-44
c. Remove the snap ring from the end of the pinion gear shaft
d. Remove the hub
e. Remove the sub-change gears.
Fig.5-45
Snap ring
Hub
Fig.5-45 Sub-change gears and the shafts
