UFactory xArm - Electrical Interface

38
2. Electrical Interface

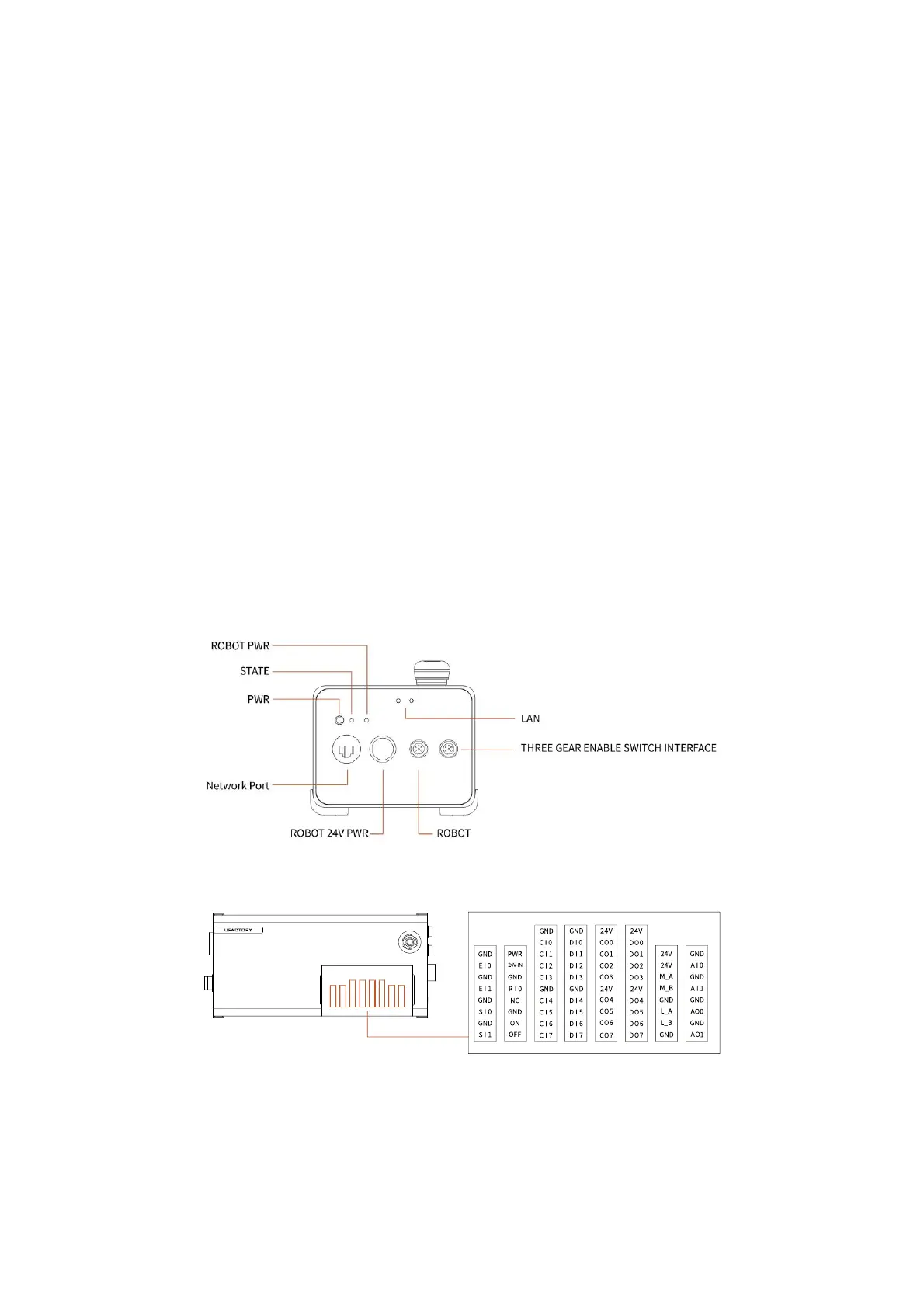

2.1. AC Control Box
2.1.1. Connect the Control Box to the Robotic Arm
1. The robotic arm power supply cable connects the power port of the
robotic arm and the ROBOT power port of the control box.
2. The robotic arm signal cable is connected to the signal interface of
the robotic arm and the ROBOT signal interface of the control box.
