xArm User Manual-Hardware Section
1. Hardware Installation Manual
1.1. The Hardware Composition of xArm
1.1.1. Hardware Composition
The composition of robotic arm hardware includes:

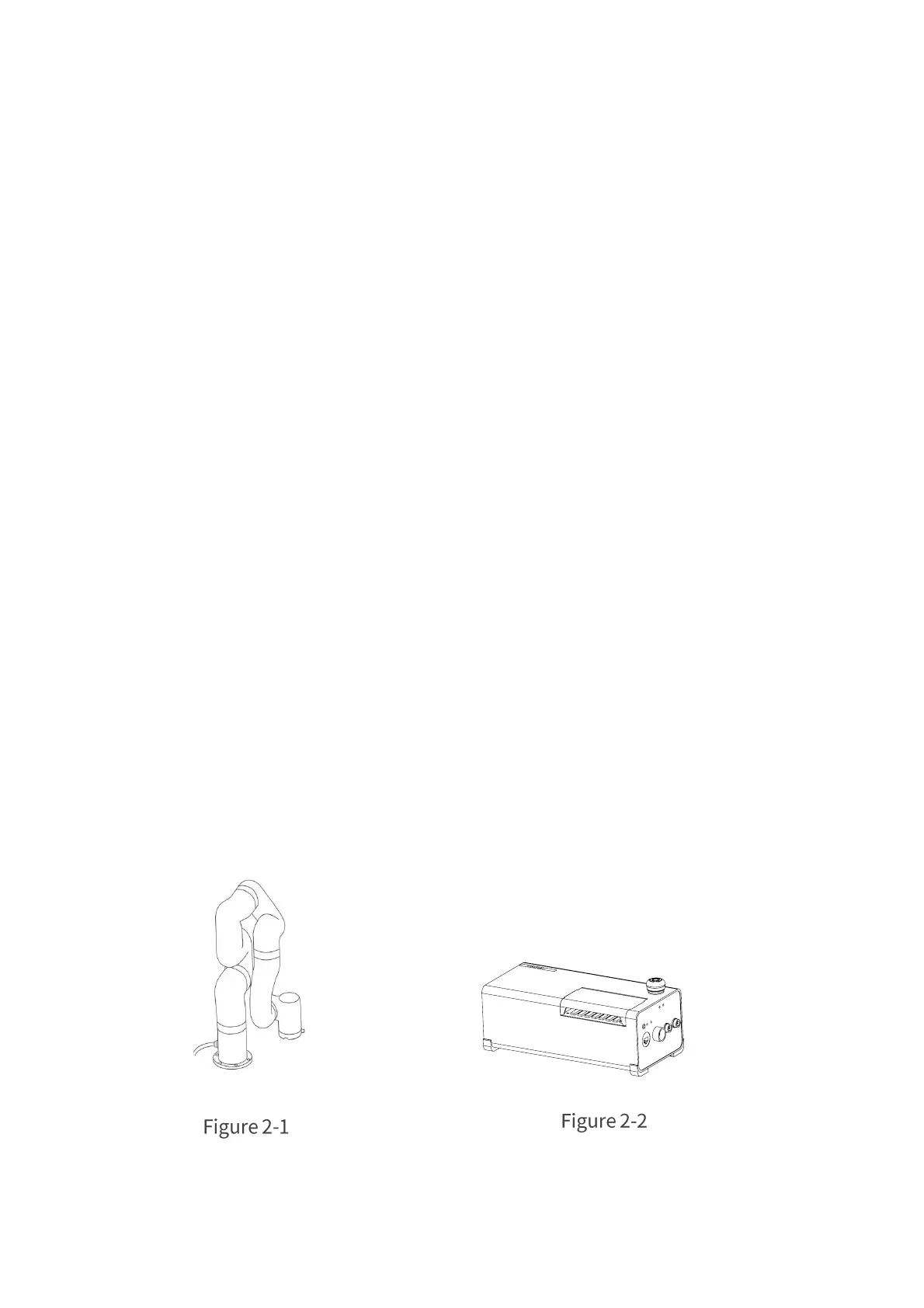

• Robotic Arm（Figure 2-1）
• Control Box (Figure 2-2)
• Robotic Arm Signal Cable (Figure 2-3)
• Robotic Arm Power Supply Cable (Figure 2-4)
• Control Box Power Supply Cable (Figure 2-5)
