BATTERY CHARGER USER’S MANUAL PART- 2: THEORY OF OPERATION
MCEnPC23-REV.2.4 Page 7
2. ACCESSING MENU VIA KEYPAD
All gray buttons in all figures inside this manual mean that this button is pressed and activated. When more than one
button is gray, this means that we have a choice to press any button on keypad.
WARNING!
All values indicated in the following figures are given as examples. These values don’t apply necessarily
to your system. For more information about the real values and options set for your application, please
refer to the test report at the end of this manual.

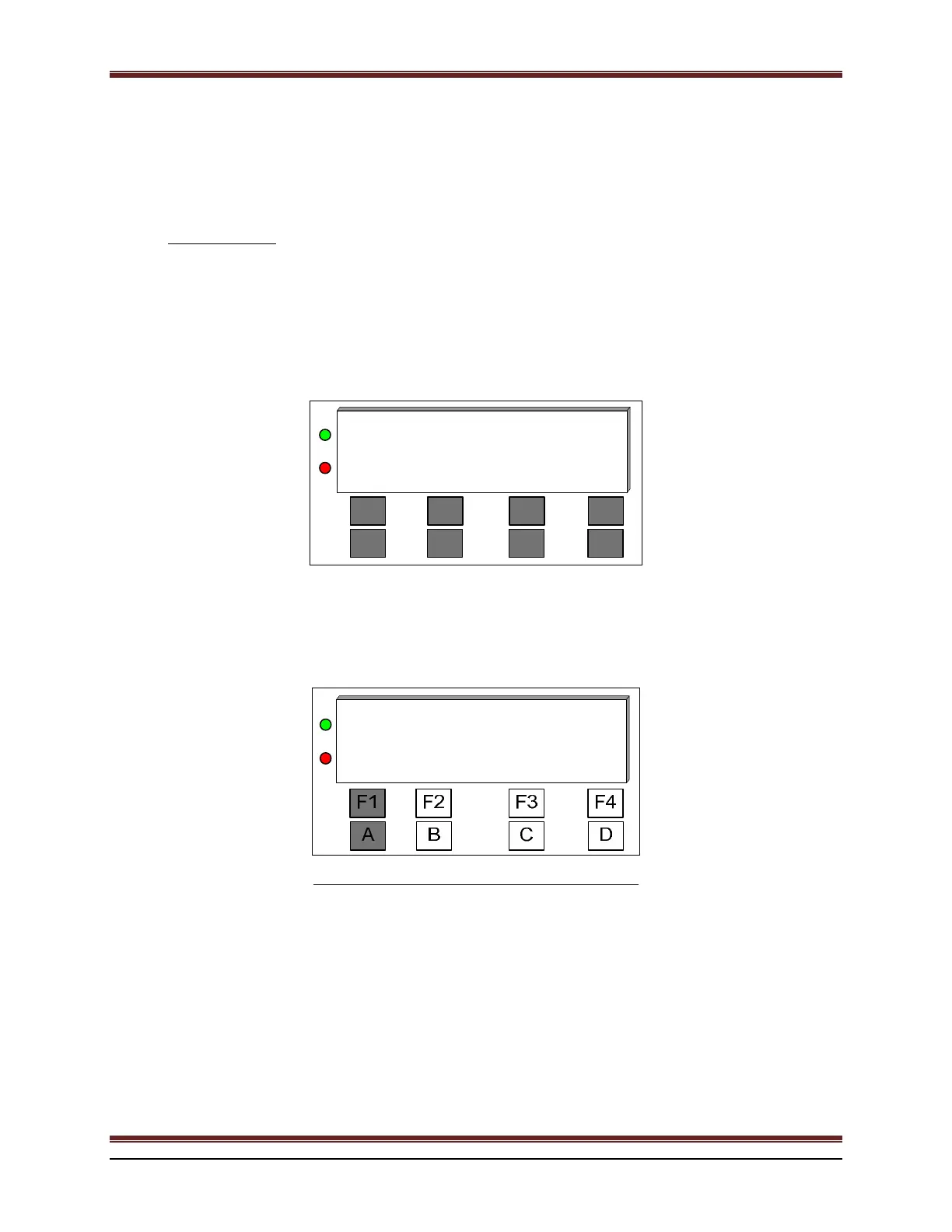

On power-up the following readings appears on the screen:
F1 F2 F3 F4
136.2V
Equalize
10.5A
A B C D
Figure 2 : Home screen example after turning ON the battery charger.
From that point, if you press any button once from F1 to F4 (or A to D with other keypad), you reach the menu
screen:
Eq FltMode
Ok
Next
P
Exit
Figure 3 : LCD Display after pressing any button.
From this menu, buttons F2 and F3 (B and C with other keypad) allow us to navigate all other menus and
sub-menus, adjustments and enable or disable functions. A detailed description of all menus and sub-menus will be
provided in the following paragraph.
Important!
All adjustments of your battery charger are made in our service department. Some sub-menus are password
protected. Only authorized personal will be able to access these sub-menus.
