xxiv. Equalize Alarm *
Equalize alarm is activated when the charger goes in “Equalize” mode. We can enable or disable and adjust this
alarm as shown on the procedure below:
Alarms?
Ok
Next Pr
Exit
Adjust? Level1
Ok Next
Pr
Exit
ON Alarm Eq
Set
Exit Next
Pr
ON
OFF
Next
Exit
:getyou Next till Press
ON Alarm Eq
Equalize
10.0A 136.2V
:getyou Next till Press

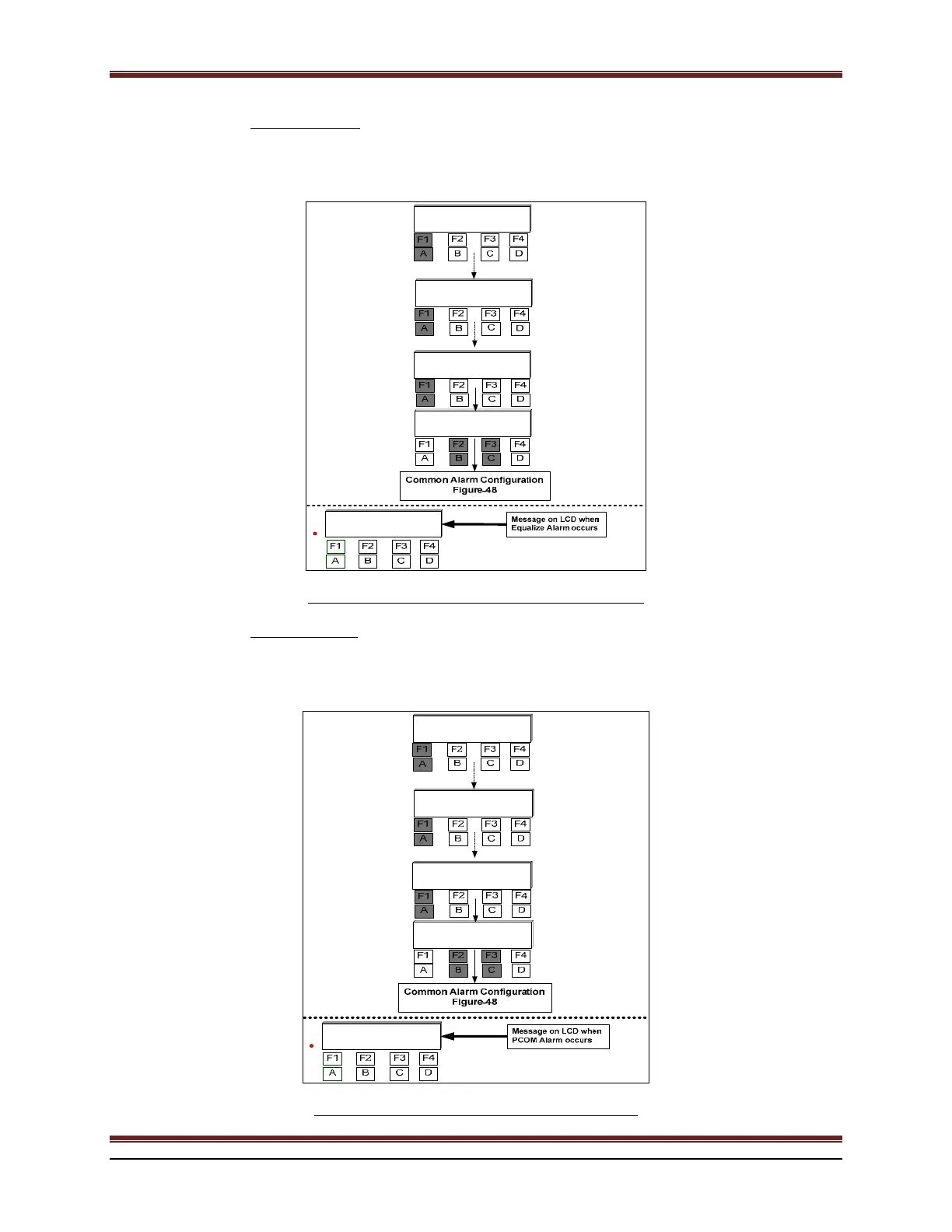

Figure 73 : Equalize Alarm adjustments procedure.
xxv. PCOM Alarm **
PCOM alarm is activated when the communication between control board and communication board (PCOM) fails.
We can enable or disable and adjust this alarm as shown on the procedure below:
Alarms?
Ok
Next Pr
Exit
Adjust? Level1
Ok Next Pr
Exit
ON Alarm PCOM
Set
ExitNext
Pr
ON
OFF
Next
Exit
:getyou Next till Press
Fail PCOM
10.0A 136.2V
:getyou Next till Press
ON Alarm PCOM
Figure 74 : PCOM Alarm adjustments procedure.
