BATTERY CHARGER USER’S MANUAL PART- 2: THEORY OF OPERATION
MCEnPC23-REV.2.4 Page 68
xix. Rectifier High Current Alarm *
Rectifier High Current alarm is activated if rectifier output current exceeds the preset value during a preset time. We
can enable or disable and adjust this alarm as shown on the procedure below:
Alarms?
Ok
Next
P
Exit
Adjust? Level1
Ok
Next P
Exit
ONA 65.0IHigh
Set
ExitNext
P
ON
OFF
Next
Exit
:getyou Next till Press
Next
Exit
-
ON IHigh
tHighCurrenRect
67.3A 136.2V
:getyou Next till Press
ONA 65.0IHigh

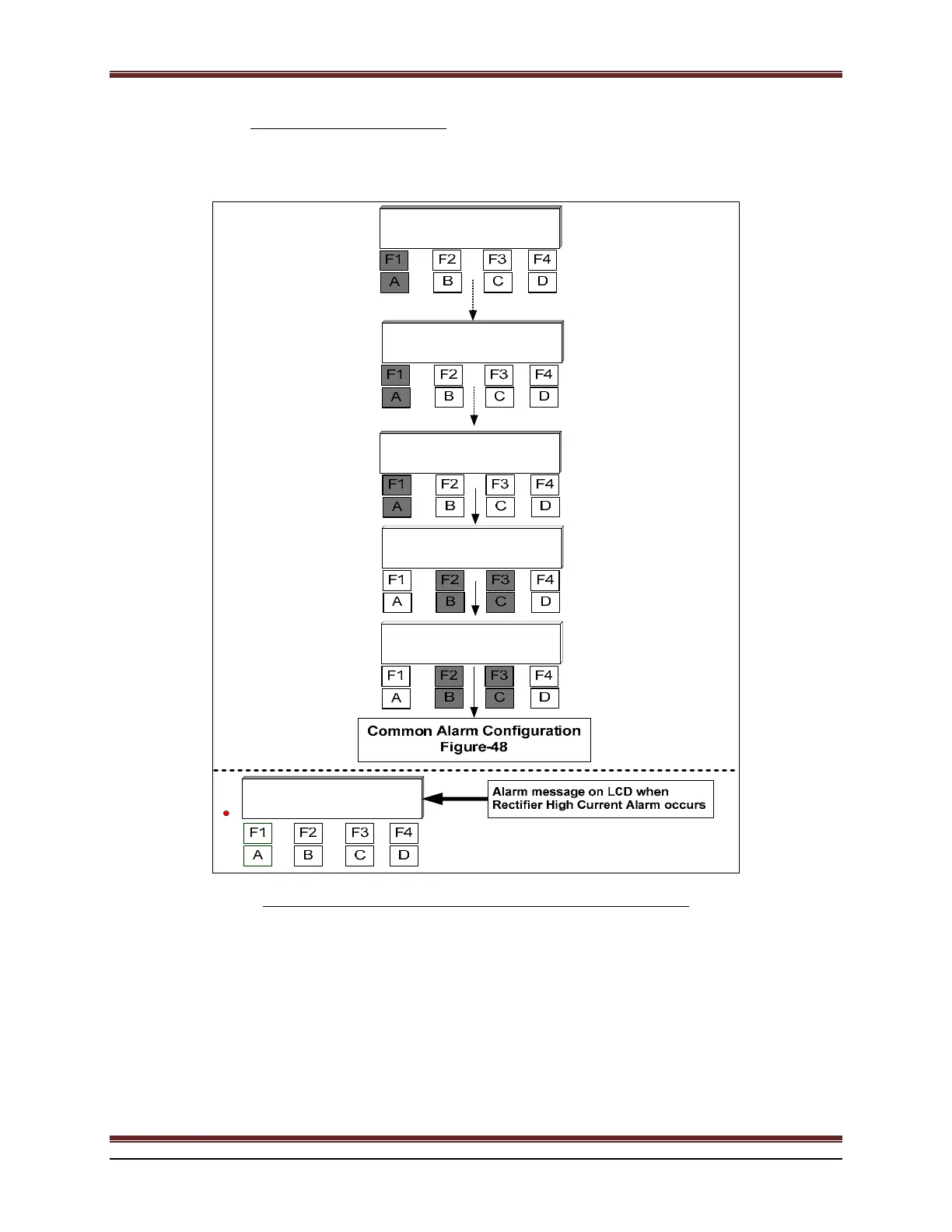

Figure 68 : Rectifier High Current Alarm adjustments procedure.
* : Included, enabled upon customer request only. Can also be field activated
** : Optional
To Next Page
