BATTERY CHARGER USER’S MANUAL PART- 2: THEORY OF OPERATION
MCEnPC23-REV.2.4 Page 75
xxviii. Unbalanced Battery Alarm **
Unbalanced Battery alarm is activated if one or more battery cells are defective. VCell is the voltage unbalancing
(Error) allowed for one cell/ block before this alarm will be active. If the maximum allowable voltage exceeds the
preset value for VCell, during a preset time, than this alarm will be activated. We can enable or disable and adjust
this alarm as shown on the procedure below:
Alarms?
Ok
Next
Pr
Exit
Adjust? Level1
Ok
Next Pr
Exit
ON V 0.7 VCell
Set
ExitNext
Pr
ON
OFF
Next
Exit
:getyou Next till Press
Next
Exit
-
ON VCell
Cell Defective
10.0A 136.2V
:getyou Next till Press
ON V 0.7 VCell

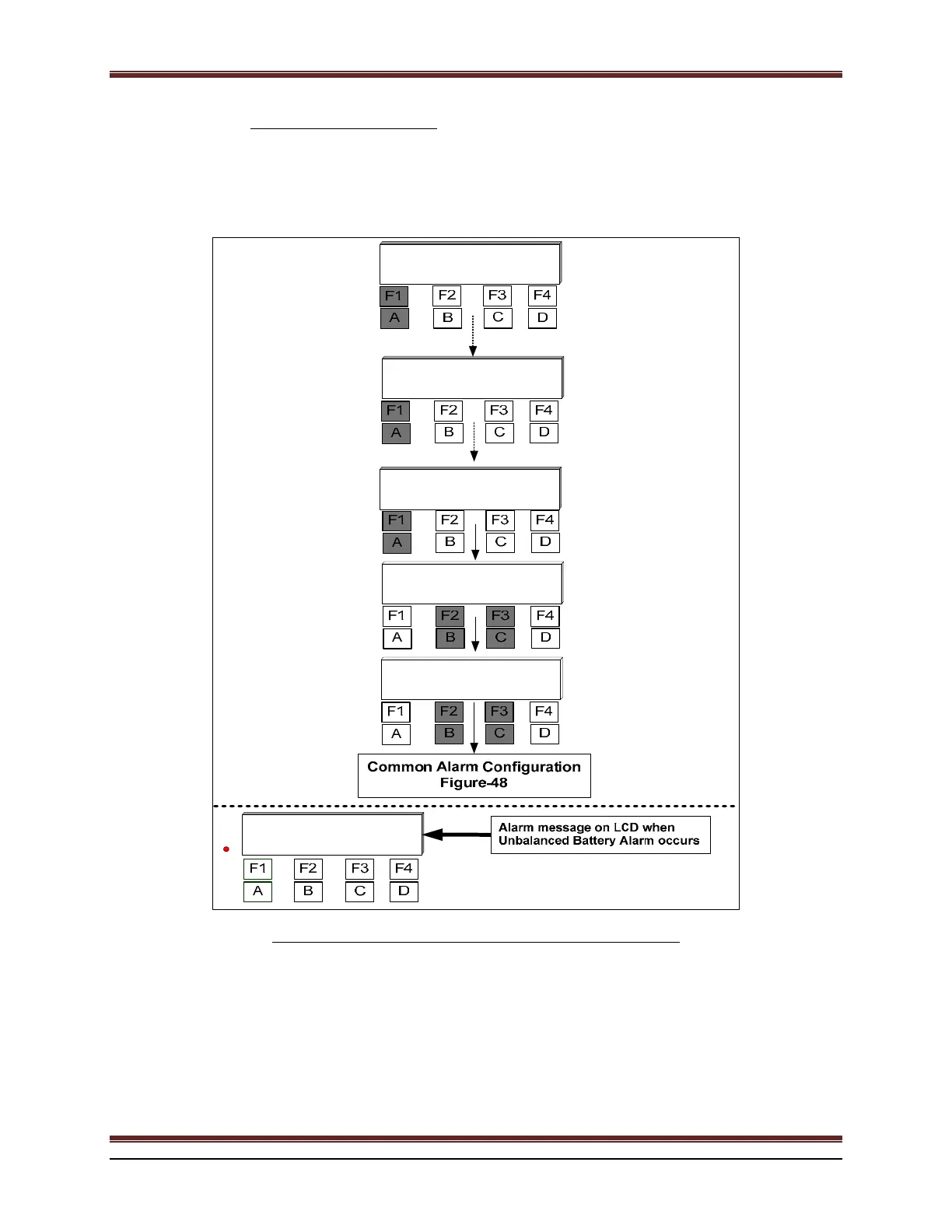

Figure 77 : Unbalanced Battery Alarm adjustments procedure.
* : Included, enabled upon customer request only. Can also be field activated
** : Optional
To Next Page
