BATTERY CHARGER USER’S MANUAL PART- 2: THEORY OF OPERATION

MCEnPC23-REV.2.4 Page 17

7.2.2 Readings

By default, the readings are the battery DC voltage and the rectifier output current. The LCD can also show the

following additional readings:

 Line Frequency.

 Rectifier output voltage.

 Voltage between positive and chassis.

 Voltage between negative and chassis.

 Remaining time for Equalize.

 Elapsed time for Equalize.

 Temperature inside charger.

 Battery temperature (optional).

 Voltage test during battery test (optional).

 Current test during battery test (optional).

 Time during battery test (optional).

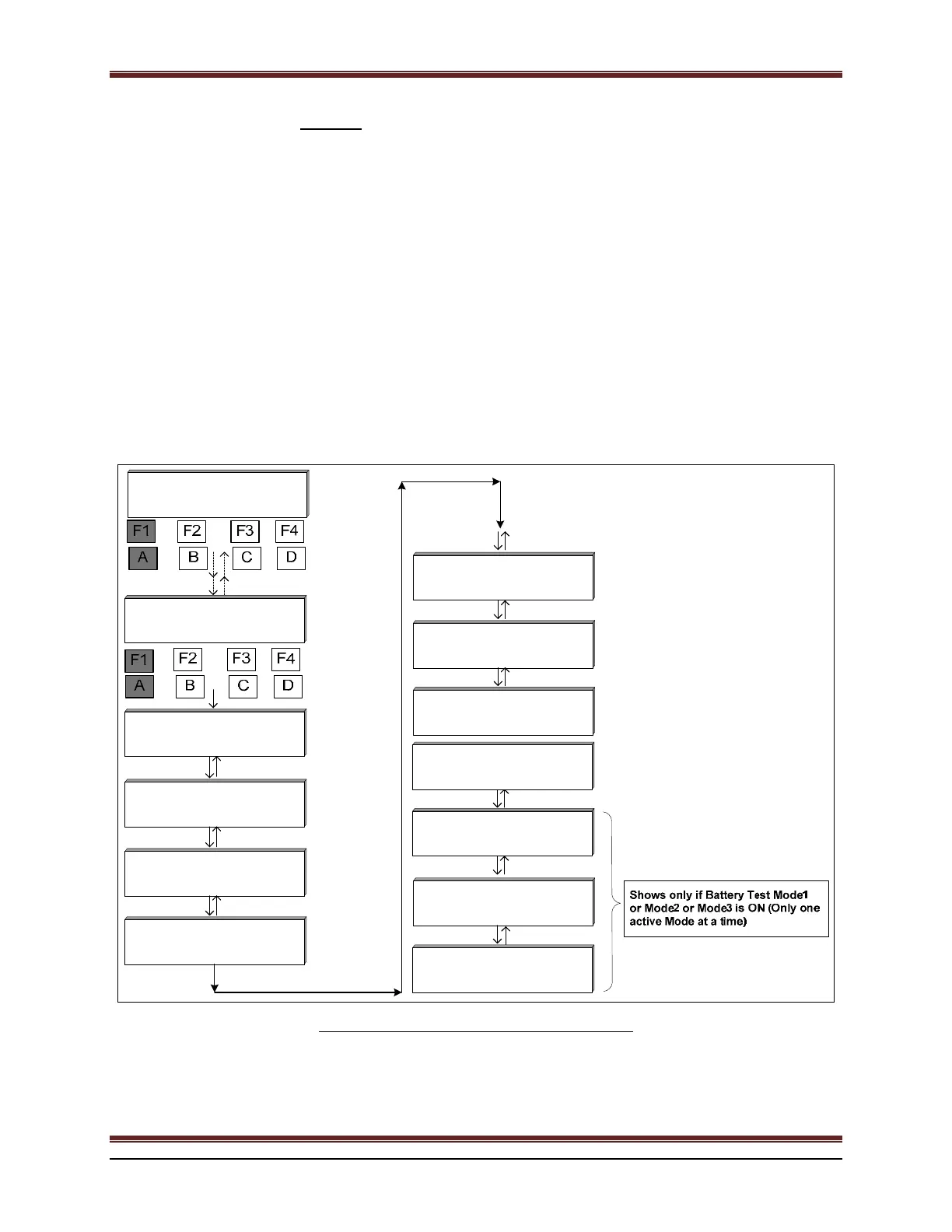

The next figure describes the procedure to access all readings that can be displayed on LCD:

Readings? Level0

Readings?

Frequency

60.1Hz

VRect

136.2V

/CHASS-V

68.1V

/CHASSV

68.1V

RemTEq

400mn

ElapsTEq

100mn

C 26

VTest

132.5V

ITest

25A

TTest

60mn

ExitPr Next Ok

:getyou Next till Press

BoardTemp

TempBatt

C 21

ExitPr Next Ok

ExitPr Next

Figure 16 : Procedure to access Readings menu.
