APX 525/625 Generator Revision C Pre-Installation
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 58
6. Place in-line transformer (1 in Fig. 3) in position shown and secure in place
with four bolts and washers (2) removed in step 5.
7. Reposition high-tension transformer (3) and secure in place with bracket (4)
and two bolts.

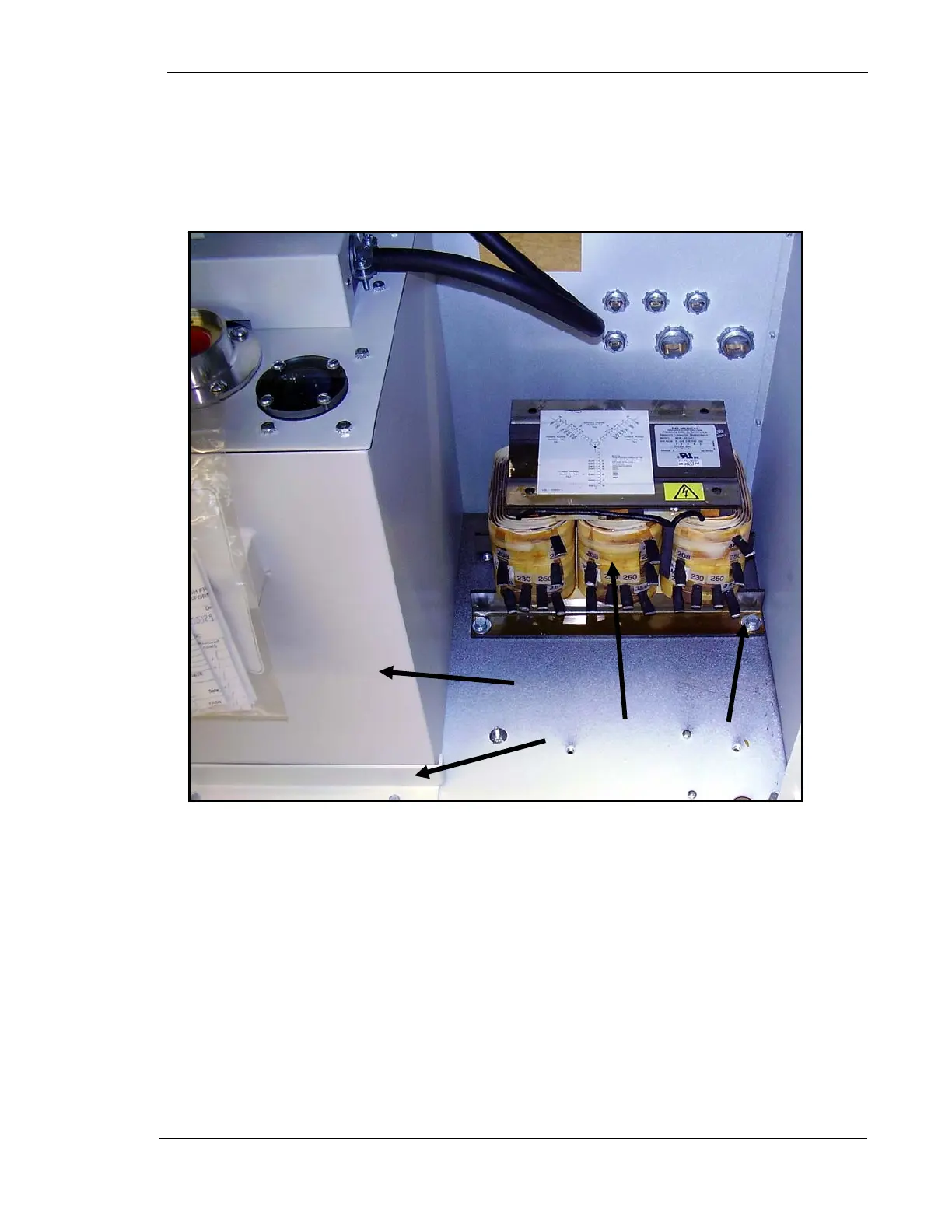

Figure 3. In-Line Transformer Mounting
1
3
2 (x4)
4
