APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 89
Warning: Make sure that main power source disconnect is turned off
and tagged “Machine is Being Serviced” before doing the following
steps. You may get fatally shocked if you do not.
24. Turn off main power disconnect switch for generator’s outside power source.
25. Prepare main power cable for installation. This cable is customer supplied.
For the generator end of the cable, the outer insulation should be stripped
back to allow 12” (30cm) of internal wire to be exposed. Each internal wire
should have about ½” (12mm) of insulation stripped from each end. Also, the
ground wire of the cable should be fitted with an eyelet with a ¼” [7mm] I.D.
clearance hole as shown below.

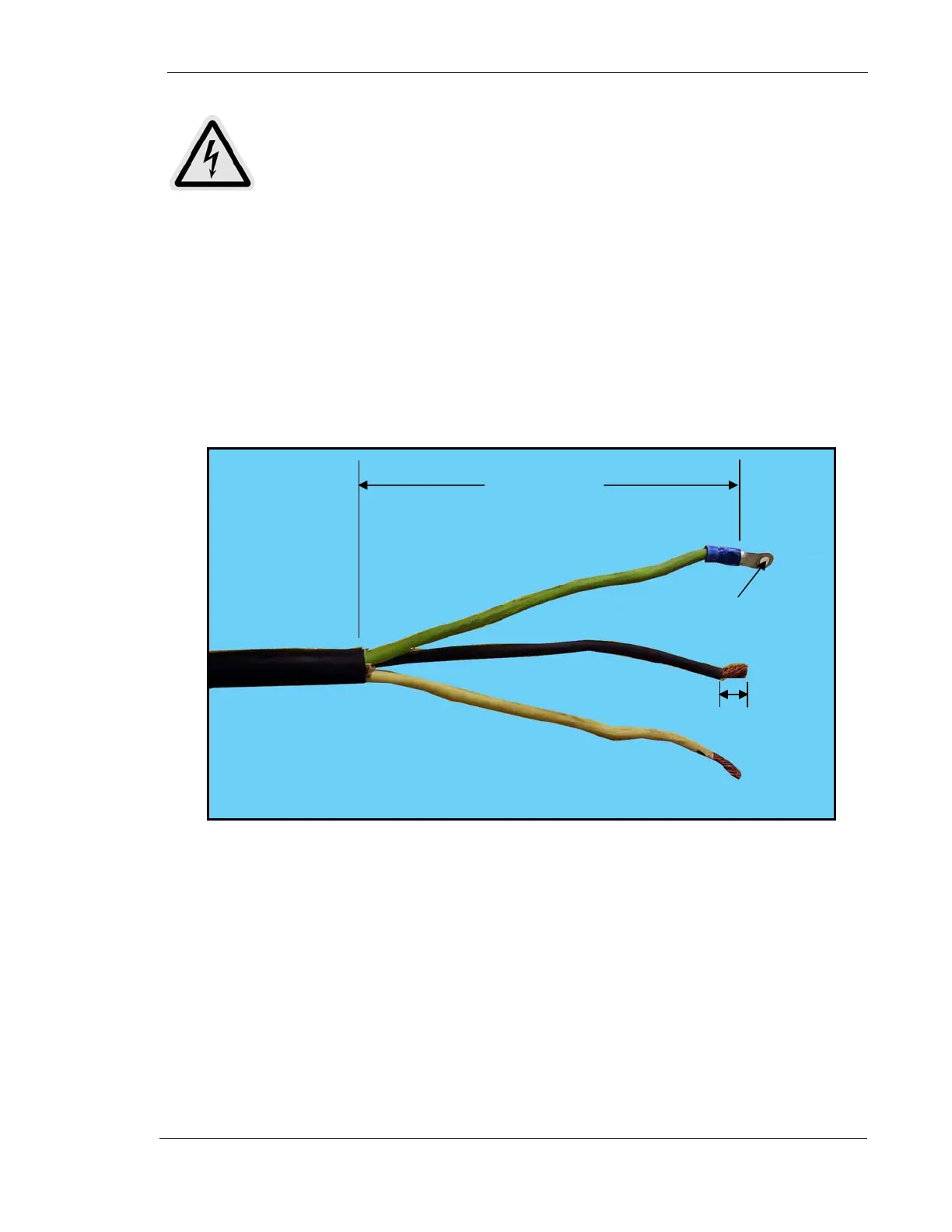

Figure 12. Main Power Cable Preparation
26. Connect main power cable to local source according to local electrical safety
standards.
12” (30mm)
1/4” (7mm) Dia.
1/2” (12mm)
