3-8 Valco Cincinnati, Inc.
Section 3 - Basic Features
MC075 - MCP-4 Control Unit
MCP-4F
Control
Front Panel
Bottom Panel

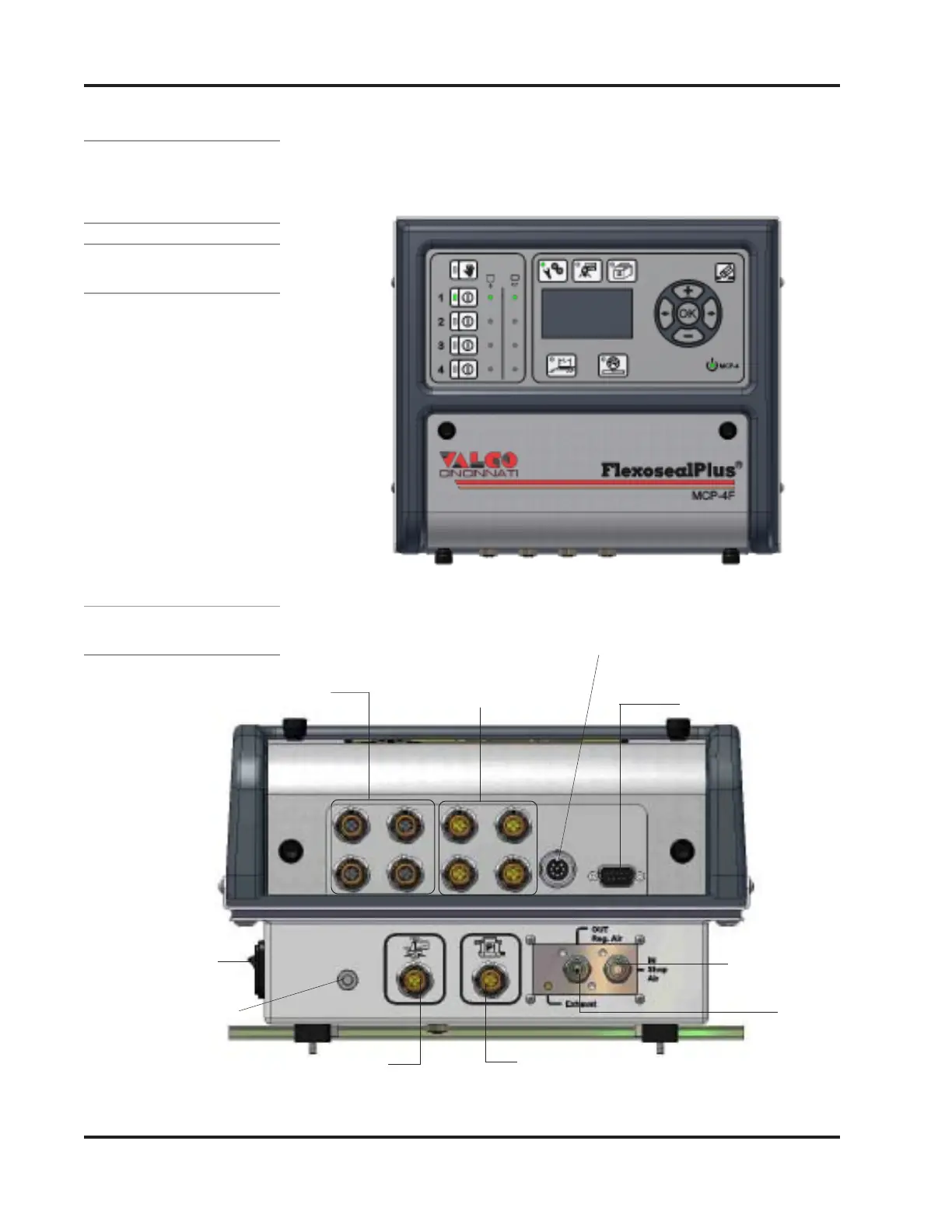

Figure 3-9. MCP-4F Front View
Figure 3-10. MCP-4F Bottom View (enlarged to show detail)
The MCP-4F Control Unit is available in a 115/230VAC version featuring an
internal EPC flow control for variable speed applications. The operator panel
is the same as the MCP-4 unit (see Figure 3-1).
Valve Output 1-4 (blue)
Scanner Input 1-4 (yellow)
Encoder Input
Diagnostic Port
115/230VAC Power Input
(Side of unit)
Secondary EPC Connection
Pump Power Connector
Grounding Screw
EPC Air Pressure
Input
EPC Air
Pressure
Output
