MC075 - MCP-4 Control Unit Section 4 - Programming

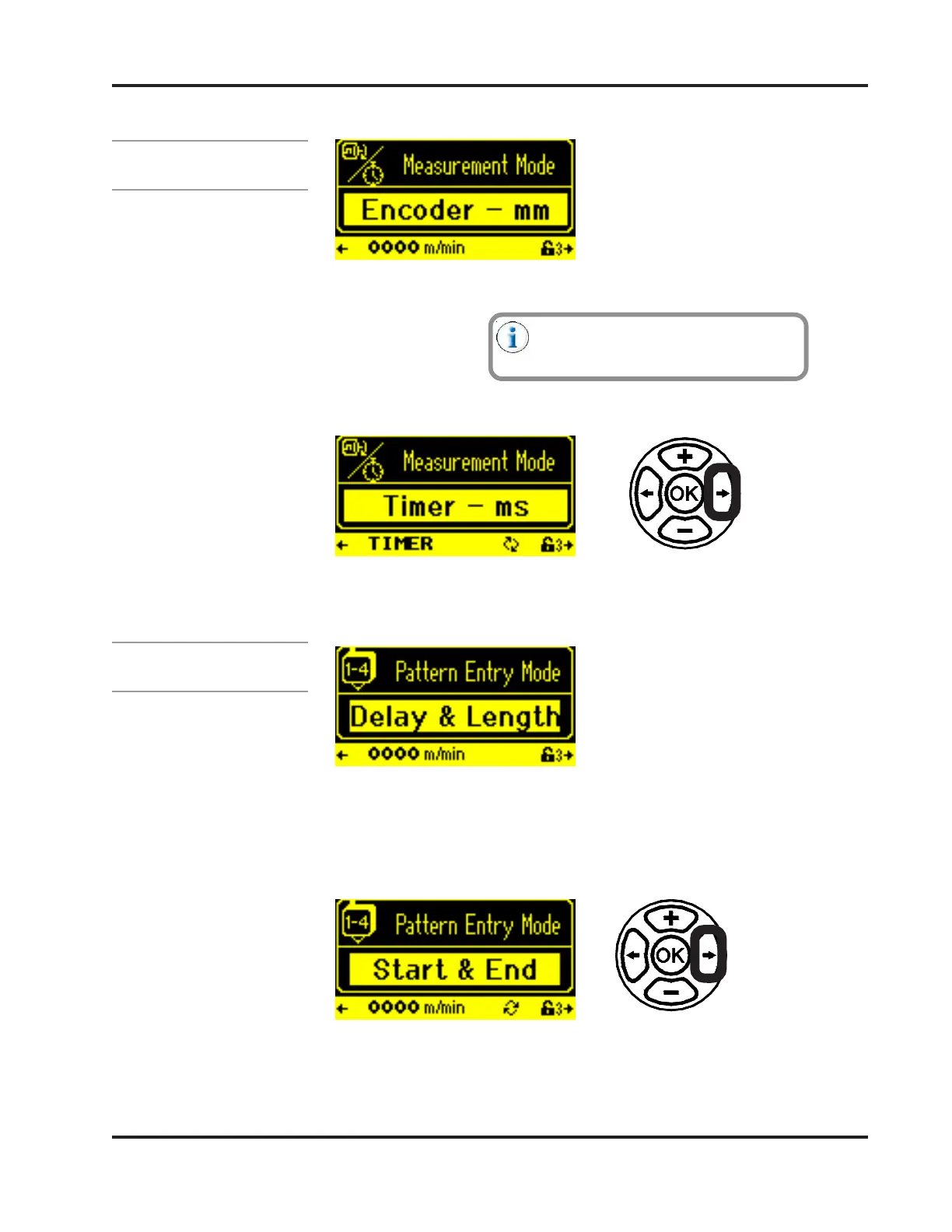

Measurement Mode Measurement Mode

Measurement Mode -

Timer Timer

Timer - Set the units to Seconds (sec) or

Milliseconds (ms).

Measurement Mode

OROR

(Corrugated, Folding Carton,

Envelope, Packaging, Core

Winding, and Others)

(Timer and Valve Driver)

Start/End ModeStart/End Mode

Start/End Mode - The measurements used include the start of the glue line

from the leading edge of the product and the end of the glue line from the

leading edge of the product (see Section 5 - Operation). This Mode requires

an encoder and is not available for Timer applications

Pattern Entry Mode

Delay/Length Mode Delay/Length Mode

Delay/Length Mode - There is a delay length from the leading edge of the

product to the start of the glue line. These measurements, and the length of

the glue line, will be input during the pattern setup (see Section 5 -

Operation).

OROR

(All Applications)

Measurement Mode Measurement Mode

Measurement Mode -

Encoder Encoder

Encoder - Set the units to Inch or Millimeter (mm).

See the heading “Encoder Menu

Screen” in this Section for additional

encoder settings.
