5-6 Valco Cincinnati, Inc.
Section 5 - Operation
MC075 - MCP-4 Control Unit

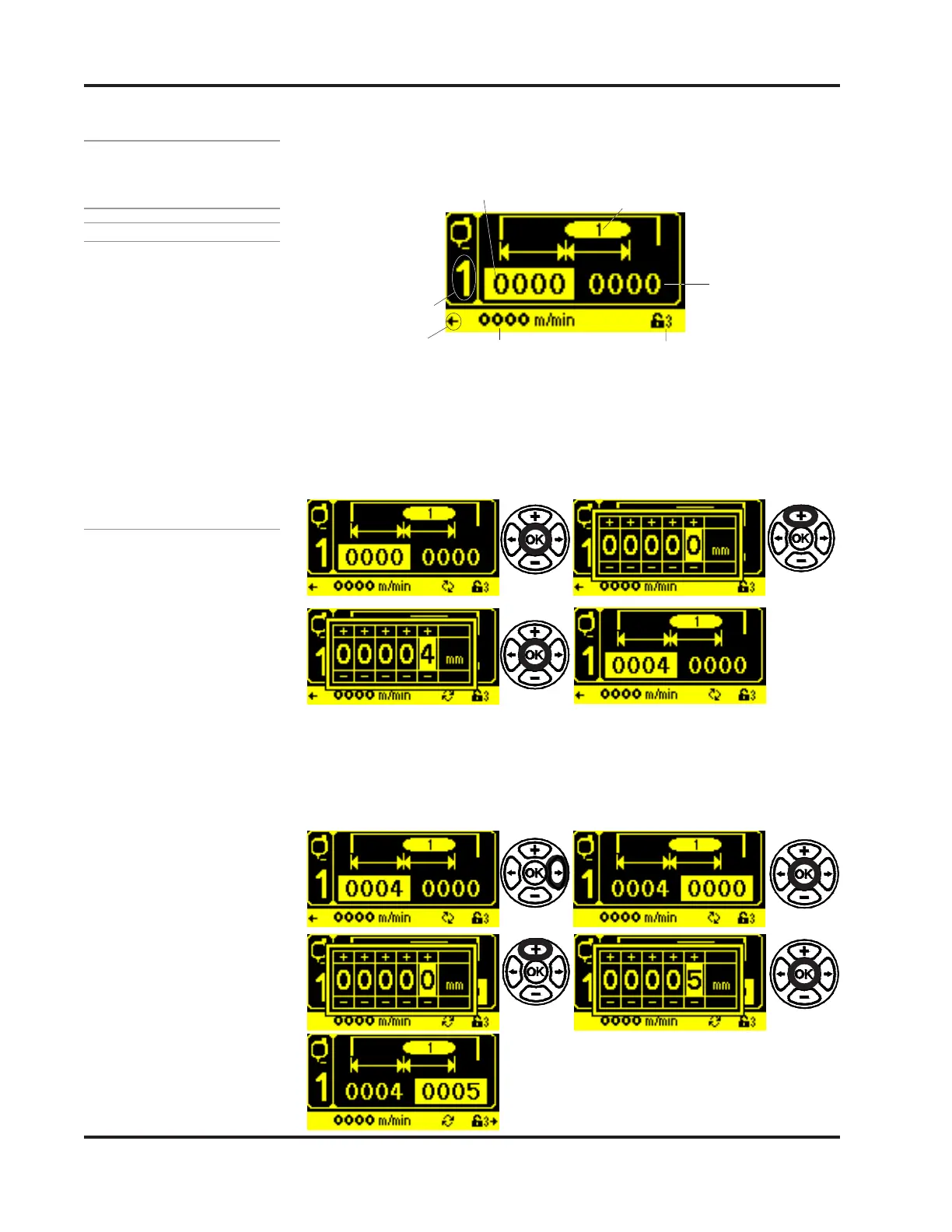

Glue Mode Screen
Information
Pattern ModePattern Mode
Pattern ModePattern Mode
Pattern Mode
The Pattern Glue Mode can also be called “pattern-skip-pattern” mode or
“normal mode.”
The following is an example of setting up a pattern gluing mode with three
patterns for valve one:
1. Set the Delay Length for pattern 1. The Delay Length for pattern
1 is the measurement from the first edge of the product to where
you want the first glue line to start.
x4
x5
2. Press the Right Arrow Button to view the Pattern Length for
pattern 1. The Pattern Length is the length of the glue line (for
the pattern number indicated). Press the OK Button to view the
thumbwheel, and use the Plus/Minus Buttons to change. Press
the OK Button to enter the setting.
Pattern Mode - ExamplePattern Mode - Example
Pattern Mode - ExamplePattern Mode - Example
Pattern Mode - Example
Valve Number
(1-4)
Pattern Number
(Up to ten patterns are available)*
Delay Length
(For the Pattern Number shown)
Machine
Speed
Indicates a menu screen to the Left
(Press the Left Arrow Button to see it.)
Password Security
Level
Pattern Length
(For the Pattern Number shown)
*The number of
patterns available
depend on the Menu
Configuration
settings (see Section
4 - Programming).
To Next Page
