5-13Valco Cincinnati, Inc.

Section 5 - Operation

MC075 - MCP-4 Control Unit

Speed/Pressure Graphs -Speed/Pressure Graphs -

Speed/Pressure Graphs -

ExamplesExamples

Examples

The four pressures/speeds are dependent upon each other. For example,

the first speed setting can never be greater than the second speed setting,

and the second speed setting can never be greater than the third, and so on.

Also, the second speed setting can never be less than the first speed

setting, the third speed setting can never be less than the second speed

setting, and so on. Therefore, if you cannot set speeds to where you want

them (the Plus/Minus Arrow Buttons will not increase or decrease the

setting), check all four of the settings. Use the Left Arrow and Right Arrow

Buttons to move through all pressures/speeds and check them. Reset them

as necessary using the Plus/Minus Arrow Buttons. You can also go back to

factory defaults by pressing the Erase Button until the setting will no longer

change.

Helpful Hints about

Pressures

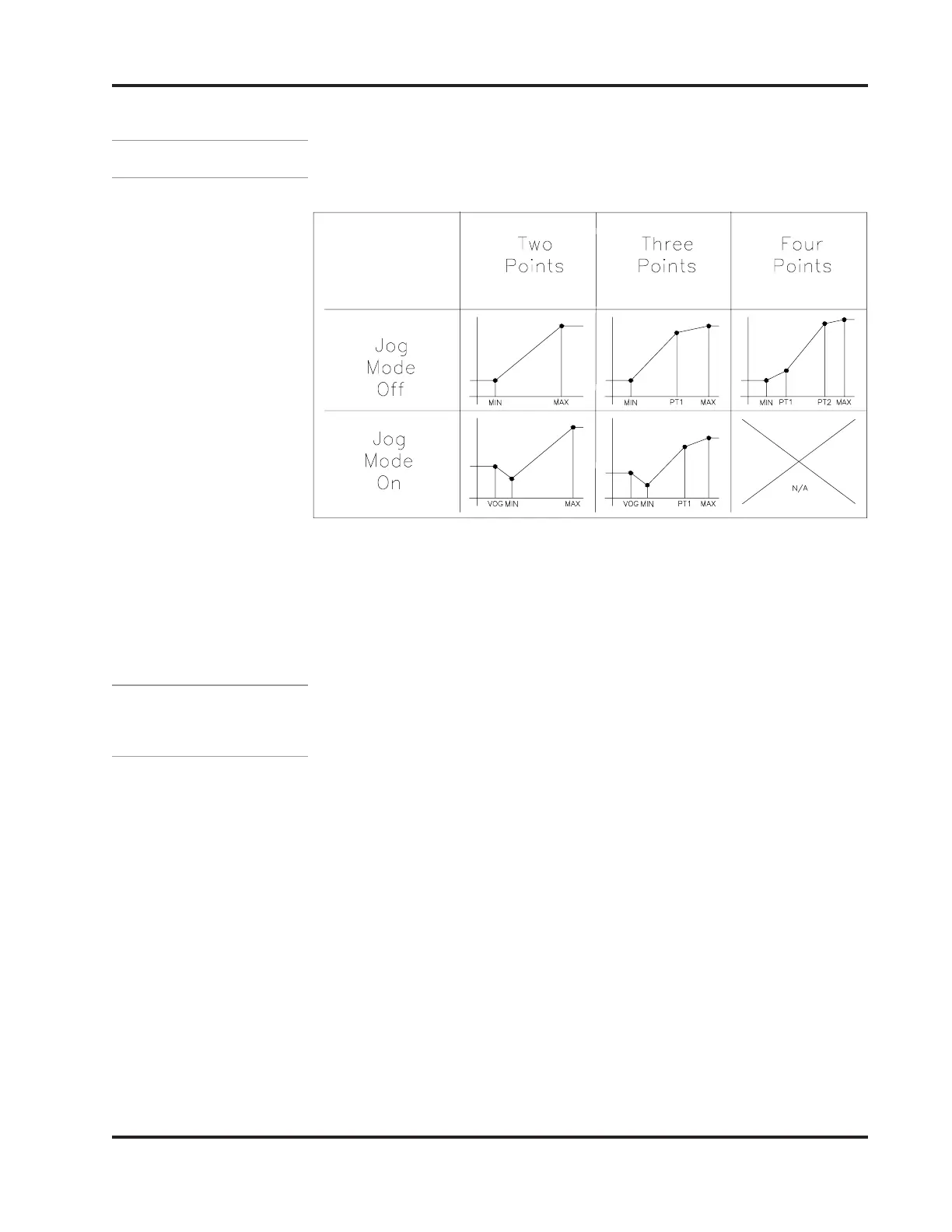

The graph above illustrates two, three, and four points on the pressure curve

with Jog Mode off and on. The majority of projects will be fine with the Jog

Mode off and only two points on the pressure curve. If more control is

necessary, try adjusting the number of points on the pressure curve. Also

see the tips below.
