8-4 Valco Cincinnati, Inc.

Section 8 - Part Number List

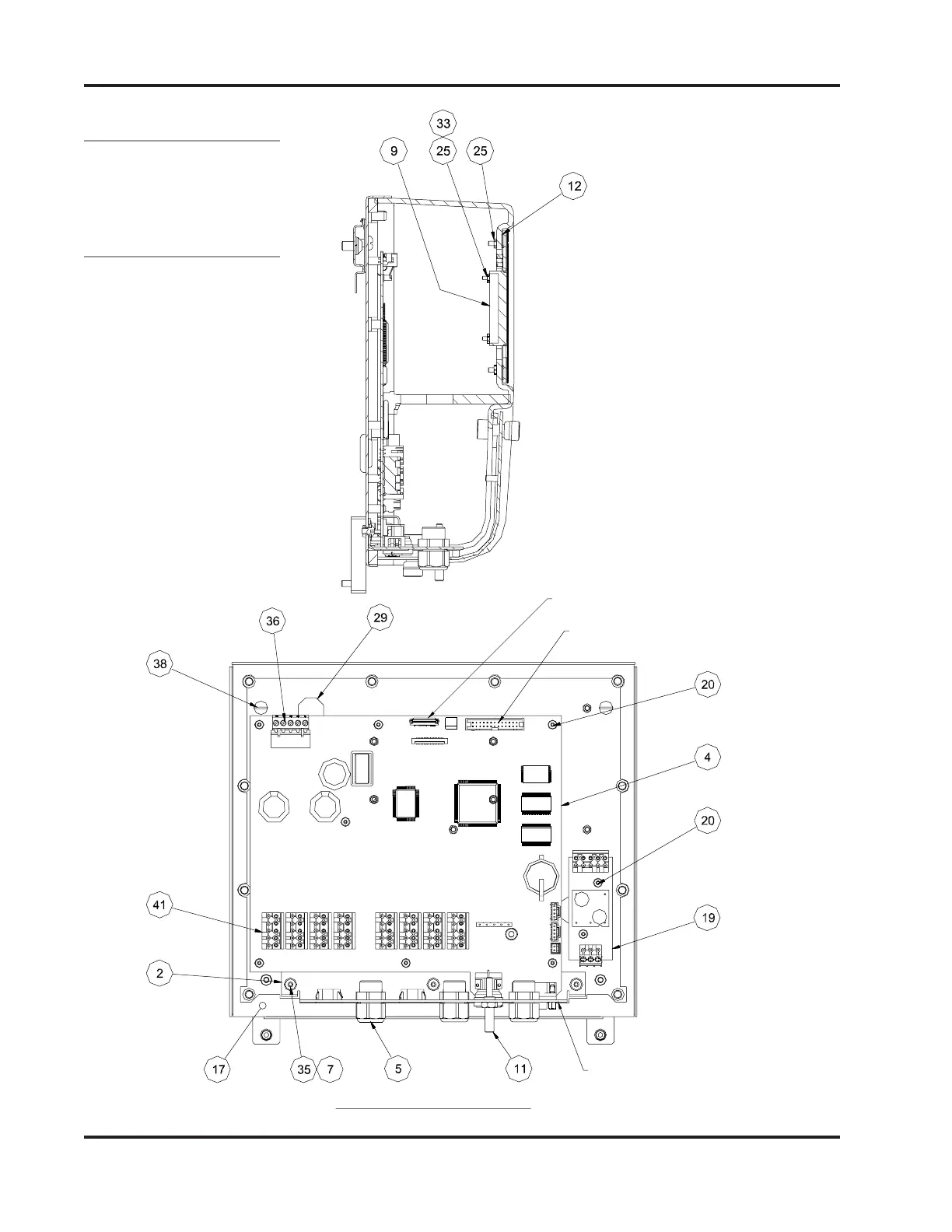

MC075 - MCP-4 Control Unit

MCP-4P Unit -

24VDC

(074xx041)

VIEW SHOWN WITHOUT COVER

GASKET TO BE FLUSH

WITH BOTTOM OF

MOUNTING PANEL

CONNECT OVERLAY RIBBON CABLE (ITEM #37)

CONNECT DISPLAY RIBBON CABLE (ITEM #45)

ATTACH COVER SO THAT

GASKET SURFACE OF COVER

IS FLUSH WITH CORD GRIP PANEL

* ATTACH GASKET TO

BACKSIDE OF TOUCHSCREEN #8

BEFORE ASSEMBLY.
