8-5Valco Cincinnati, Inc.
Section 8 - Part Number List

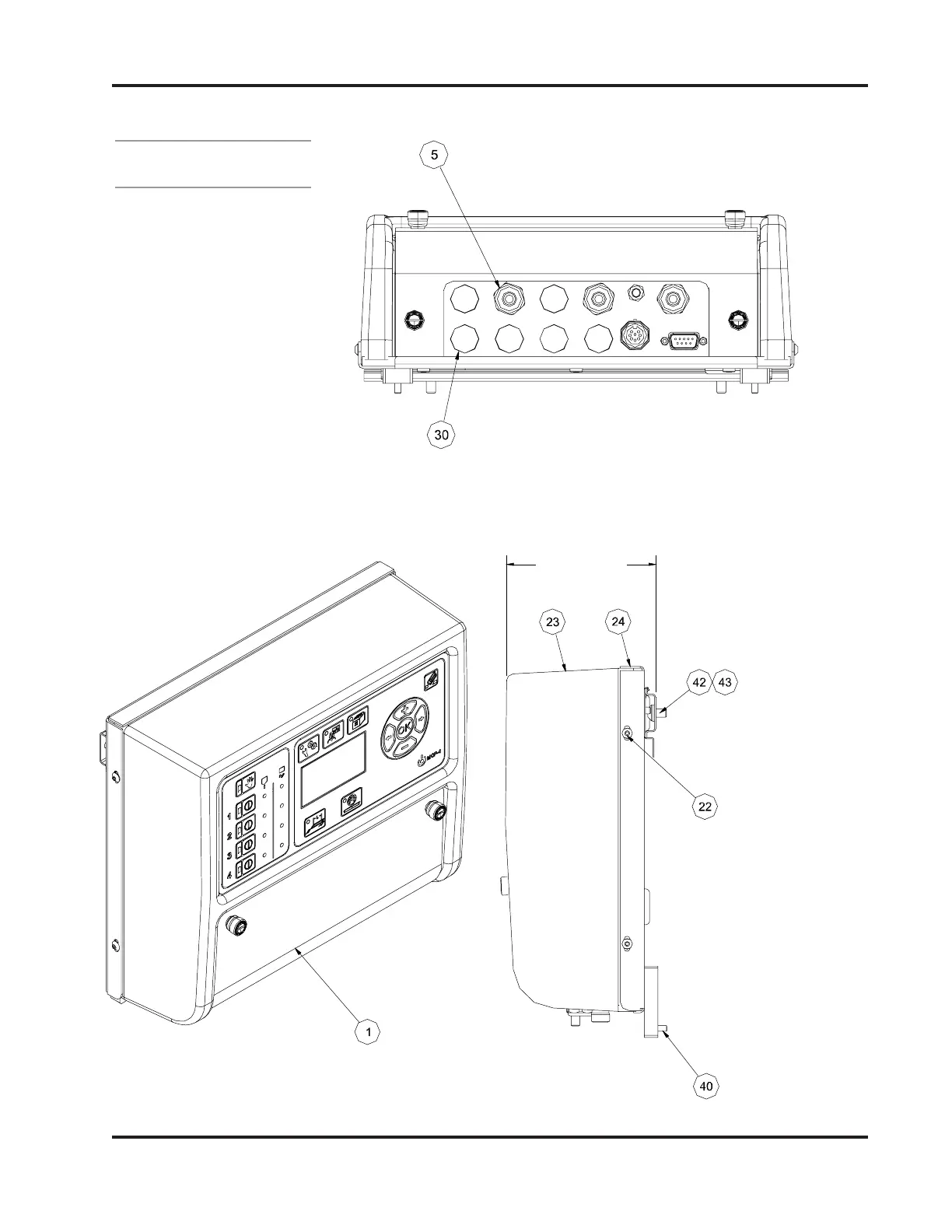

MC075 - MCP-4 Control Unit
MCP-4P Unit - 24VDC (074xx041)
- Continued
MUST COMPRESS GASKET
TO ALIGN MOUNTING HOLES
4.19 [106.3 mm]
REF.
