After completing the mounting and the programming of the MCP-4 Unit, the
unit is ready to operate. The first task is to input all pattern data and other
essential information. Many of the options are “enabled” in the Setup Menu
(see Section 4 - Programming). If you do not see a particular setting you
need, be sure to check the programming parameters that were set in
Section 4 of this manual--the desired option may not be enabled, and that
option’s menu screens are hidden.
To edit the highlighted value, press the OK Button for the thumbwheel or
press the Plus/Minus Buttons for single digit editing (see Section 4 -
Programming, “Thumbwheel vs. Single Digit Edit”).
The default screen always shows valve 1. Before entering any data, it is
advisable to check the left side of the screen for the valve number. Make
certain the desired valve number appears before entering data.
Set the
Pattern Menu
Information
(ETC.)

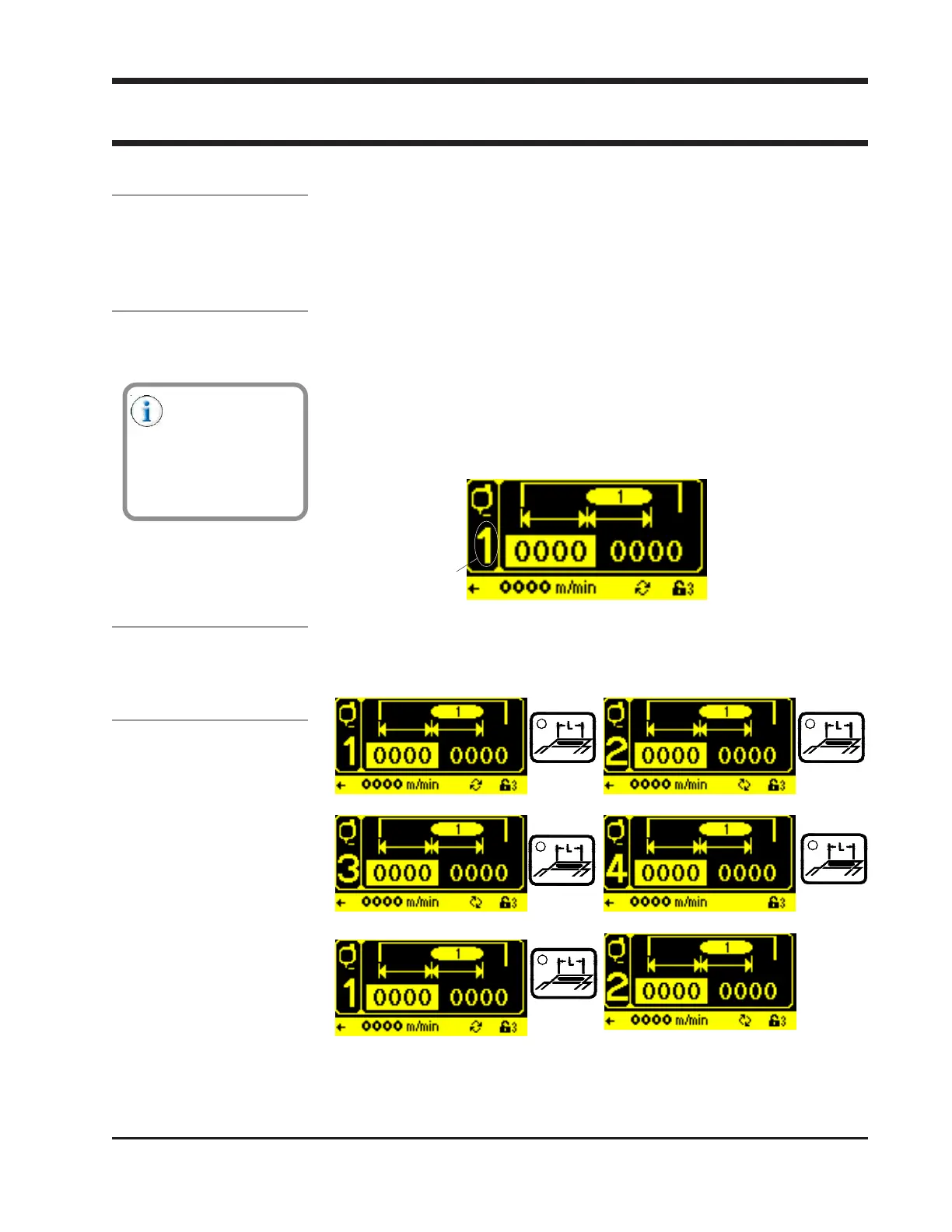

Each press of the Pattern Button will increase the valve number by one.
When valve 4 is reached, the valve numbers restart at valve 1. For example:
Valve
Number
Scrolling Through
Valve Numbers with
the Pattern Button
Depending on the
password level,
some screens may
not be seen and/or
available. This is a
security feature of
the MCP-4.
