4-17Valco Cincinnati, Inc.
MC075 - MCP-4 Control Unit Section 4 - Programming

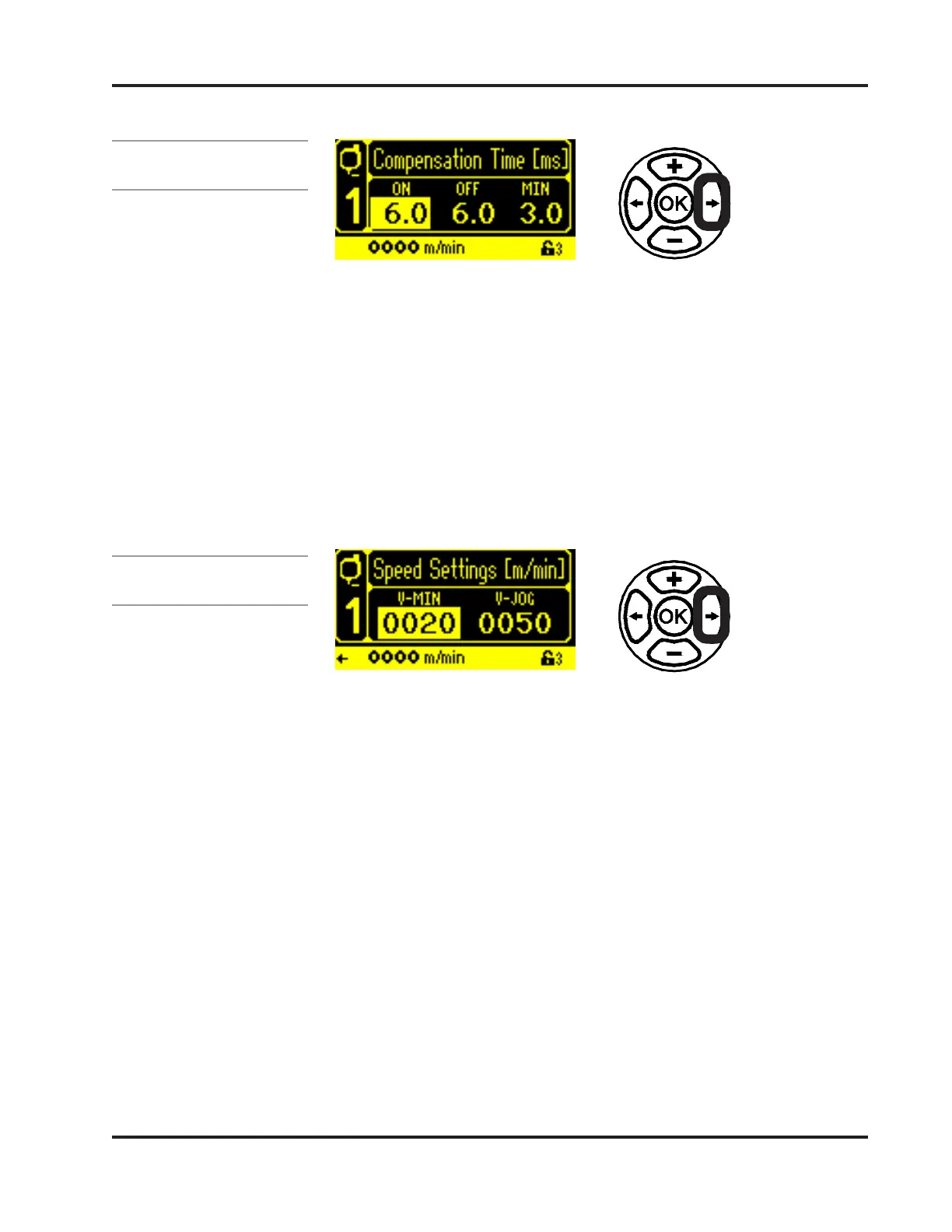

Compensation Time
x3x3
x3x3
x3
On Compensation Time (Ton)On Compensation Time (Ton)
On Compensation Time (Ton)On Compensation Time (Ton)
On Compensation Time (Ton) - This is the amount of time (in milliseconds)
from when the valve is activated to when the glue is applied. Increasing the
"ON" Compensation Time will move the start of the pattern forward.
Off Compensation Time (Toff)Off Compensation Time (Toff)
Off Compensation Time (Toff)Off Compensation Time (Toff)
Off Compensation Time (Toff) - This is the amount of time (in milliseconds)
from when the valve is turned off to when the adhesive application is
stopped. Increasing the Off compensation time will make the glue line
shorter.
Minimum Compensation Time (Tmin)Minimum Compensation Time (Tmin)
Minimum Compensation Time (Tmin)Minimum Compensation Time (Tmin)
Minimum Compensation Time (Tmin) - This is the time the valve will be
open, no matter what the pattern length, the machine speed, and the "OFF"
Compensation Times are set at.
Speed Settings
x2x2
x2x2
x2
V-min (Minimum Product Speed)V-min (Minimum Product Speed)
V-min (Minimum Product Speed)V-min (Minimum Product Speed)
V-min (Minimum Product Speed) -The minimum speed the machine must
reach before glue is applied to the product.
V-jog (Jog Speed) V-jog (Jog Speed)
V-jog (Jog Speed) V-jog (Jog Speed)
V-jog (Jog Speed) - Between minimum speed and jog speed, a glue line will
be separated into dots in order to make the glue volume even more precise.
To Next Page
