Section 5 - Operation
MC075 - MCP-4 Control Unit
Set the
Pressures

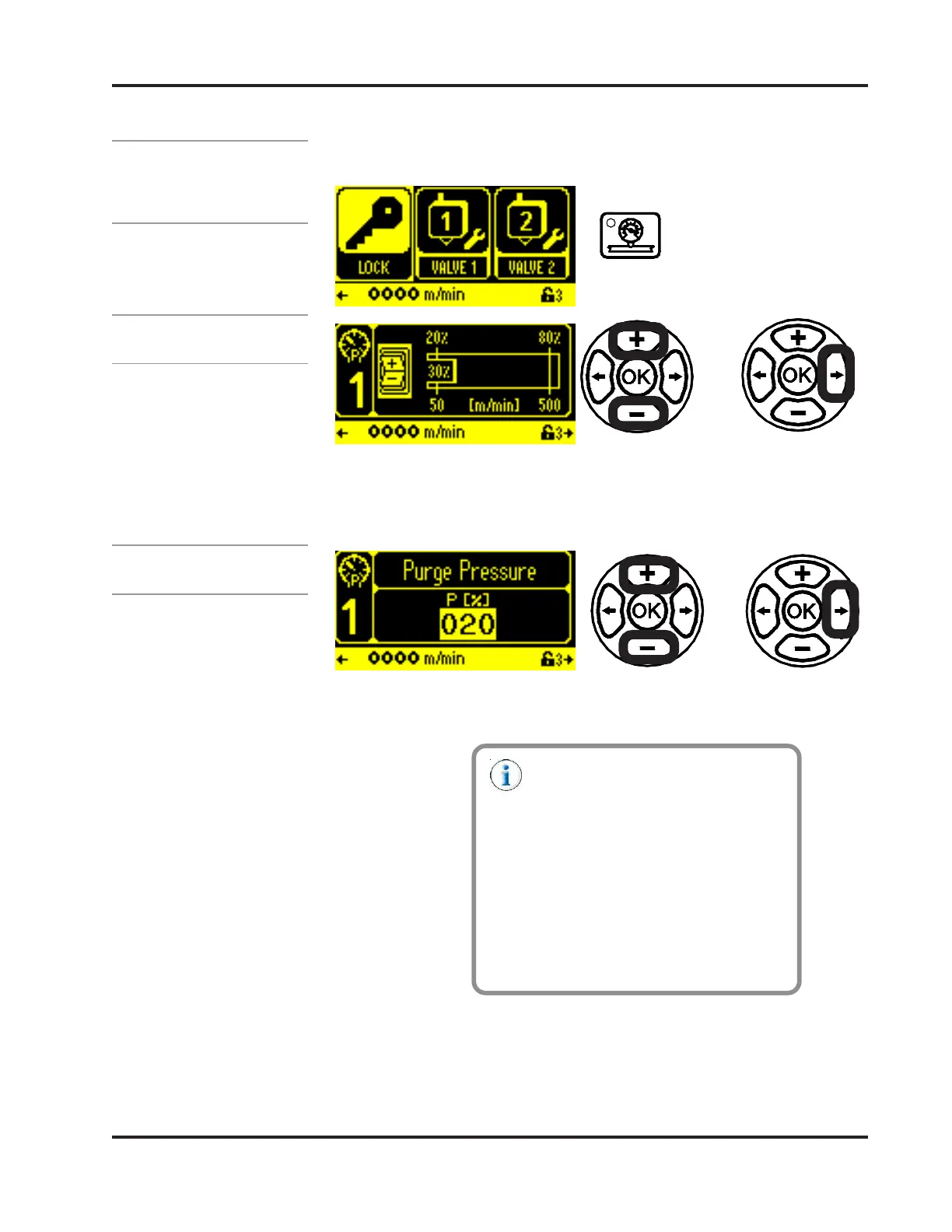

The Pressure Button is used to enter/change the Electronic Pressure
Control (EPC) parameter values.
The number on the left side of the
pressure screen refers to the EPC
number (two EPCs are available on
some models of the MCP-4 Control
Unit. See the Parts List Section for
details). The second EPC is the 0-10
Volt output for speed tracking. Both
EPCs are programmed in the same
way; just be certain the desired EPC
number appears on the screen before
programming. To switch between
EPCs, press the Pressure Button until
the desired EPC number appears.
Pressure Offset ValuePressure Offset Value
Pressure Offset ValuePressure Offset Value
Pressure Offset Value - Used to increase/decrease the current pressure.
The Pressure Offset is used to do minor pressure adjustments instantly. It
does not change the pressure table profile.
Pressure Offset Value
Purge Pressure %
(All Applications)
Purge PressurePurge Pressure
Purge PressurePurge Pressure
Purge Pressure - The pressure setting when the machine is at zero speed.
(All Applications)
Increase
Decrease
To Next Page
