4-5Valco Cincinnati, Inc.
MC075 - MCP-4 Control Unit Section 4 - Programming

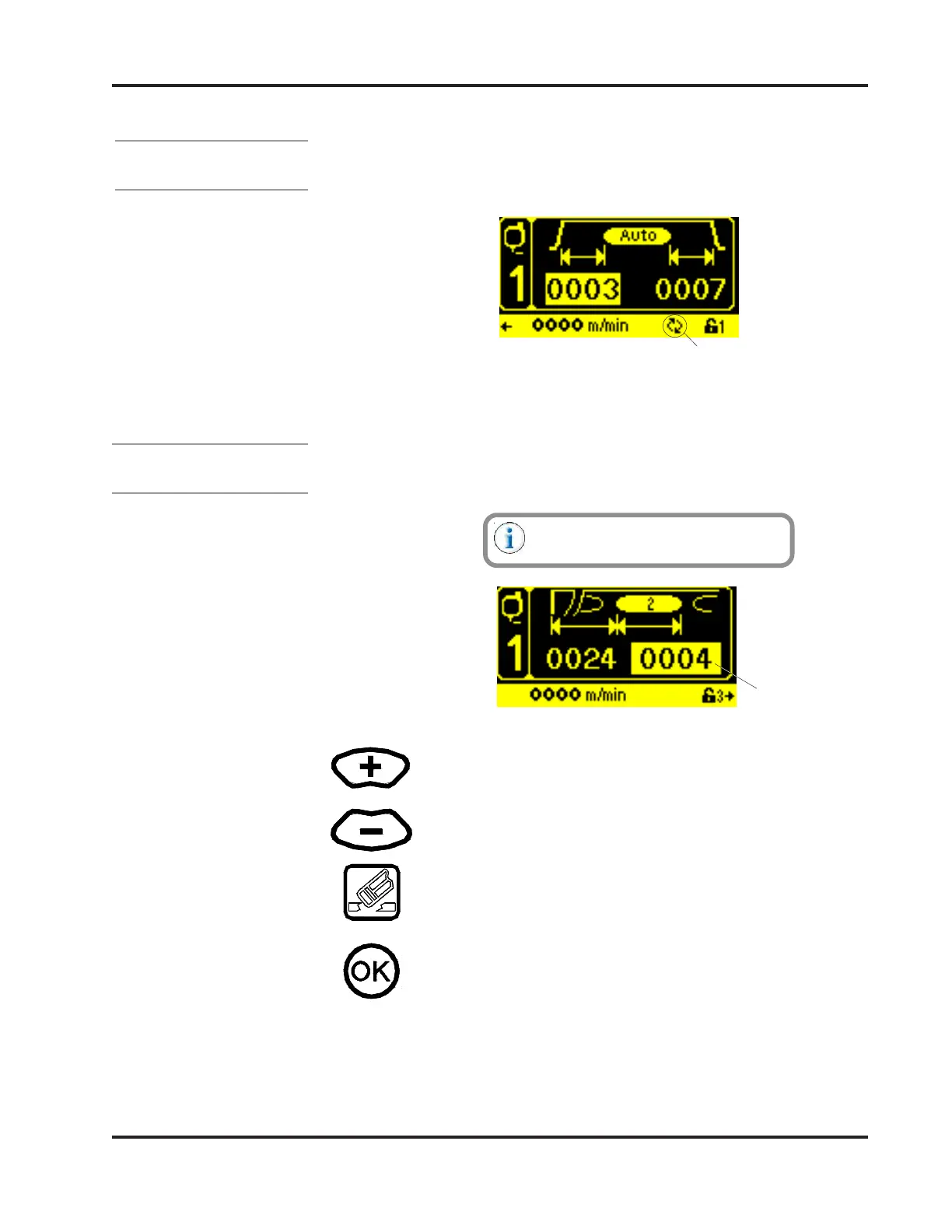

The Edit Buttons
There are 4 Edit Buttons: the Plus Button, the Minus Button, the Erase
Button, and the OK Button. These Buttons are used to change/enter
information.
You can only change a value when it is
highlighted (see Figure 4-5).
Highlighted
(Editable) Value
Figure 4-5. Highlighted Value
Plus Button - Pressing the Plus Button allows you to increase
the value of the input.
Minus Button - Pressing the Minus Button allows you to
decrease the value of the input.
Erase Button - Pressing the Erase Button allows you to return to
the factory default settings. Holding the Erase Button longer
than five seconds will change all pattern settings to “0.”
OK Button - Pressing the OK Button opens and closes the
thumbwheel control. It also “opens” highlighted menu screens
for editing (see example next page).
Flash Memory Storage
The symbol consisting of two arrows in a circular pattern indicates that a
value has been changed but the change is not yet stored in the flash
memory (see Figure 4-4).
Change made but not yet
stored in flash memory.
Figure 4-4. The “Storing Information” Symbol
