4-9Valco Cincinnati, Inc.
MC075 - MCP-4 Control Unit Section 4 - Programming
Encoder
Encoder Encoder
Encoder Encoder

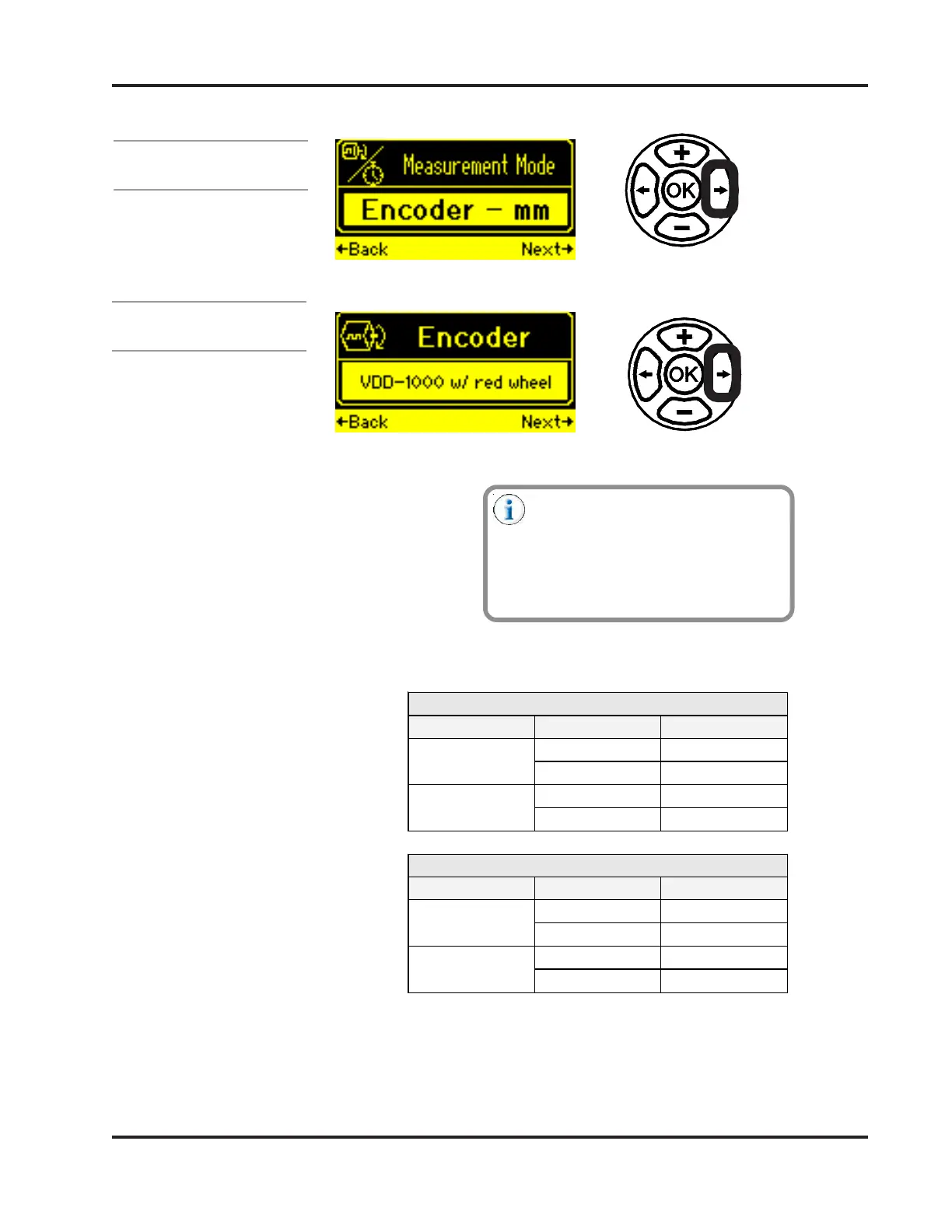

Encoder - Set the encoder type.
If the Wizard does not list the encoder
your system uses, select “other.” The
ratio compensation settings will be
entered at a later time using the
Encoder Menu Screen (discussed in
this Section under “Encoder Menu
Screen”).
Measurement Mode
Measurement Mode Measurement Mode
Measurement Mode Measurement Mode
Measurement Mode - Set the units to Inch or Millimeter.
(Corrugated, Folding Carton,
Envelope, Packaging, Core
Winding, and Others)
(Corrugated, Folding Carton,
Envelope, Packaging, Core
Winding, and Others)
Red Encoder Wheel
Pulses Setup Circumference
Metric 250 mm
1000
Imperial 9.84 inches
Metric 250 mm
500
Imperial 9.84 inches
Black Encoder Wheel
Pulses Setup Circumference
Metric 254 mm
1000
Imperial 10.0 inches
Metric 254 mm
500
Imperial 10.0 inches
