MC075 - MCP-4 Control Unit Section 4 - Programming

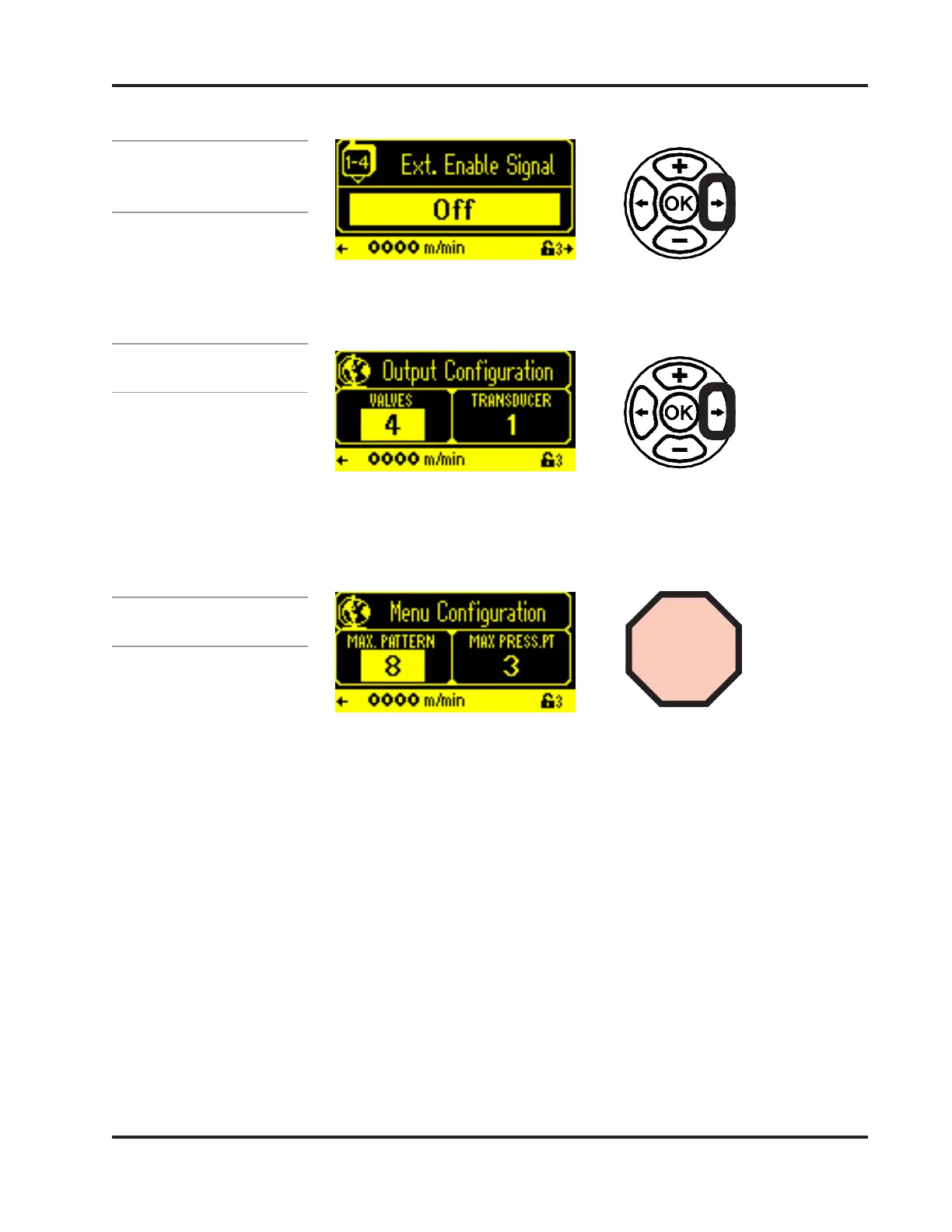

External Enable Signal - External Enable Signal -
External Enable Signal - External Enable Signal -
External Enable Signal - (This was also known as “web break detection.”)
When enabled, this function uses Scanner #4 to enable and disable gluing.
Output Configuration--Valves - Output Configuration--Valves -
Output Configuration--Valves - Output Configuration--Valves -
Output Configuration--Valves - Set the number of valves being used. Up to
four valves (channels) are available.
Output Configuration--Transducer- Output Configuration--Transducer-
Output Configuration--Transducer- Output Configuration--Transducer-
Output Configuration--Transducer- Set the number of transducers being
used. Up to two are available.
Menu Configuration--Maximum Patterns - Menu Configuration--Maximum Patterns -
Menu Configuration--Maximum Patterns - Menu Configuration--Maximum Patterns -
Menu Configuration--Maximum Patterns - Set the number of patterns being
used. Up to ten patterns are available.
Menu Configuration--Maximum Pressure Points - Menu Configuration--Maximum Pressure Points -
Menu Configuration--Maximum Pressure Points - Menu Configuration--Maximum Pressure Points -
Menu Configuration--Maximum Pressure Points - Set the number of
pressure points being used, from two to four.
External Enable
Signal
Output Configuration
Menu Configuration
(All Applications)
(All Applications)
(All Applications)
To Next Page
