8-9Valco Cincinnati, Inc.

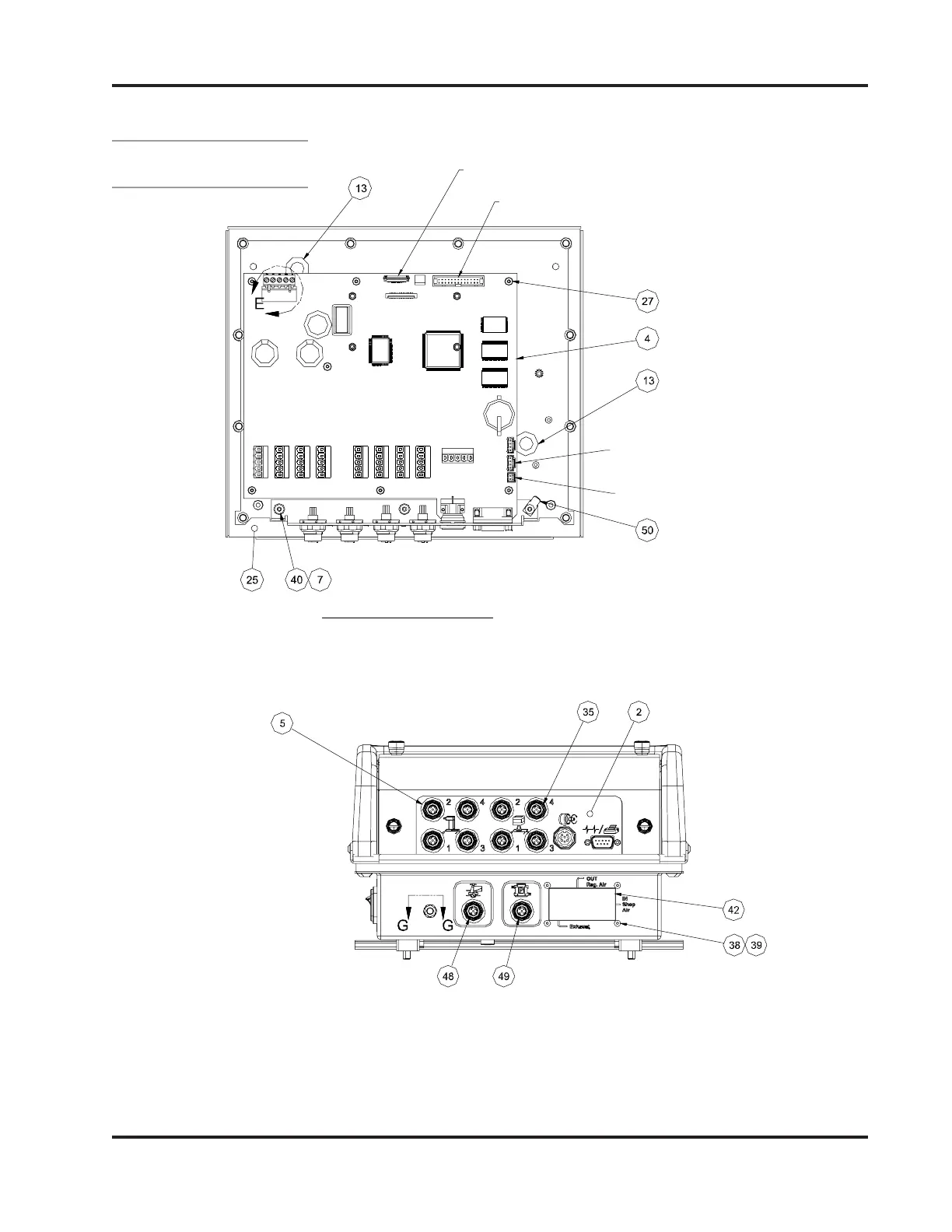

Section 8 - Part Number List

MC075 - MCP-4 Control Unit

MCP-4P Unit - 115/230VAC

(074xx040) - Continued

GASKET TO BE FLUSH

WITH BOTTOM OF

MOUNTING PANEL

CONNECT PUMP CABLE (ITEM #49)

CONNECT OVERLAY RIBBON CABLE (ITEM #41)

CONNECT DISPLAY RIBBON CABLE (ITEM#68)

"X"

CONNECT EXTERNAL EPC CABLE (ITEM #48)

VIEW SHOWN WITHOUT COVER
