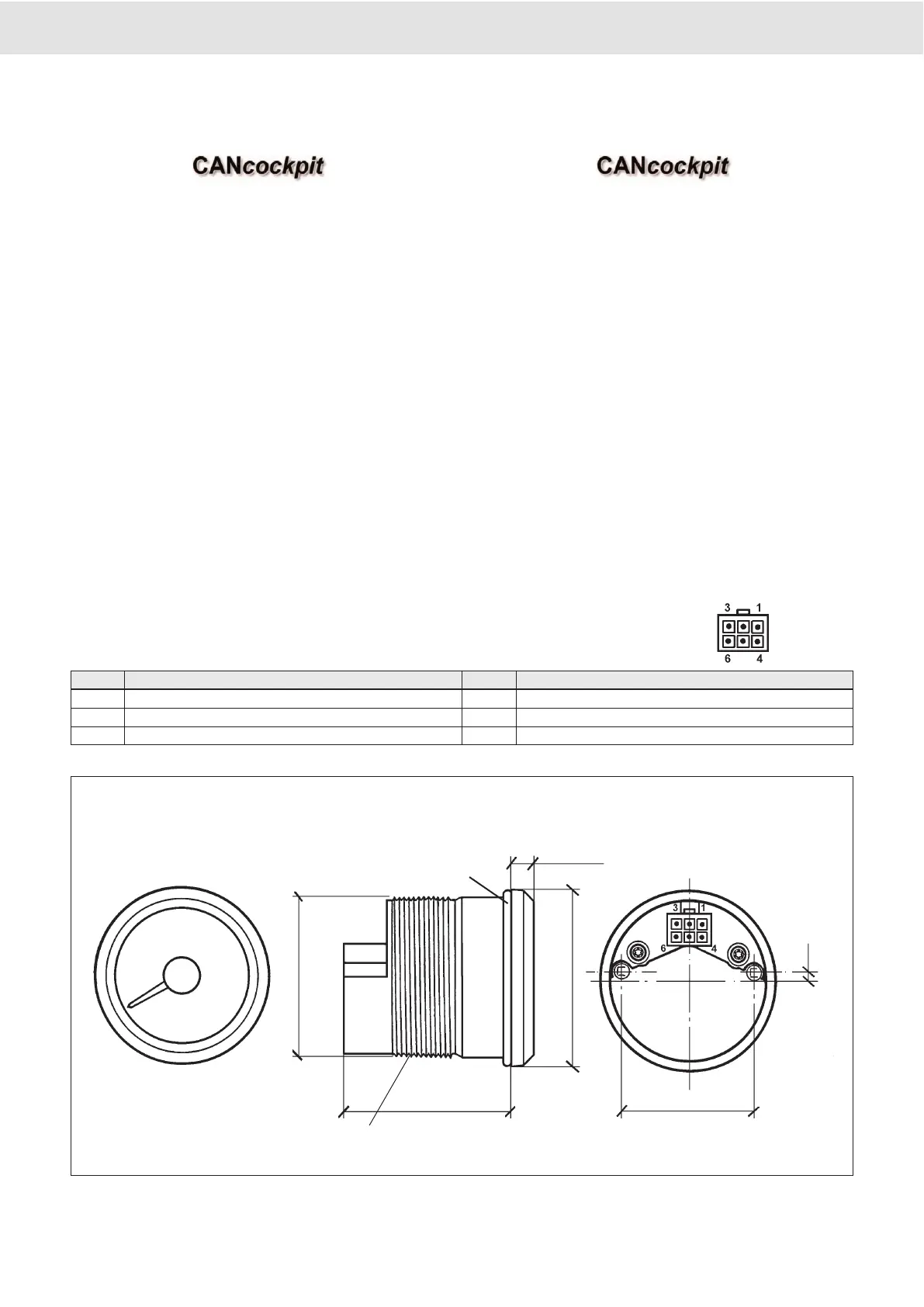

Anschlussbelegung / Terminal connection:
AMP MATE-N-LOCK 6 Pins
Versorgungsspannung: 10,5 - 32V DC von Master
Stromaufnahme: 60mA ± 10%
EMV: 2006/28/EC (2004/104/EC),
ISO 7637-1-2, SAEJ 1810
Schwingungsfestigkeit: 2g, 8-300 Hz, 1 oct./min
Dauerschock: 25g, 1 Hz, 6 ms
Schutzart: IP65, IEC 60529 vorne
IP30, IEC 60529 hinten
Betriebstemperatur: – 40°C bis + 85 °C
Lagertemperatur: – 40°C bis + 85 °C
Power supply: 10.5 - 32V DC from Master
Current consumption: 60mA ± 10%
EMC: 2006/28/EC (2004/104/EC),
ISO 7637-1-2, SAEJ 1810
Vibration resistance: 2g, 8-300 Hz, 1 oct./min
Physical shock: 25g, 1 Hz, 6 ms
Protection: IP65, IEC 60529 front side
IP30, IEC 60529 backside
Operating temperature: – 40°C to + 85 °C
Storage temperature: – 40°C to + 85 °C
Technische Daten: Technical Data:
Geräteanschluss
Gauge connection
Analoge Anzeigegeräte
in verschiedenen Versionen
(Gehäuse Ø 52 / 80 / 100 mm)
Various versions of
analog indication gauges
(Housing dia. 52 / 80 / 100 mm)
Gewinde für Schraubring.
Thread for clamp ring.
3
Dichtring
Sealing ring
54,3
43,6
Ø 52
Ø 57,6 ± 0,2
7,4 ± 0,2
Beispiel: Gehäuse Ø 52 mm
Abmaße (mm)
Exemple: housing dia. 52 mm
Dimensions (mm)
Slave-Geräte
Systemkomponenten
Satellite Gauges
System Components
Pin Beschreibung / Description Pin Beschreibung / Description
1 Data 4 Data
2 Masse / GND 5 Masse / GND
3 Versorgungsspannung Slave / Supply Satellite 6 Versorgungsspannung Slave / Supply Satellite
Technische Änderungen vorbehalten Technical details subject to change
(1-4) 3TU00-0736-5304620 0509
