MONTAGEANLEITUNG / INSTALLATION INSTRUCTIONS
TU00-0777-5107120
TU00-0777-5107120
1
03/09

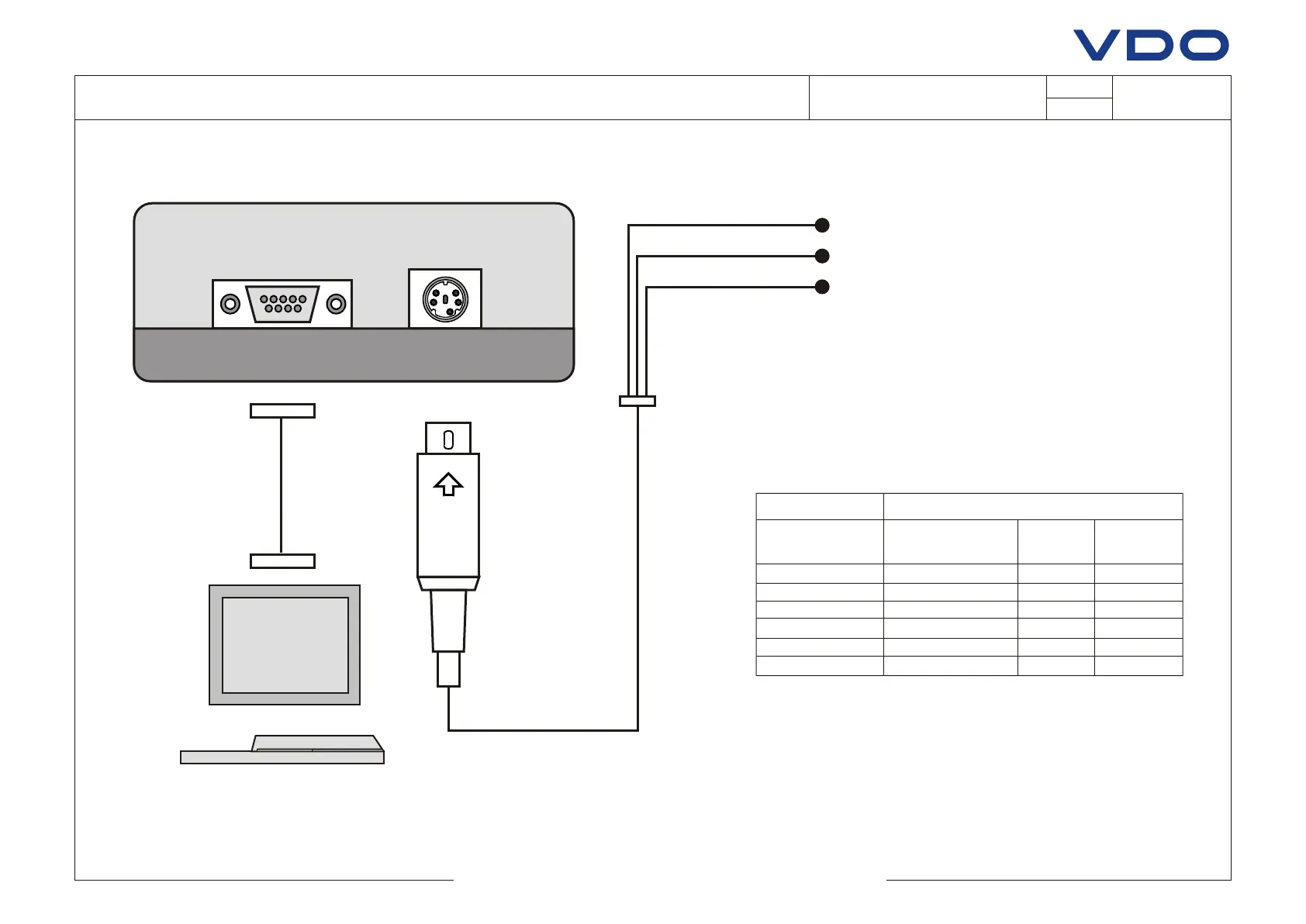

K-line Adapter
Technische Änderungen vorbehalten - Technical details subject to change
K-line Adapter
9 pol. Sub D
Gelb / yellow = Diagnoseleitung / Diagnosis line
Rot + grün / red + green = + 12-24V
Blau + schwarz / blue + black = Masse / Ground
PC with
Serial Port
RS 232
Produkt K-Line +12/24V Ground (-)
AGB II, AGBIII 23 1 14
CANcockpit 8 1+17 2
CB 300 20 1+3 2
CB 500 15 11+13 3
E-Gas Compact 23 1 14
E-Gas II 44 28 1
Anschluß Nr. / Connector no.
Produkt/Product
Diagnoseleitung/
Diagnosis line +12/24V Ground (-)
AGB II, AGBIII 23 1 14
CANcockpit 8 1+17 2
CB 300 20 1+3 2
CB 500 15 11+13 3
E-Gas Compact 23 1 14
E-Gas II 44 28 1
Anschluß Nr. / Connector no.
X12-397-041-601, X12-397-041-001, X12-397-046-001,
X11-602-000-009, X11-602-000-010
