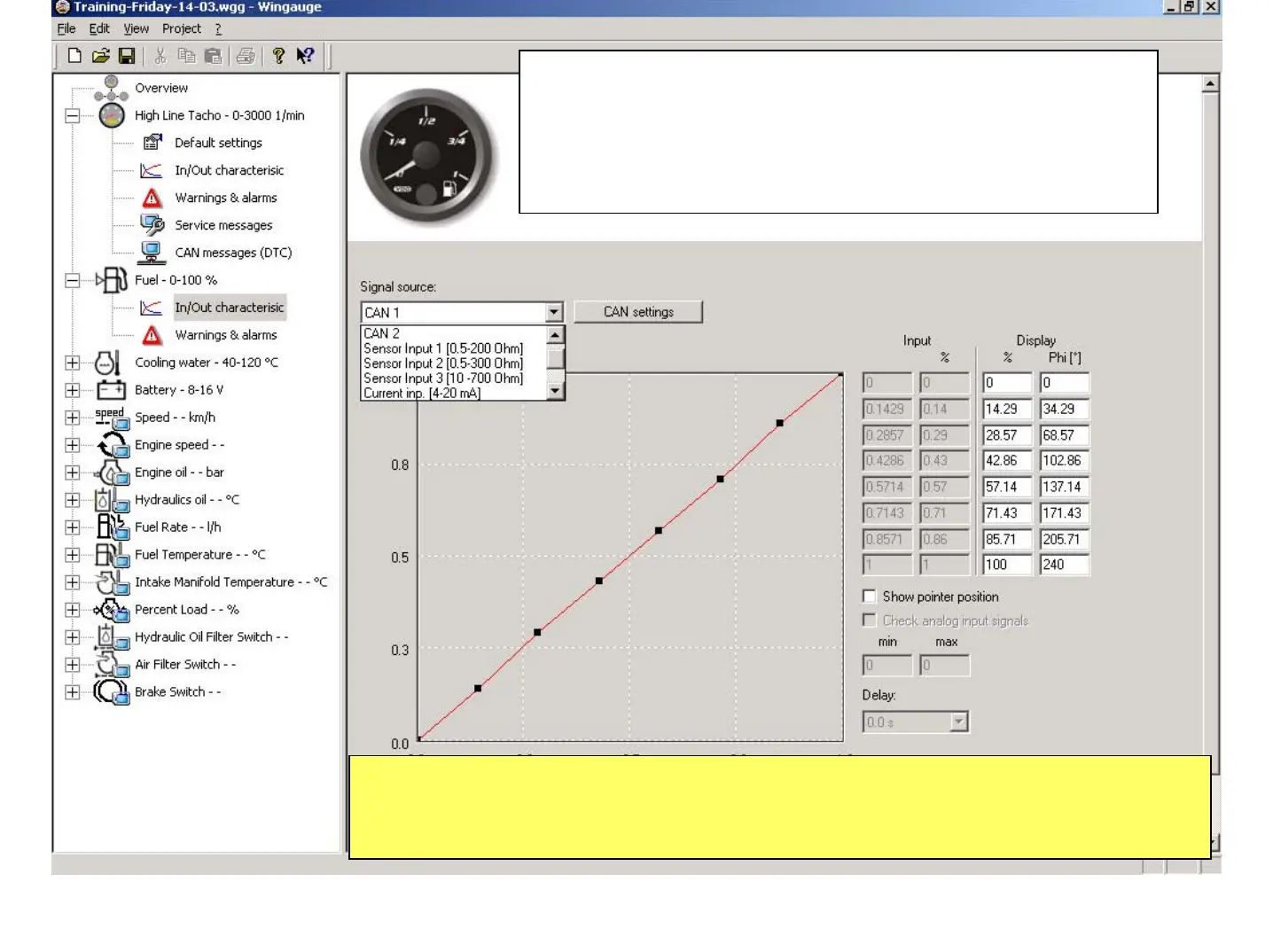

Master, Satellite and Display may receive the required
information, from the Sensors directly connected to the
Master Instrument. The differentiation is amongst Resistor-,
Current-, Voltage and Frequency Inputs. CAN1 and CAN2
may deliver information from other Sensors however.
All Satellites, Master or Display being upsetted in the previous configuration
process have in their configuration "CAN1" defined as the preferred Signal Source.
The next steps will show how to connect the right Sensors to the correct Satellite.
June 2009
Training WinGauge Software
page 32
