139 264kbit/s)
2^15 -1 (32 767-bit pattern primarily intended for error and jitter measurements at bit rates of 1544, 2048,
6312, 8448, 32 064 and 44 736kbit/s
2^11 -1 (2047-bit pattern primarily intended for error and jitter measurements on circuits operating at bit rates
of 64kbit/s and N 64kbit/s)
Fixed: All 0s or All 1s
User Defined pattern: Length depends on size of frame
Inversion: Normal or inverted

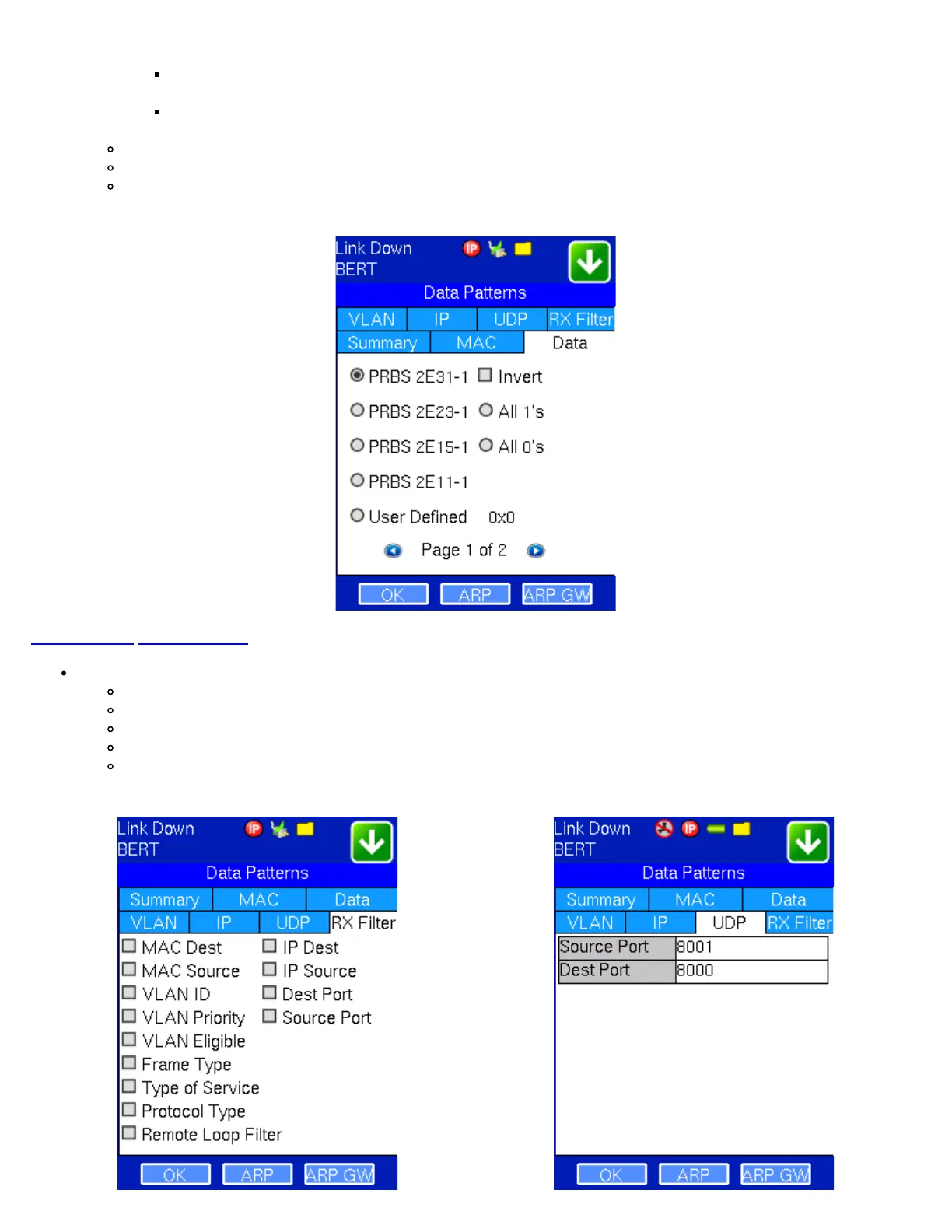

BERT Setup - PRBS Patterns
Go back to top Go back to ToC
RX Filter Tab: Allows the user to filter incoming streams by:
MAC Destination address
MAC Source address
VLAN ID
IP Destination address
IP Source address
BERT Setup - RX Filter Selection BERT Setup - UDP/TCP
