In Order: Number of LBR received in order
Out of Order: Number of LBR received out of order
No Match: The loopback transaction ID between the LBM and LBR do not match

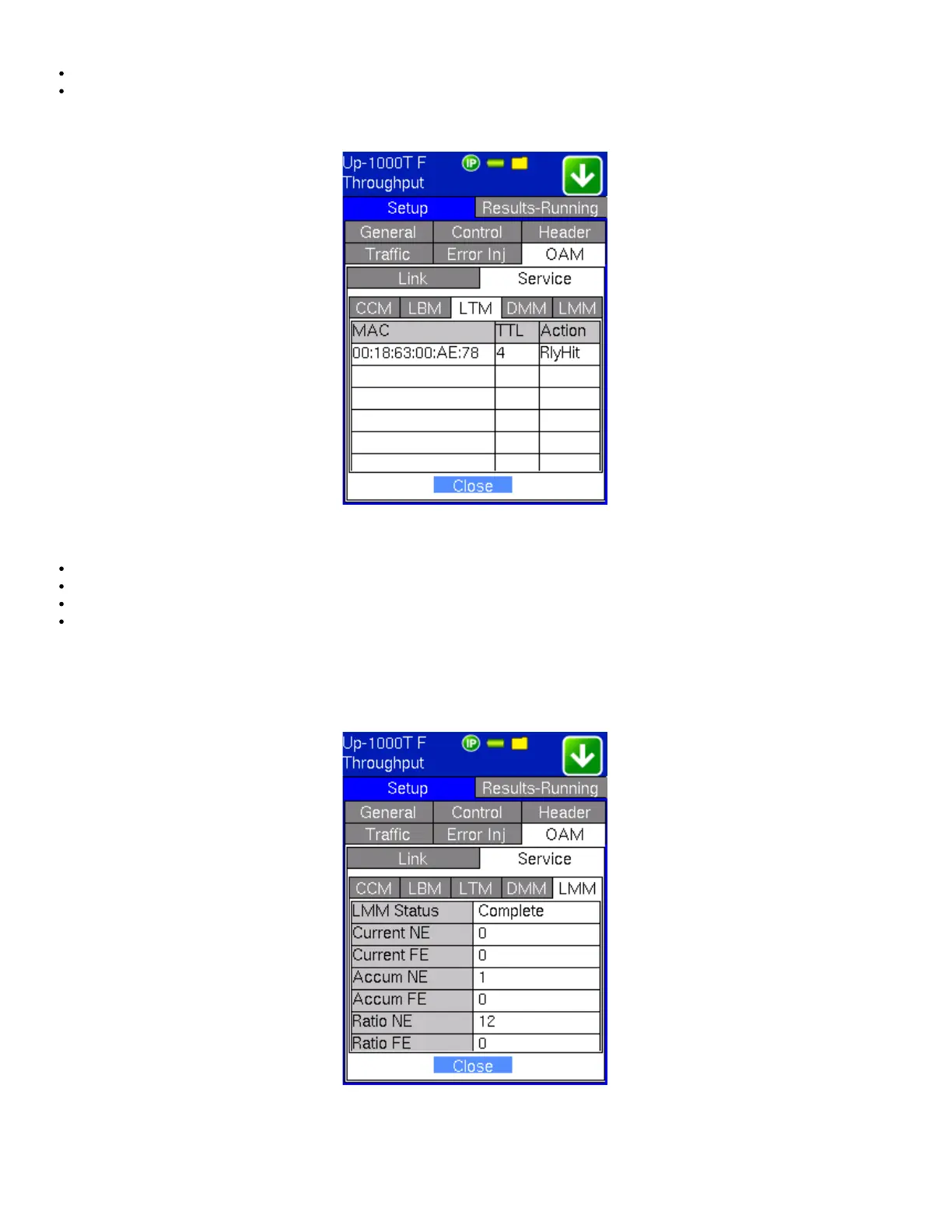

OAM - Service - LTM
OAM LTM Results
Action: RlyHit indicates that the LTM has reached the destination MAC/MEP (i.e., final point)
MAC: MAC address of the responder
TTL: TTL field on the response, indicated how many hops have been traversed
Flags: If set, indicates that only MAC addresses learned in a Bridge's Filtering Database, and not information saved in the MIP
CCM Database, is to be used to determine the Egress Port
Y.1731 Performance Management Functions Results
OAM - Service - LMM
NE=Near End device
FD=Far-End device
OAM LMM Parameters
TX130M+_e-manual_D07-00-051P_RevD00
