Generates “information” at a programmable interval, IPG, (default 1 sec)
Generates “event” upon changing the QL-TLV followed by “information”
Count message types
Monitor and decode messages on screen
Capture ESMC/SSM messages and output in pcap file for further off-line protocol analysis
Go back to top Go back to ToC
Setup
Mode: The TX130M+ can be set as Master or Slave.
IPG(s): Value can be entered by clicking in the box next to it.
SSM Code: Quality Levels
Once the parameters are set, press Start to start the test.

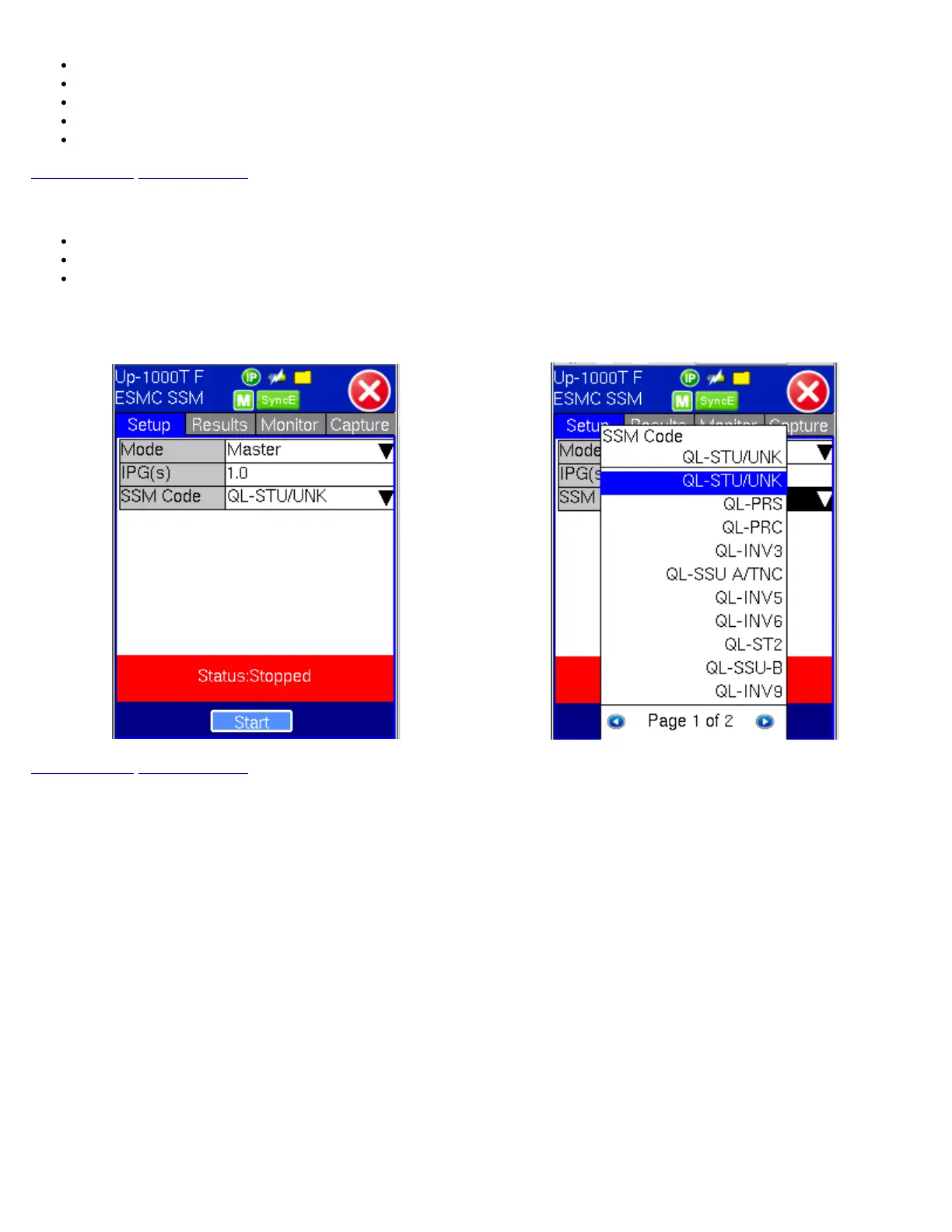

SyncE ESMC SSM Setup SyncE ESMC SSM Setup
Go back to top Go back to ToC
Results
The Results screen shows Total Messages, Event Messages, a list of all the SSM quality levels with the results of the QL
selected in Setup next to it.
SyncE ESMC SSM Results
