Monitor

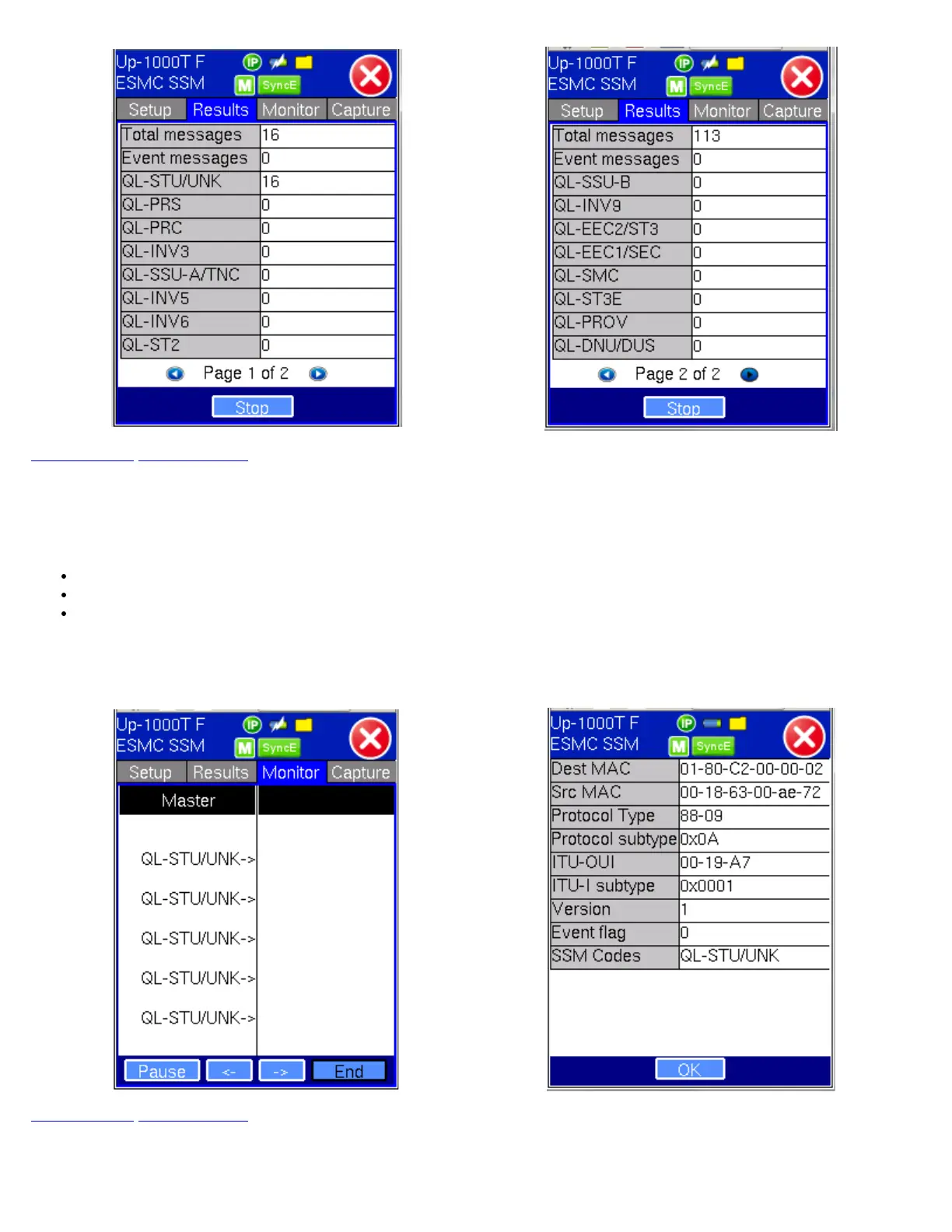

The Tracer shows the messages as they are sent or received. The TX130M+ stores up to 2000 messages.
There are four function keys:
Pause/Continue - to pause or continue the tracer.
-> & <- - in Pause mode, use the key to page up or page down.
End - in Pause mode, use End key to jump to the end of the trace.
To view decoded messages, press Pause to pause the protocol tracer and tap on the desired message to view decoded
message details.
SyncE ESMC SSM Monitor SyncE ESMC SSM Protocol Decode
Go back to top Go back to ToC
Capture
Press Start to Capture Packets. The number of captured packet results is displayed.
