Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual

113

5.13.7 Optional Customer Fuel Sensor Input

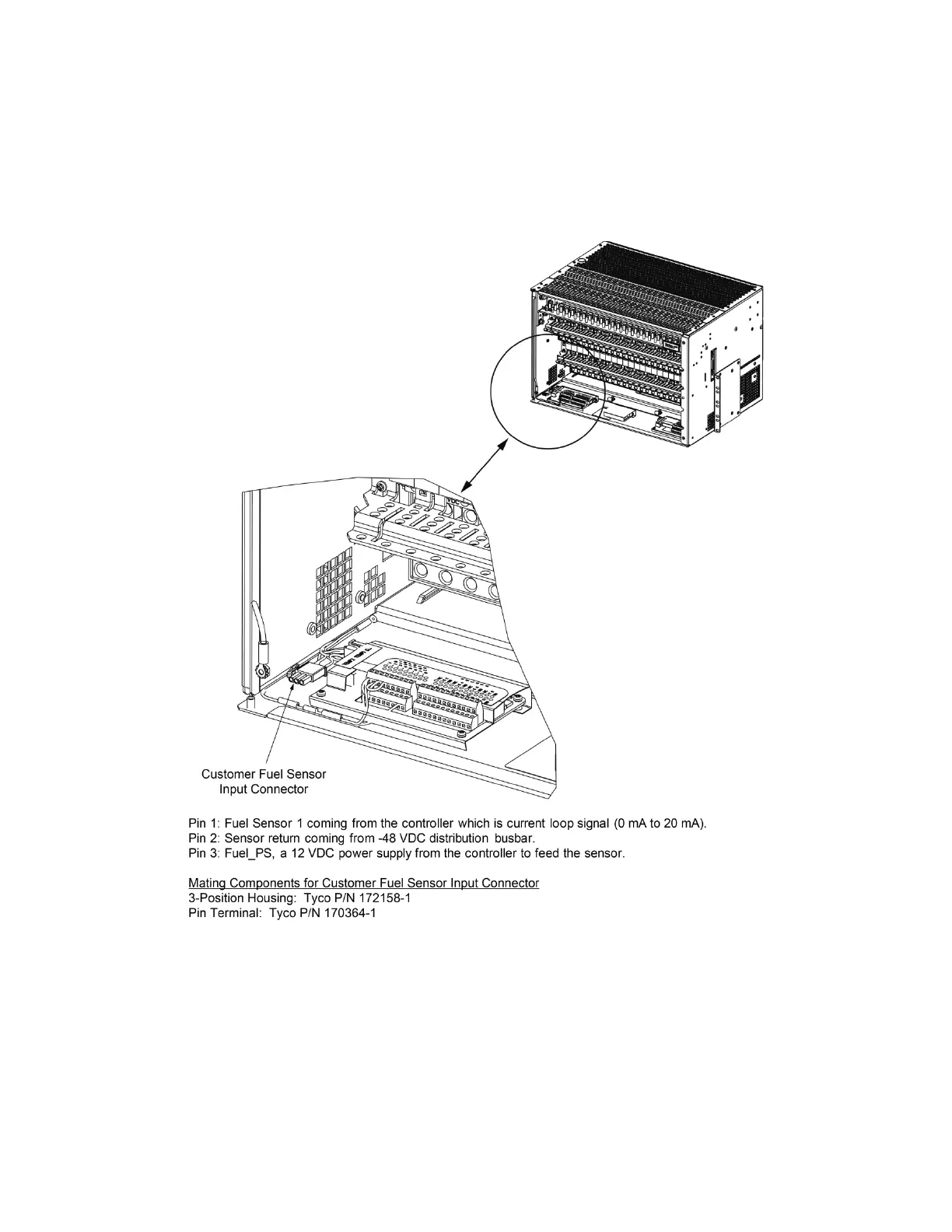

A customer fuel sensor input connector is located in the wire harness in front of the bottom row distribution panel. See Figure 5.27 for

location and connection details.

Figure 5.27 Customer Fuel Sensor Input
