Vertiv NetSure 5100 Series Installation Manual

Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
118
5.16 Optional Transient Voltage Surge Suppressor (TVSS) Device Ground
Connection
Connect cable P/N 565296 (provided with P/N 565281 TVSS device) from the TVSS position on the distribution panel to the return
bar. Refer to Figure 5.31, Figure 5.32, and Figure 5.33.

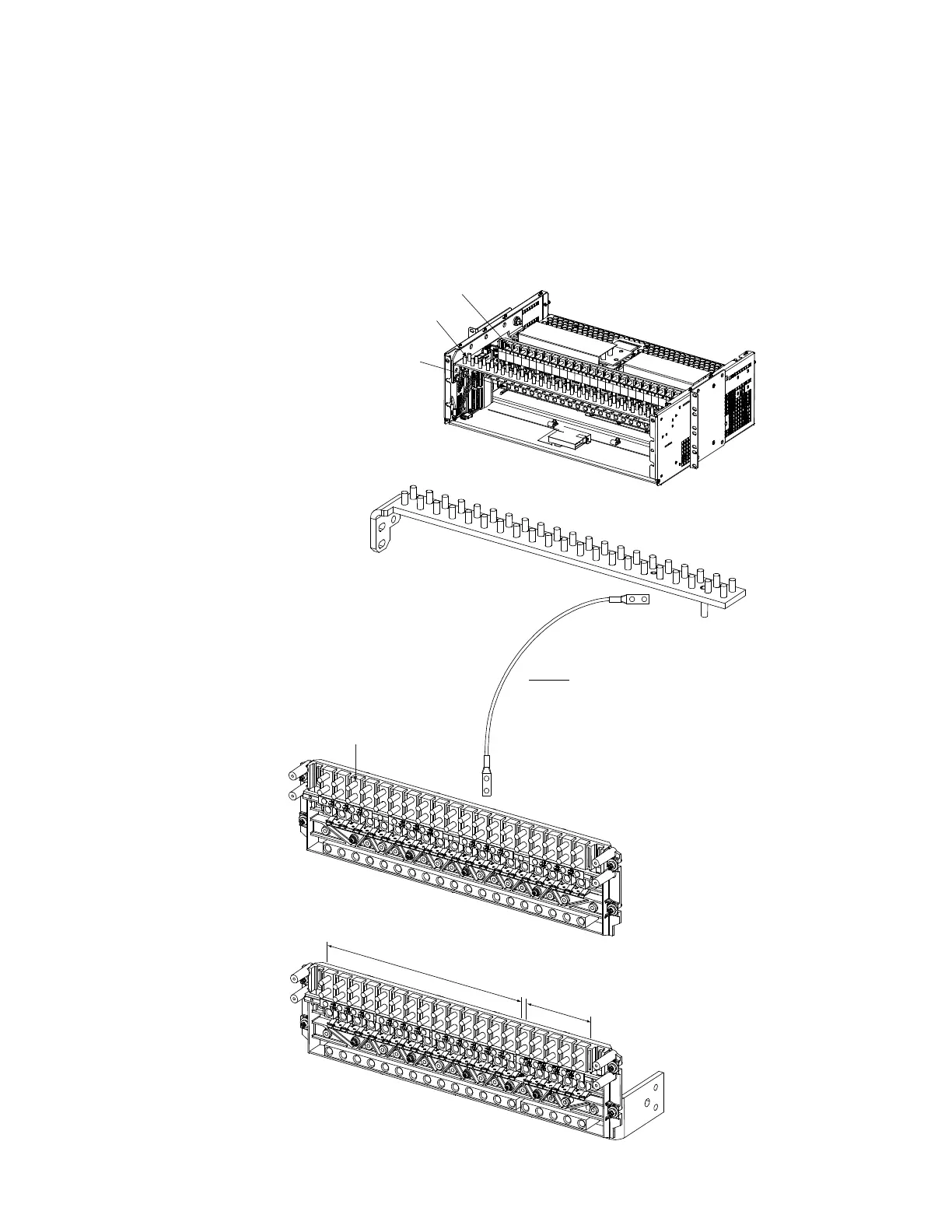

Figure 5.31 582137100 List 20, List 25 Distribution Cabinet Optional Transient Voltage Surge Suppressor (TVSS) Device
Ground Connection
Distribution Row
Load Return Bus
Load Bus
Components removed in
illustration for clarity.
Distribution rows shown for sample only.
Other configurations available.
Front
Load return busbar can
be rotated 90 degrees
(to route wiring through
top of cabinet). When
rotated, cable lugs will
be above top of cabinet.
Load Return Bus
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Load Connections (-48 VDC)
when Distribution Device Installed
or
TVSS (+Ground) Connection
when TVSS Device Installed
Cable P/N 565296 Provided
with P/N 565281 TVSS Device
(Connect from TVSS Position on
Distribution Panel to Return Bar)
-48 VDC Battery
DANGER
Ensure leads are connected to
proper polarity for the device
installed, either a Distribution
Device (load lead connection)
or a TVSS Device (ground
connection).
*
Load Connections (-48 VDC)
when Distribution Device Installed
or
TVSS (+Ground) Connection
when TVSS Device Installed
