Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual

142

5.18 Connections to an Optional List 60 Hybrid Connection Cabinet

WARNING! Observe proper polarity when making output connections.

Refer to Figure 5.65 for terminal location and torque information.

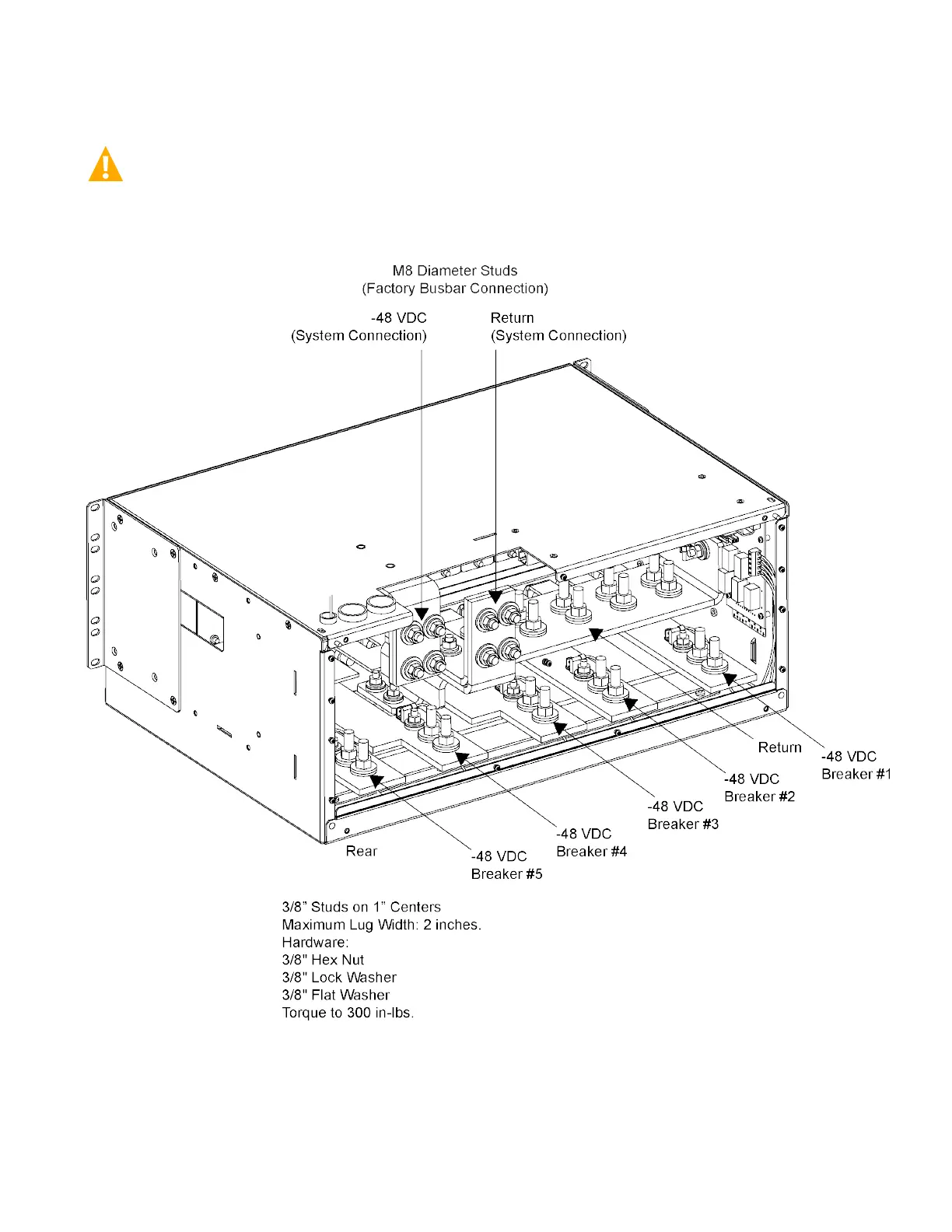

Figure 5.65 Connections to an Optional List 60 Hybrid Connection Cabinet
