Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
111
5.13.6 Circuit Breaker Alarm and Shunt Monitoring Connections to an Optional List 60
Hybrid Connection Cabinet
Circuit Breaker Alarm Connections
Refer to Figure 5.25 for connection details. Torque connections as shown in the illustration.

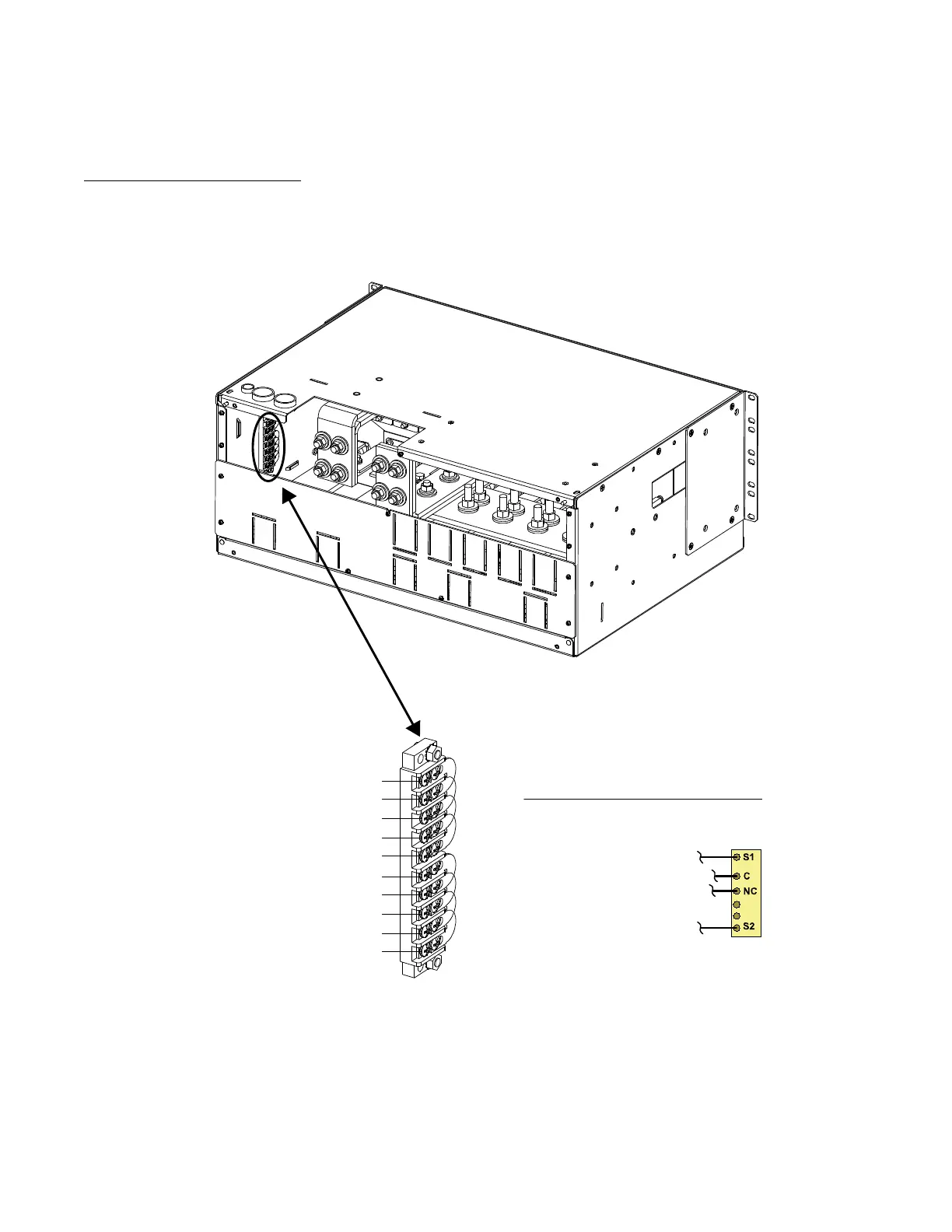

Figure 5.25 Circuit Breaker Alarm Connections to an Optional List 60 Hybrid Connection Cabinet
Circuit B
reaker Shunt Leads
P/N 520787 Provided for
Each Circuit Breaker
Circuit Breaker Alarm Leads
P/N RPM2300007/1
Provided for Each
Circuit Breaker
Wire Size Capacity:
24 AWG to 14 AWG.
Recommended Torque:
9 in-lbs.
Breaker #1 Alarm Jumper: Yellow
Breaker #1 Alarm Jumper: Red
Breaker #2 Alarm Jumper: Yellow
Breaker #2 Alarm Jumper: Red
Breaker #3 Alarm Jumper: Yellow
Breaker #3 Alarm Jumper: Red
Breaker #4 Alarm Jumper: Yellow
Breaker #4 Alarm Jumper: Red
Breaker #5 Alarm Jumper: Yellow
Breaker #5 Alarm Jumper: Red
Connects to Alarm Connections
on Back of Circuit Breakers
Shunted Breaker Jumper: Black
Alarm Jumper: Red
Alarm Jumper: Yellow
Shunted Breaker Jumper: Red
Standard Trip B
reaker (
Black Handle)
Electrical Trip Breaker (White Handle)
ALARM WIRING (BREAKERS WITH SHUNTS)
