5.17.4 Load Connections to an Optional GMT Fuse Block
WARNING! Observe proper polarity when making output connections.
Refer to Figure 5.63 if an optional “Bullet Nose Type 6-Position GMT Distribution Fuse Block” is furnished. Torque connections as
shown in the illustration.

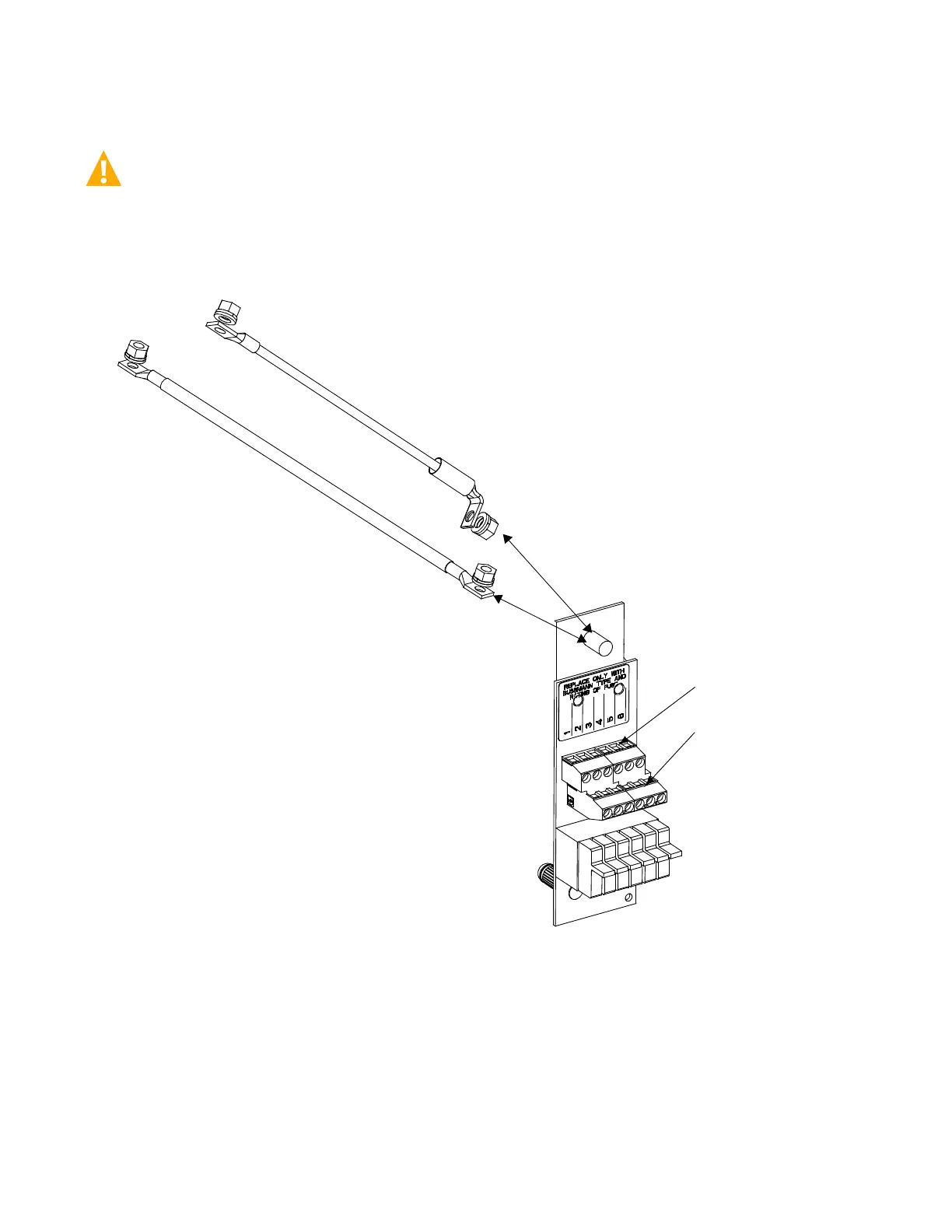

Figure 5.63 Load Connections to an Optional GMT Fuse Block
Load Return Leads
Load Leads
Wire Size Capacity:
26 AWG to 14 AWG.
Recommended Torque:
4.5 in-lbs.
1/4-20 Hardware.
Torque to 75 in-lbs.
Part of P/N 549017
Part of P/N 559737
Part of P/N 549017 and 559737
OR
P/N 559737, when used in the
bottom row of a 2-row system
(List 21, List 26), the return
busbars must be rotated to
vertical position.
P/N 549017, when used in the
top row of a 2-row system (List
21, List 26), the return busbars
must be rotated to vertical
position.
